64 Intellex
®
Operating Instructions
Perimeter Violation: (camera name) — Indicates the camera
name.
Image Area — This area of the screen displays a camera im-
age and provides a reference when configuring the filter.
Active Perimeter — Use the following options when config-
uring the target area. This area can be nearly any shape or size.
Restore — Click this button to restore the active zone to
its dimensions when you first accessed this screen.
Clear — Click this button to erase all of the targets in the
active zone, so you can start over again.

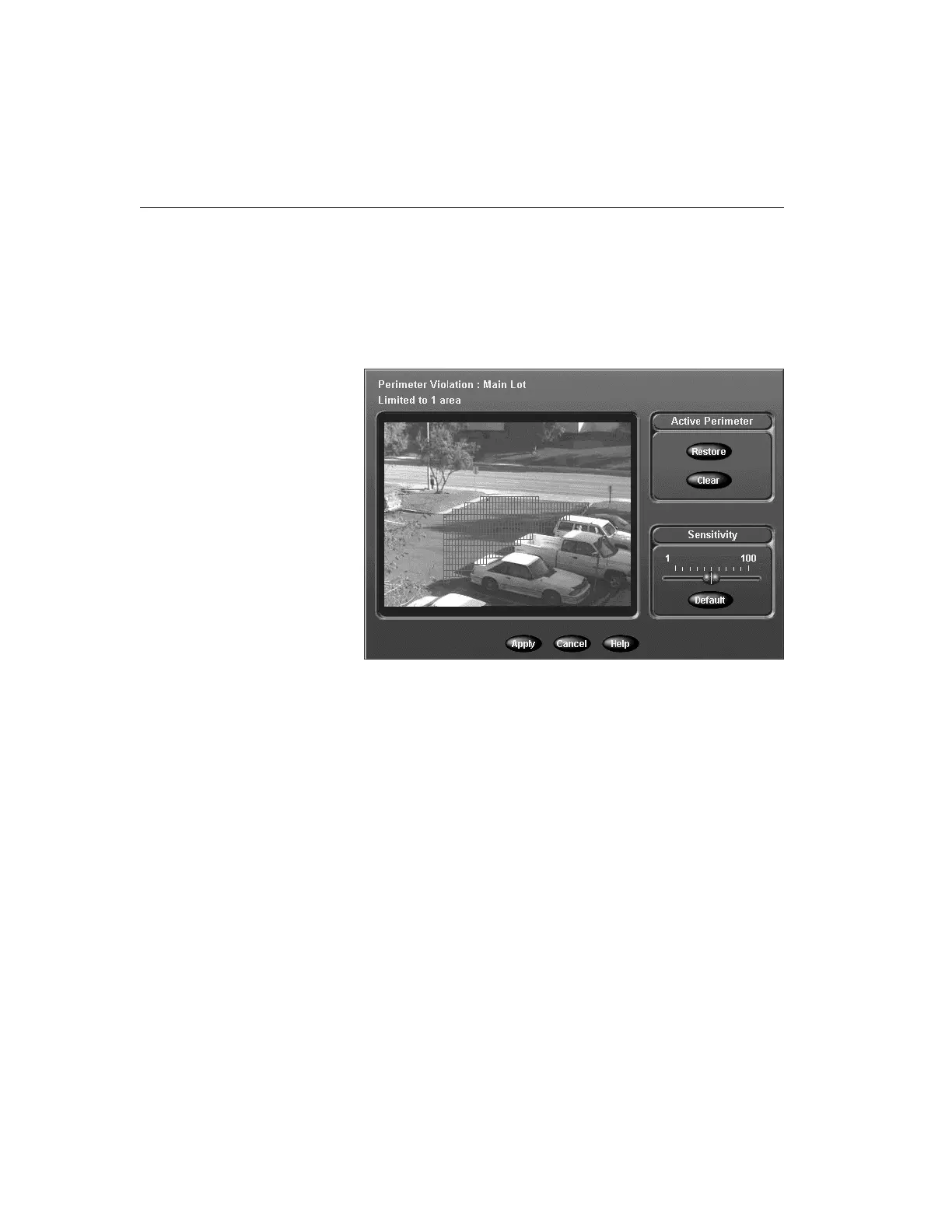

Perimeter Violation Use the Perimeter Violation screen to configure the target area
for the perimeter violation filter. Once configured, the filter
selects video segments with objects crossing into or out of the
target area.
After you select the Perimeter Violation filter and click the
Setup button, the Perimeter Violation screen appears.
