18 Intellex
®
Operating Instructions
3. Archive — This progress bar indicates how much tape re-
cording space has been used and how much is available.
The bar only appears when archiving in the background
(see Archive Operation).
4. Image Database — This progress bar indicates how much
recording space in the image database has been used and
how much is available.
5. Record — This indicator is lit when the unit is recording
images. On the front panel, this indicator is labeled REC.
6. Play — This indicator is lit when the unit is playing back
images. Play changes to Pause when playback is paused.

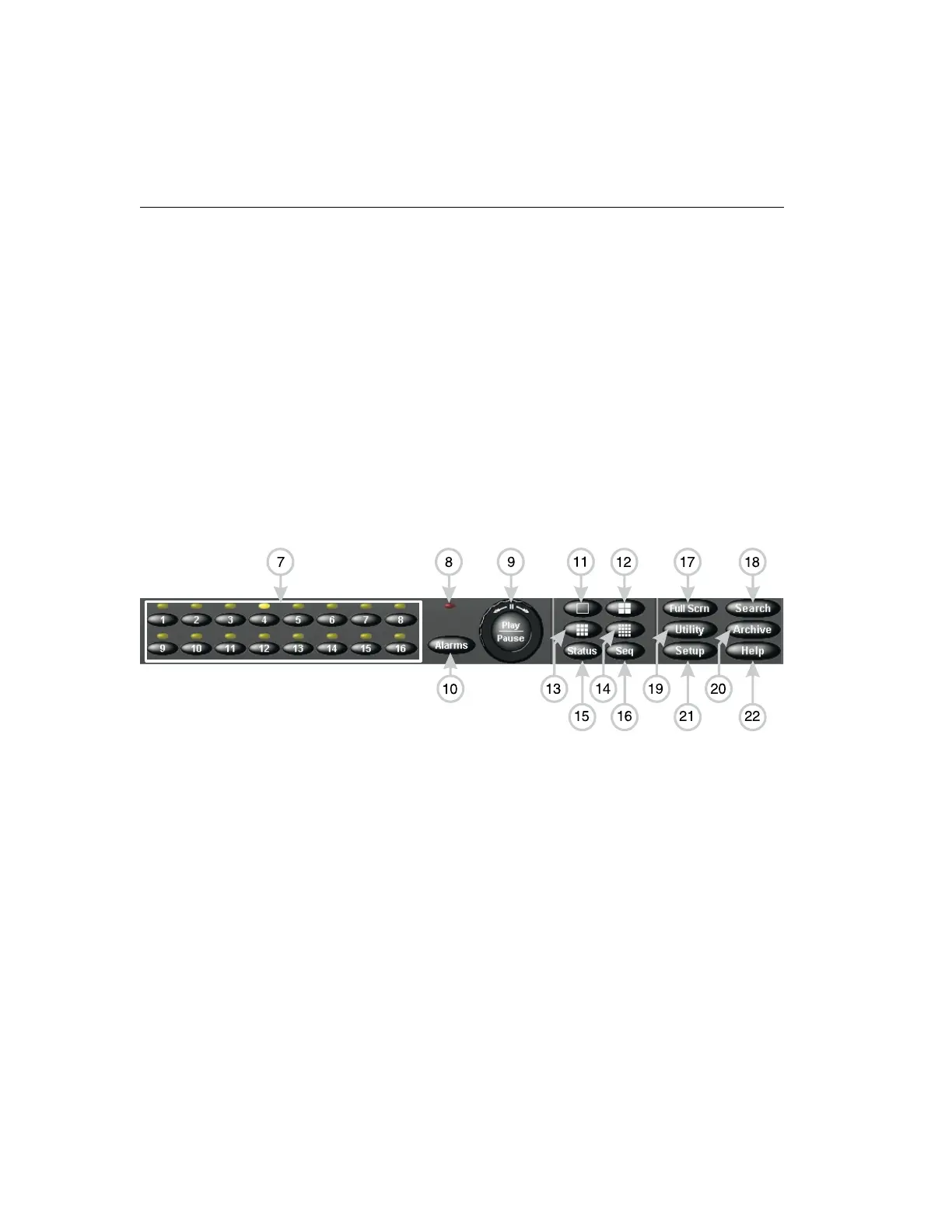

On-screen
Controls and Indicators
7. 1–16 (Cameras) — Click to display a specific camera in
the 1x1 format. The indicator for the displayed camera is
lit.
8. Alarms Indicator — This indicator is lit when alarm events
have occurred, but have not been reviewed. It also blinks
if a notification screen appears.
9. Play/Pause — Controls how images are displayed dur-
ing image playback. You can control play/pause as well
as playback direction and speed. See Chapter 3 — Playback
Operation for more information.
10. Alarms — Click to display the alarm review screen (see
Alarm Review Screen).
Operate the unit using the mouse pointer and the following
on-screen controls:
