Chapter 2 — Basic Live Operation 27
REVIEWING
UNIT STATUS
The information on this screen reflects the camera schedule
settings as well as the general unit configuration settings.
NOTE: You can change a column’s width by dragging the line
between column headers to the right or the left. The
unit does not save the column width settings when you
access this screen again.
The status screen displays the following information:
Status — Lists the connect and recording status for each
camera.
The first icon indicates if the camera is connected to the unit. If
an ‘X’ is displayed over an icon, the camera is not connected.
The second icon indicates if the camera is being recorded. If an
‘X’ is displayed over an icon, the camera is not being recorded.
The REC indicator on the front panel and the Record indica-
tor on the main screen are lit when the unit is recording at
least one camera.
Camera — Lists the name for each camera, sorted by camera
number (1–16). Camera names are configured in the Cameras
portion of the Setup Options screen.

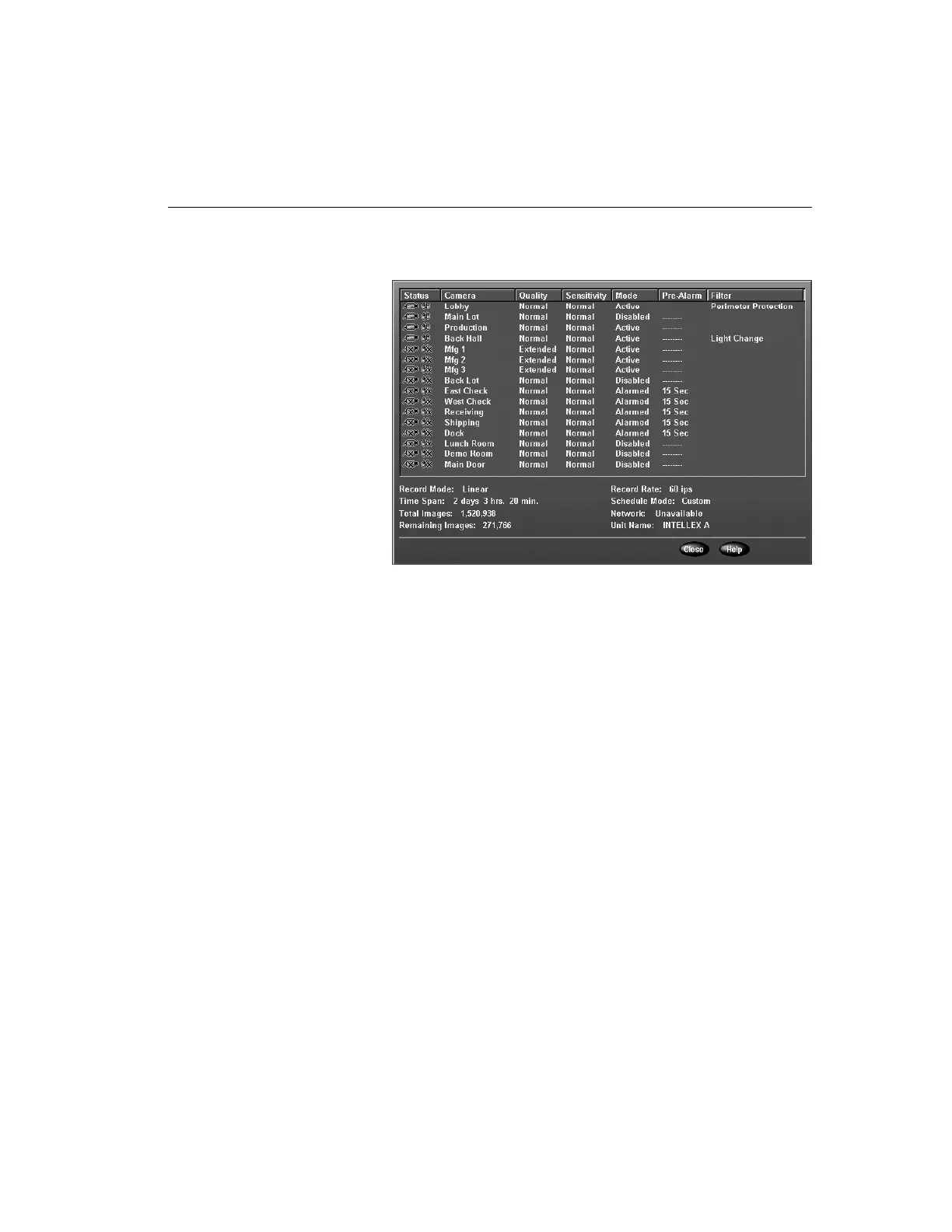

At any time, you can review unit and camera status. When you
press or click the Status button, the following screen appears:
