Chapter 2 — Basic Live Operation 17
INTELLEX

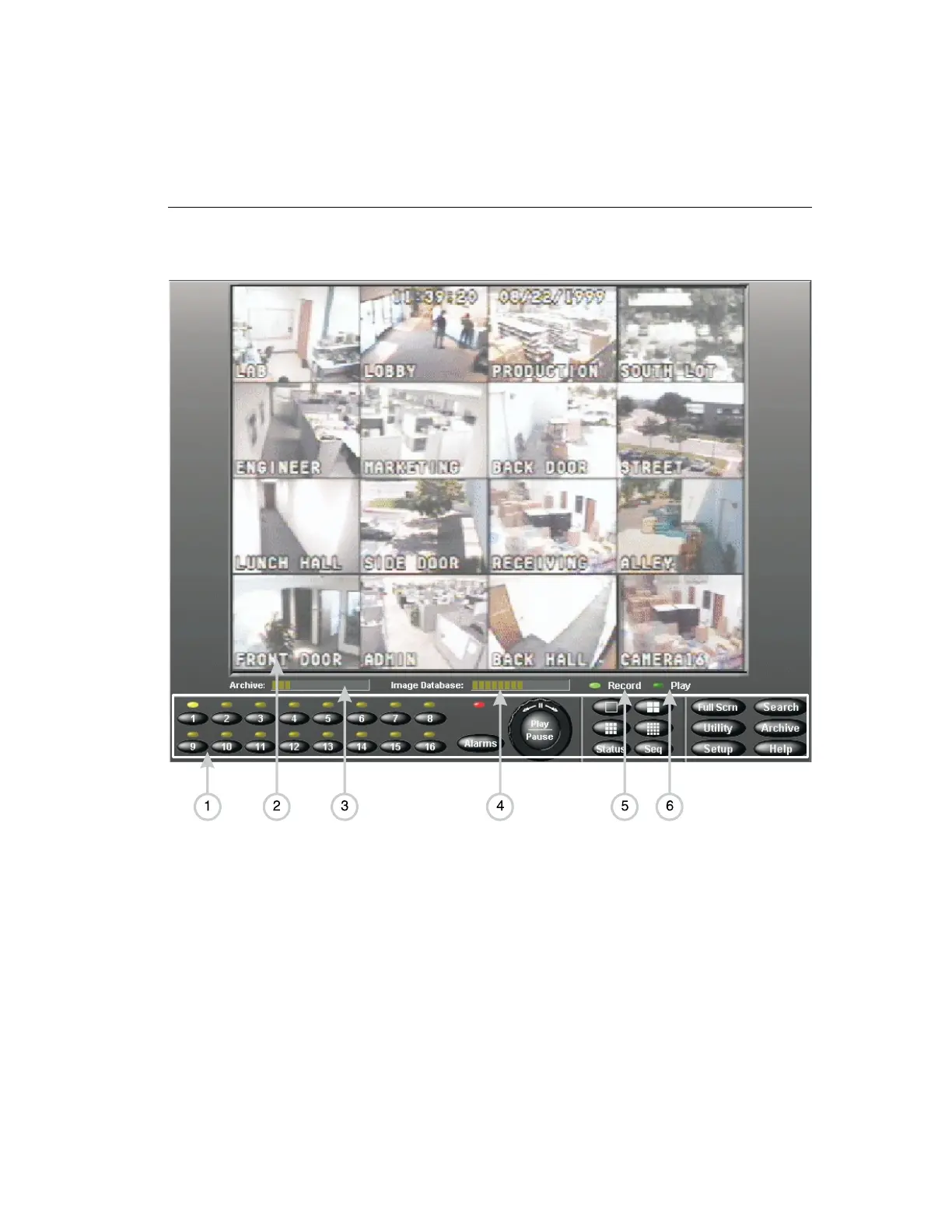

MAIN SCREEN
The Intellex main screen is shown below. Most unit functions
can be accessed from this screen.
The main screen controls and indicators are described below:
1. On-screen Controls — Use the mouse pointer to access
unit functions. For a description of these controls, see On-
screen Controls and Indicators in this chapter.
2. Image Area — The Intellex unit displays both live and
playback images in this area of the screen in the selected
screen format.
