Ametek 241CE II User Manual

PN 903-8797, Rev A

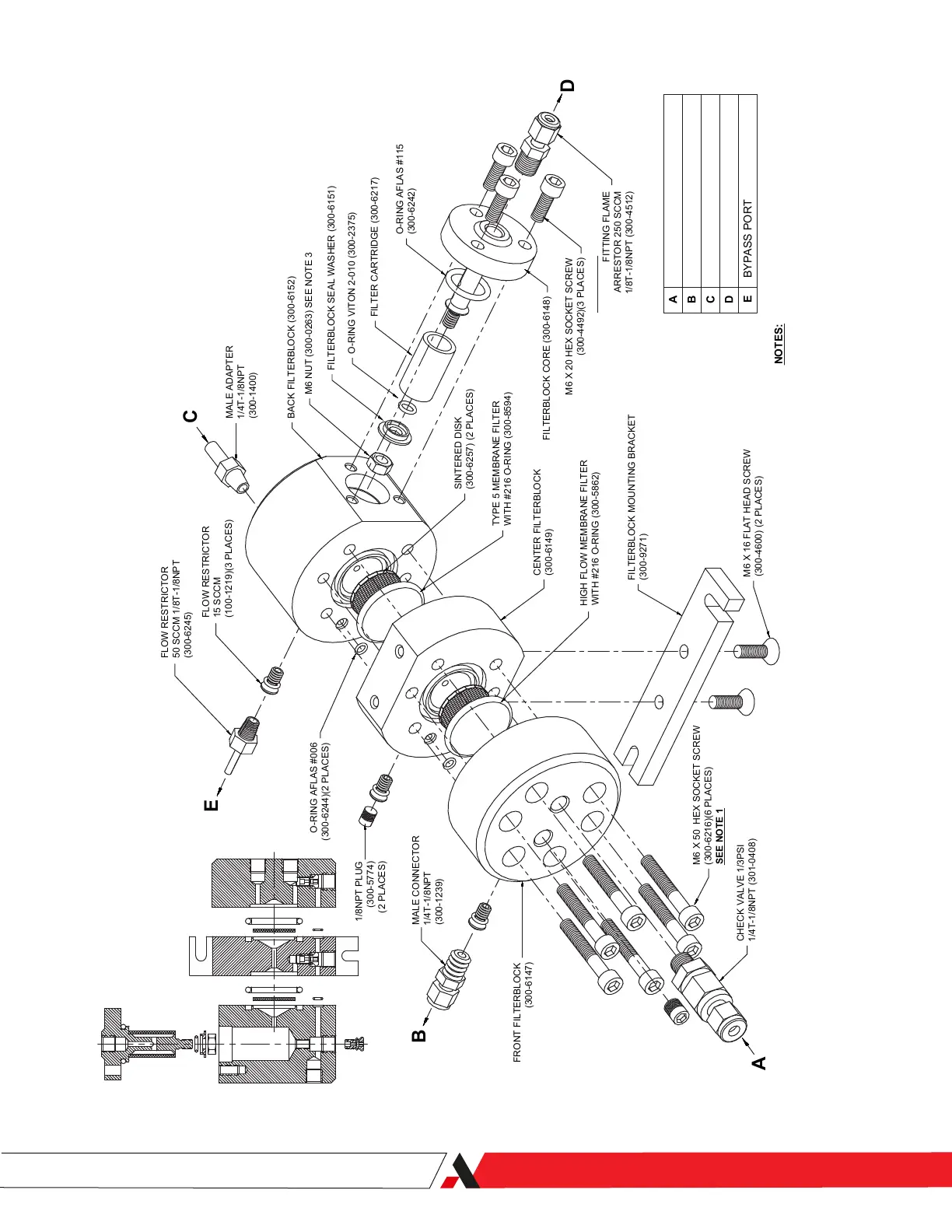

Figure 4-2.
Filterblock Assembly.
TO ANALYZER SAMPLE INLET FROM ANALYZER SAMPLE VENT VENT TO FLARE SAMPLE GAS INLET
BYPASS PORT
FLOW RESTRICTOR
50 SCCM 1/8T-1/8NPT
(300-6245)
FILTERBLOCK MOUNTING BRACKET
(300-9271)
FITTING FLAME
ARRESTOR 250 SCCM
1/8T-1/8NPT (300-4512)
MALE ADAPTER
1/4T-1/8NPT
(300-1400)
FRONT FILTERBLOCK
(300-6147)
MALE CONNECTOR
1/4T-1/8NPT
(300-1239)
1/8NPT PLUG
(300-5774)
(2 PLACES)
M6 NUT (300-0263) SEE NOTE 3
FILTERBLOCK SEAL WASHER (300-6151)
O-RING VITON 2-010 (300-2375)
FILTER CARTRIDGE (300-6217)
O-RING AFLAS #115
(300-6242)
M6 X 20 HEX SOCKET SCREW
(300-4492)(3 PLACES)
SEE NOTE 1
FILTERBLOCK CORE (300-6148)
SINTERED DISK
(300-6257) (2 PLACES)
TYPE 5 MEMBRANE FILTER
WITH #216 O-RING (300-8594)
HIGH FLOW MEMBRANE FILTER
WITH #216 O-RING (300-5862)
O-RING AFLAS #006
(300-6244)(2 PLACES)
CENTER FILTERBLOCK
(300-6149)
BACK FILTERBLOCK (300-6152)
B
A
D
C
E
A
B
C
D
E
TORQUE M6 SCREWS TO 36 IN-LBS ±9 IN-LBS
ASSEMBLE AS PER WI-0450
TIGHTEN ONTO SPOOL UNTIL 0-RING CANNOT BE
HEARD RATTLING UNDERNEATH SEAL WASHER.
1.
2.
3.
NOTES:
CHECK VALVE 1/3PSI
1/4T-1/8NPT (301-0408)
M6 X 16 FLAT HEAD SCREW
(300-4600) (2 PLACES)
M6 X 50 HEX SOCKET SCREW
(300-6216)(6 PLACES)
SEE NOTE 1
FLOW RESTRICTOR
15 SCCM
(100-1219)(3 PLACES)
Maintenance and Troubleshooting | 4-23
