Ametek 241CE II User Manual

PN 903-8797, Rev A
Alarm Relay Contacts
24 VDC 0.5A Max.
Analyzer Serial No.: __________________
Certificate Nos.: KEMA 02ATEX2121 X, IECEx DEK12.0052X
Model 241CE II Dewpoint Analyzer
275 W; 120 VAC 50/60 Hz
Input
Output Signals
4 to 20 mA DC
II 2 G
0344
Year: _______
Cable Entries
M25 X 1.5
Ex db IIB T4 Gb
≥
Caution
Do not open when an explosive gas atmosphere is present.
Use Stainless Steel Fasteners with yield strength 450 MPa (65,300 psi).
301-1391-D
275 W; 240 VAC 50/60 Hz30 VDC Max.

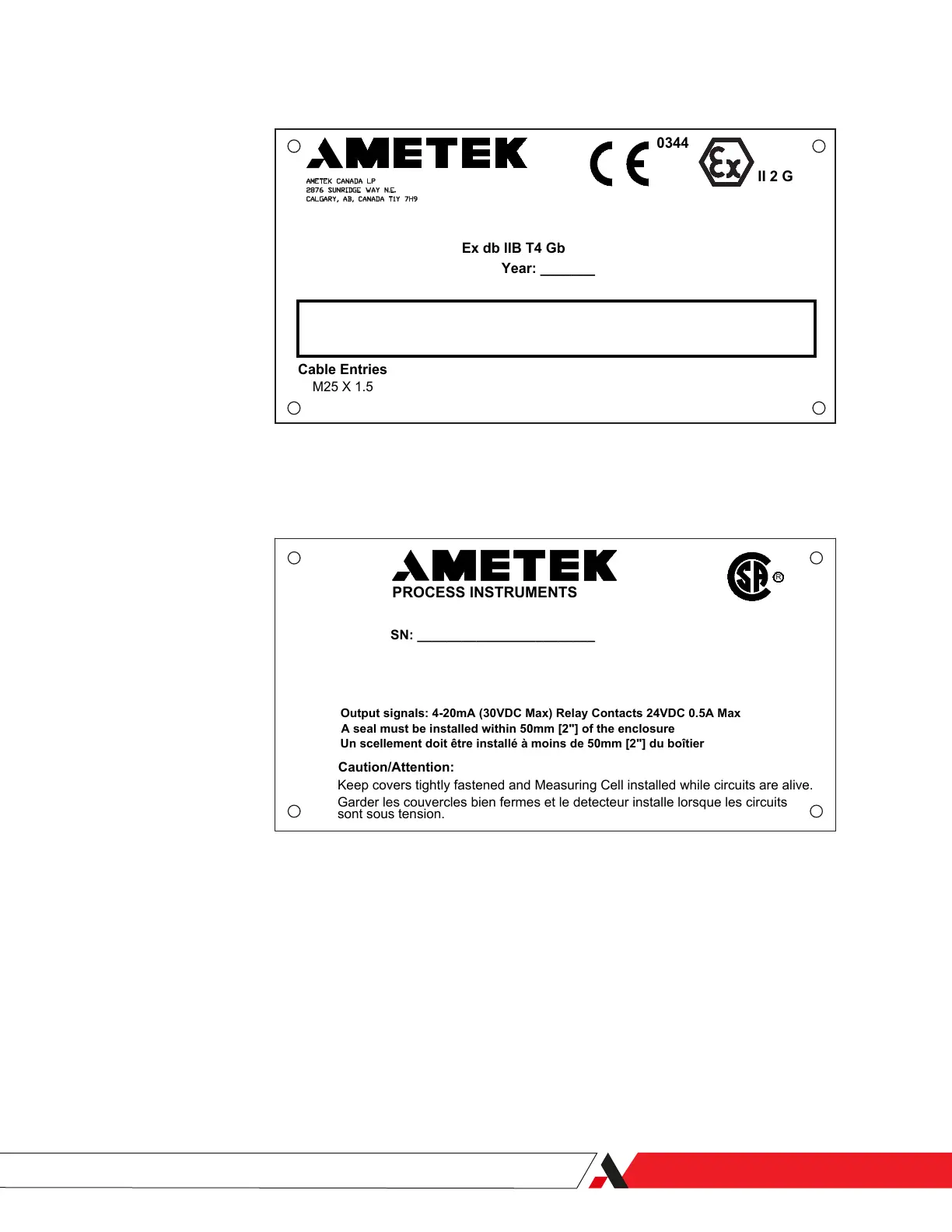

241CE II Analyzer ATEX/IECEx Marking
301-1392-C
CLASS I, DIVISION 1 GROUPS C & D
Western Research Analyzer Model: 241CE II
___120Vac ___240Vac, 50/60 Hz, 275W
PROCESS INSTRUMENTS
SN: ________________________
Output signals: 4-20mA (30VDC Max) Relay Contacts 24VDC 0.5A Max
CLASS I ZONE 1 Ex d IIB T3C, Tamb. +40°C
A seal must be installed within 50mm [2"] of the enclosure
Un scellement doit être installé à moins de 50mm [2"] du boîtier
Keep covers tightly fastened and Measuring Cell installed while circuits are alive.
Garder les couvercles bien fermes et le detecteur installe lorsque les circuits
sont sous tension.
Caution/Attention:
R
241CE II Analyzer CSA-Certied Marking
Specications | 5-5
