PN 903-8797, Rev A
About the Analyzer Sample System and Electronics
The temperature of the analyzer and its sample system must be at
least 15 °C (27 °F) above the highest expected HCDP temperature of
the sample gas stream. The ambient temperature around the analyzer
and the gas owing into the Measuring Cell should not exceed 40 °C
(104 °F).
The sample ltering, ow control, and connection points for the Sample and
Vent Lines are all provided on the backpan (Figure 1-1). The remaining com-
ponents of the sample system – Sample Line, Sample Probe, Vent Line to a low
pressure are header (or vent to atmosphere) – can be supplied by AMETEK or
by the customer.

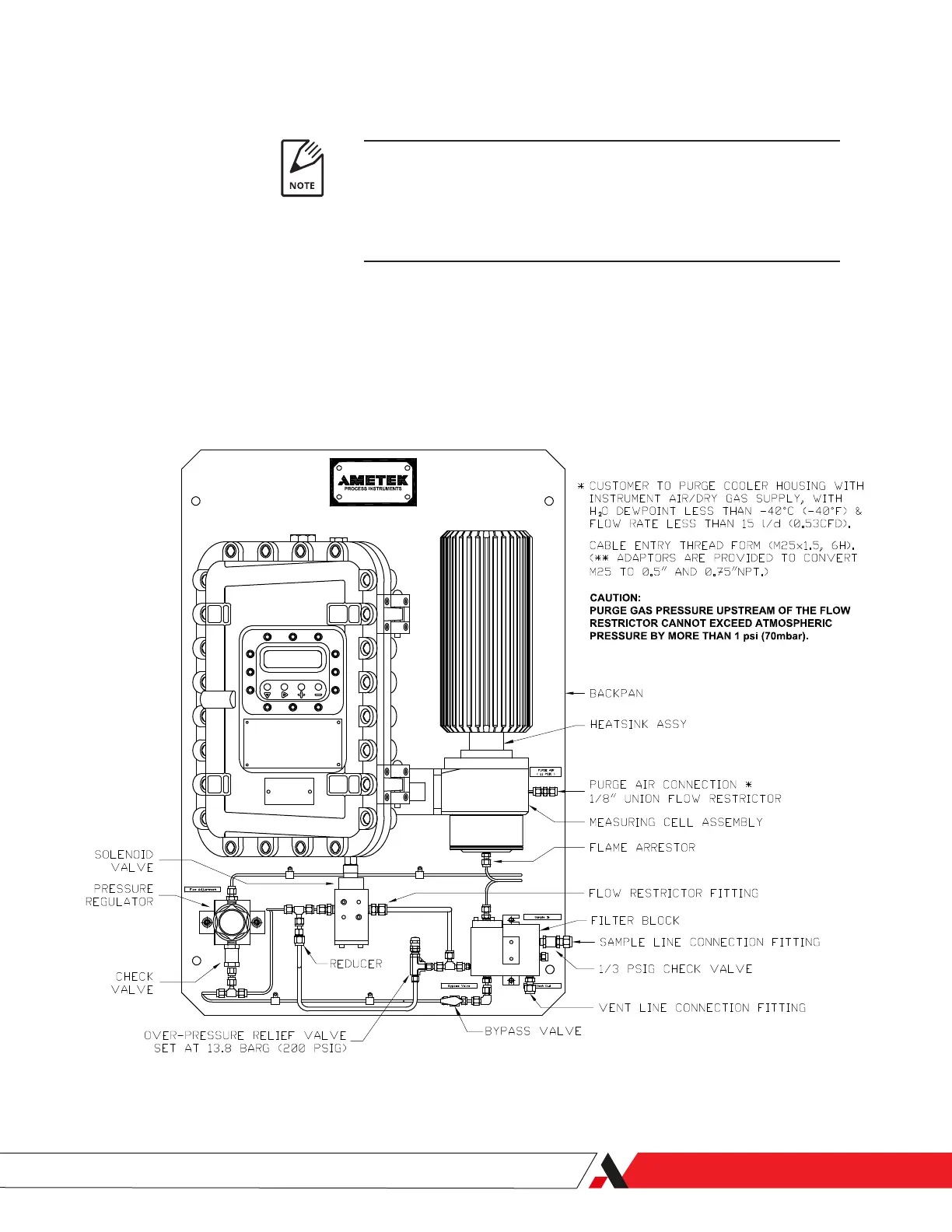

Figure 1-1.
Sample system component
layout.
Overview | 1-3
