Ametek 241CE II User Manual

PN 903-8797, Rev A
Sample Path
Sample gas is extracted from the process line via a 1/4" tube on the Sample
Probe. In the Sample Probe (Figure 1-2), the sample gas passes through an
isolation valve and into the Sample Line which carries it to the Filterblock As-
sembly.

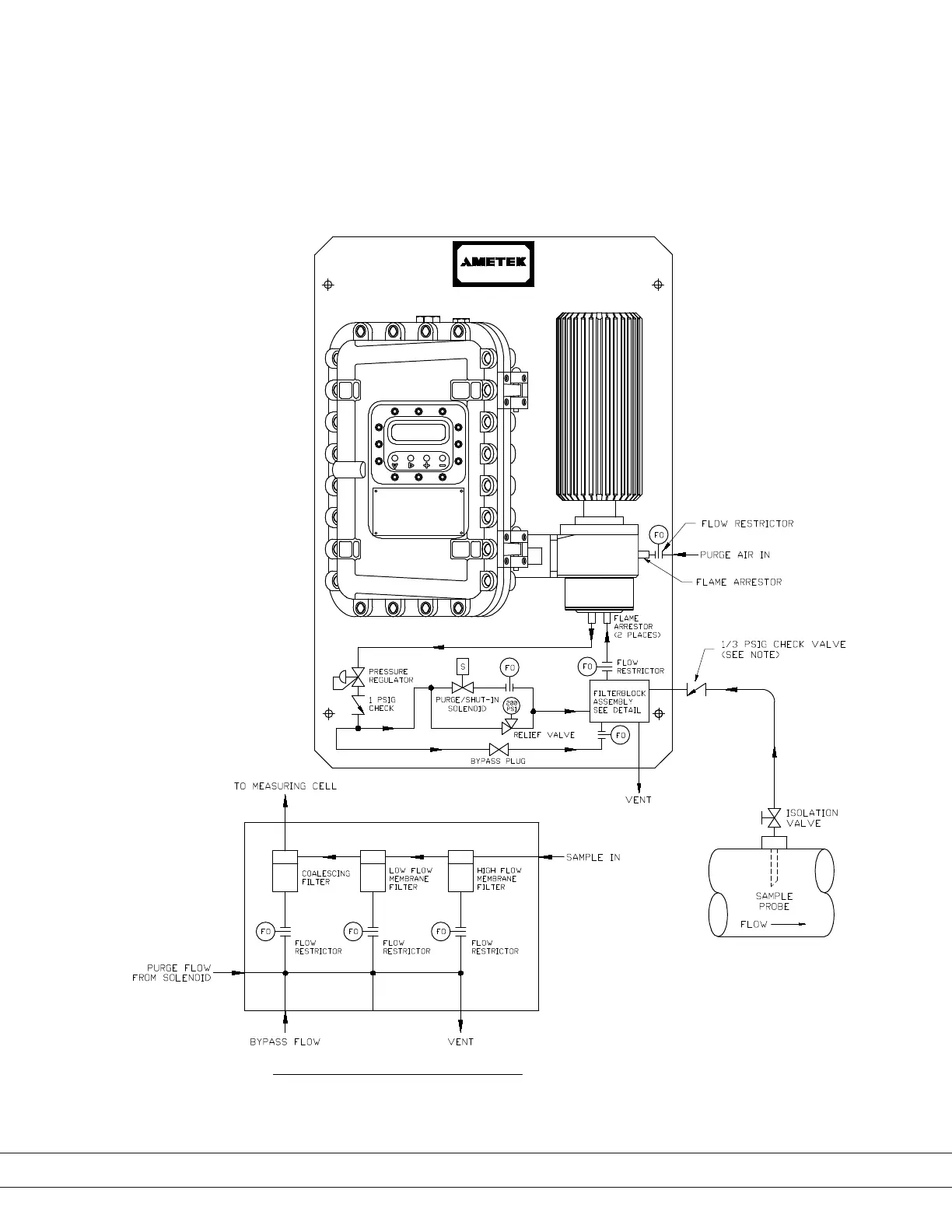

Figure 1-2.
Gas ow schematic.
PROCESS INSTRUMENTS
FILTERBLOCK ASSEMBLY SCHEMATIC
KEMA 02ATEX2121 X
CSA CERTIFICATE: 1108925 (LR 48179-30)
REFERENCE: CERTIFICATION NO:
1-4 | 241CE II Hydrocarbon Dewpoint Analyzer
