PN 903-8797, Rev A
Connecting I/O Signals, Alarm Relay Contacts, and AC Power
The analog input/output signals, alarm relay contacts, and AC power require-
ments are specic to each analyzer installation. The wiring requirements are
discussed in the following pages, and illustrated in Figure 2-3.

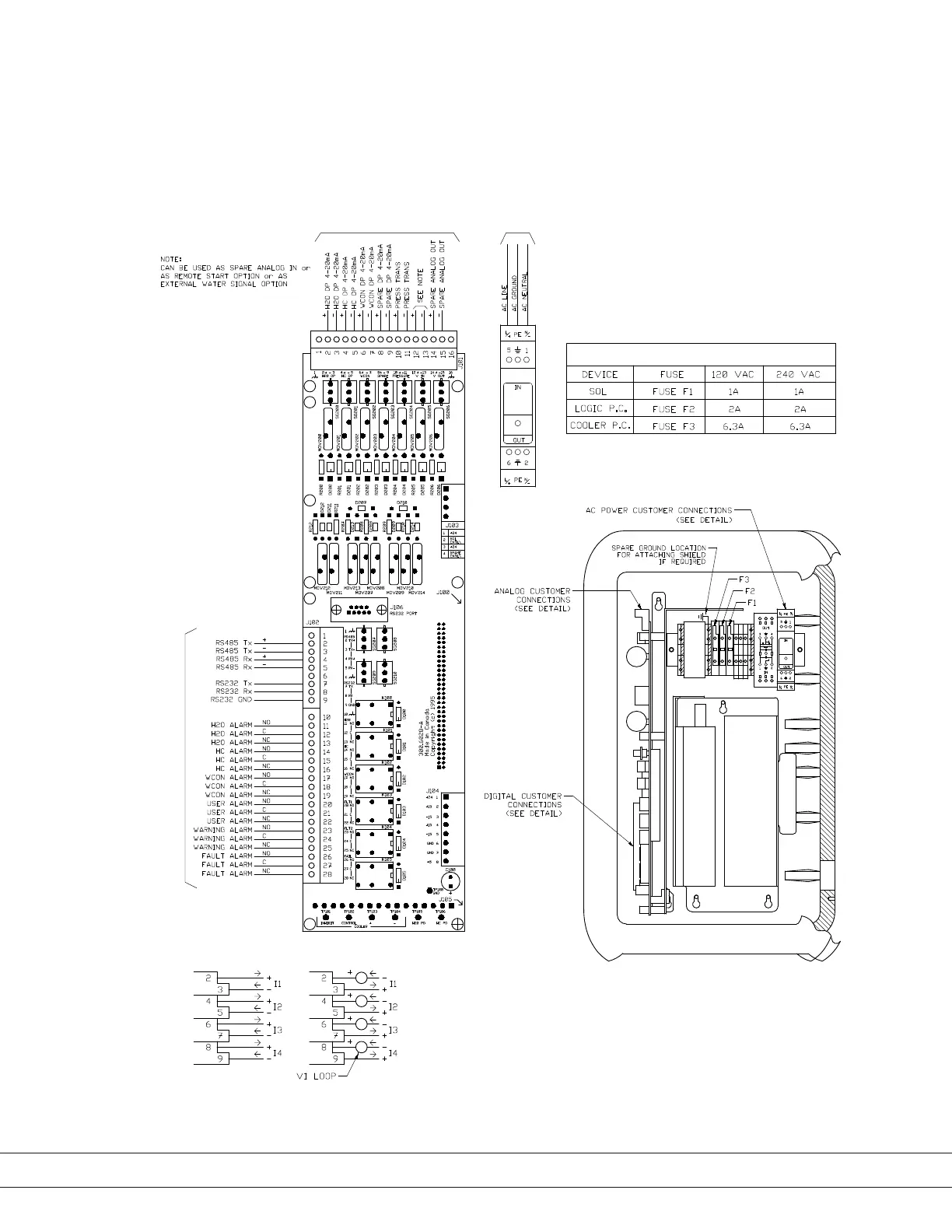

Figure 2-3.
Customer connections,
Termination board.
DIGITAL CUSTOMER CONNECTIONS
ANALOG CUSTOMER CONNECTIONS
SUPPLY MAINS
SELF-POWERED LOOP POWERED
FUSE RATINGS
KEMA 02ATEX2121 X
CSA CERTIFICATE: 1108925 (LR 48179-30)
REFERENCE: CERTIFICATION NO:
2-18 | 241CE II Hydrocarbon Dewpoint Analyzer
