Ametek 933S

Maintenance and Troubleshooting | 6-47
M6 NUT (300-0263) SEE NOTE 3
FILTERBLOCK SEAL WASHER (300-6151)
O-RING VITON 2-010 (300-2375)
FILTER CARTRIDGE (300-6217)
O-RING AFLAS #115
(300-6242)
M6 X 20 HEX SOCKET SCREW
(300-4492)(3 PLACES)
SEE NOTE 1
FILTERBLOCK CORE (300-6148)
SINTERED DISK
(300-6257)(2 PLACES)
TYPE 5 MEMBRANE FILTER
WITH #216 O-RING (300-8594)
HIGH FLOW MEMBRANE FILTER
WITH #216 O-RING (300-5862)
1/8NPT PLUG
(300-5774)(3 PLACES)
FLOW RESTRICTOR 100 SCCM
(100-2598)(3 PLACES)
TUBE ADAPTER
1/4T-1/8NPT
(300-1400)
CENTER FILTERBLOCK
(300-6149)
BACK FILTERBLOCK (300-6152)
IF FILTERBLOCK IS LOCATED GREATER THAN
2 METERS AWAY FROM ANALYZER, DO NOT
ROUTE ANALYZER SAMPLE VENT THROUGH
FILTERBLOCK. PLUG THE PURGE FLOW PORT
& RUN A SEPARATE VENT FOR BOTH THE
FILTERBLOCK & ANALYZER.
B
A
D
C
CHECK VALVE 1PSI
1/8T-1/8NPT (300-9578)
M6 x 50 HEX SOCKET SCREW
(300-6216)(6 PLACES)
SEE NOTE 1
SAMPLE GAS INLET
VENT TO FLARE
FROM ANALYZER SAMPLE SYSTEM
TO ANALYZER SAMPLE SYSTEM
A
B
C
D
MALE CONNECTOR
1/8T-1/8NPT (300-1236)
FILTERBLOCK MOUNTING
BRACKET (300-9271)
M6 X 16 FLATHEAD SCREW
(300-4600)(2 PLACES)
MALE CONNECTOR
1/4T-1/8NPT
(300-1239)
FILTERBLOCK ASSEMBLY
USEABLE PRESSURE RANGE
300-2000 psig
C
D
B
A
FRONT FILTERBLOCK
(300-6147)
O-RING AFLAS #006
(300-6244)(2 PLACES)

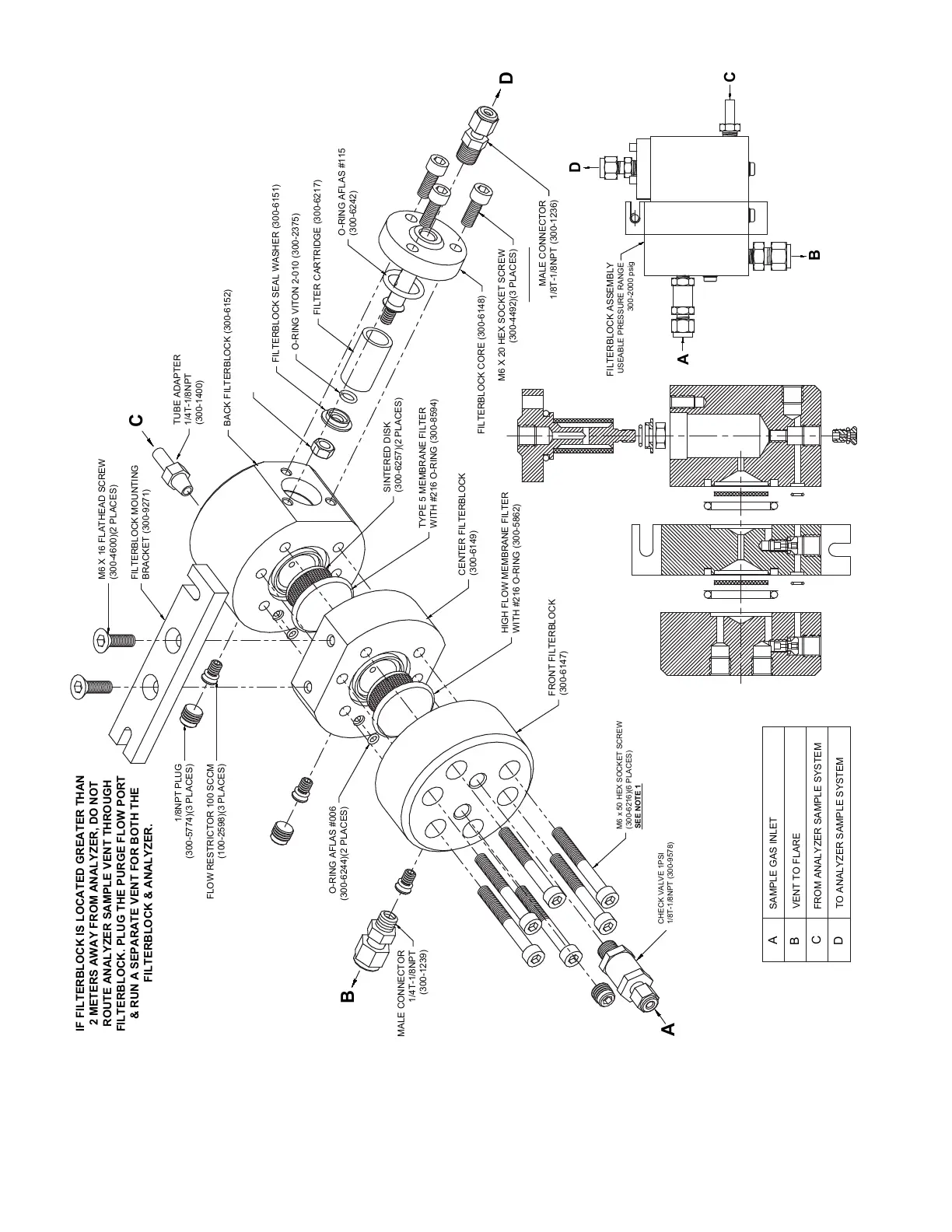

Figure 6-12.
Filterblock Assembly
(100-1782).
