Ammann AP 240 - Page 50

44 AP 240
16
374011
1 2 3 4 5
6
7 8
11 12 13
14
15
16
17 18
I
II
III
IV
0
2.6. Controllers & Control Instruments

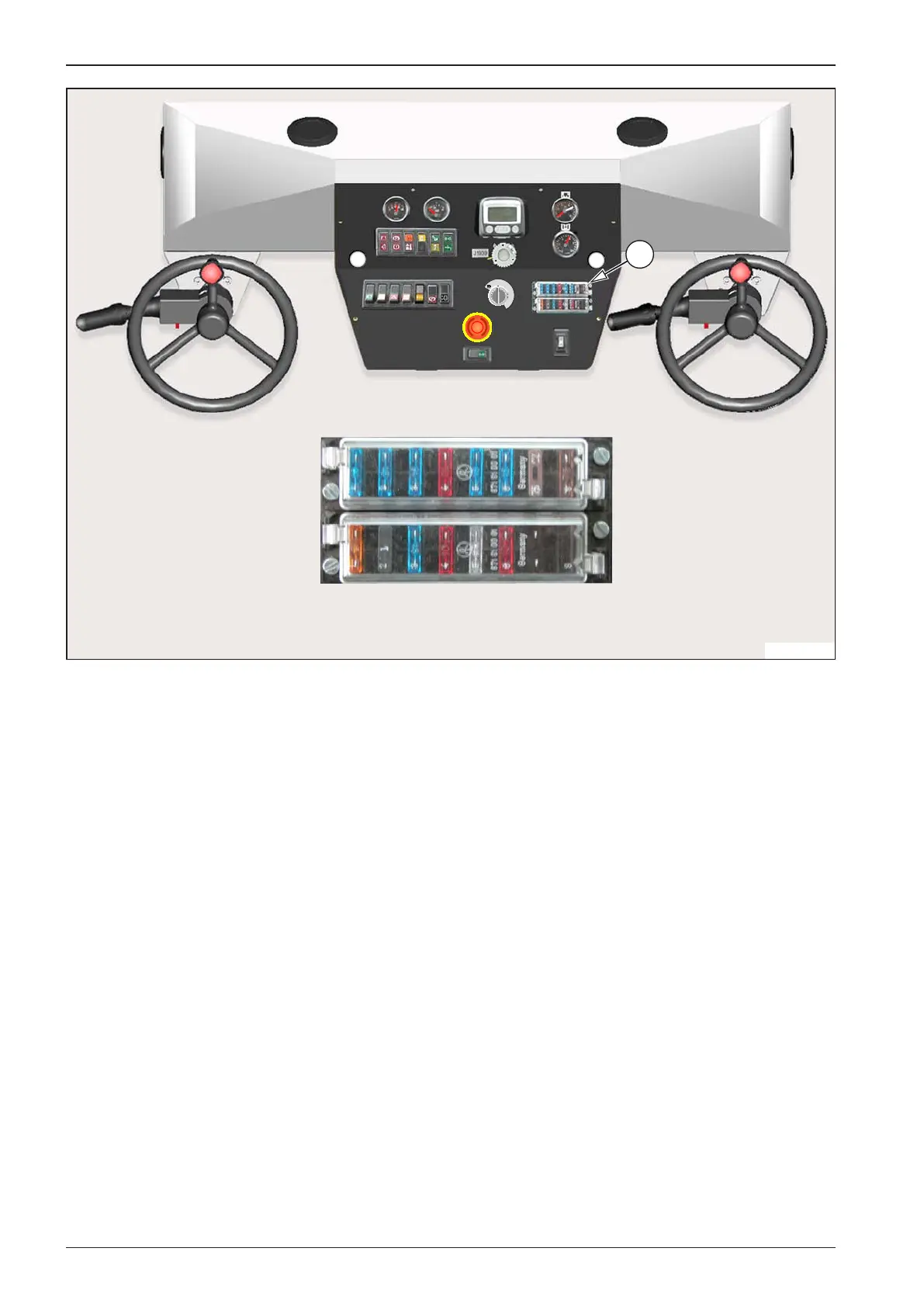

FUSES
Cut-out box (16)
It includes fuses of the following instruments:
1 (15A) - Mounting socket
2 (15A) - Rear lights
3 (15A) - Beacon, brake lights, cab lighting, horn
4 (15A) - Direction-indicator lights
5 (5A) - Front fender lights, rear lamps, instrument illumination
6 (15A) - Headlamps
7 (7,5A) - Gearbox solenoids, backing horn
8 (7,5A) - Dierential lock solenoids, hydraulic oil level, engine start relay
11 (5A) - Indicator lamps (LEDs), measuring instruments, brake failure
12 (1A) - Diagnostics, Power View
13 (15A) - Wipers, washers
14 (10A) - Sprinkling
15 (25A) - Fans
16 (10A) - Trimmer
17 (-A) - Reserve
18 (-A) - Reserve
