4.3.3 Frequency Resolution
Use the [<] and [>] keys to set the number of digits to be displayed for frequency measurement results. The frequency
measurement range varies depending on the input chanel and input impedance.

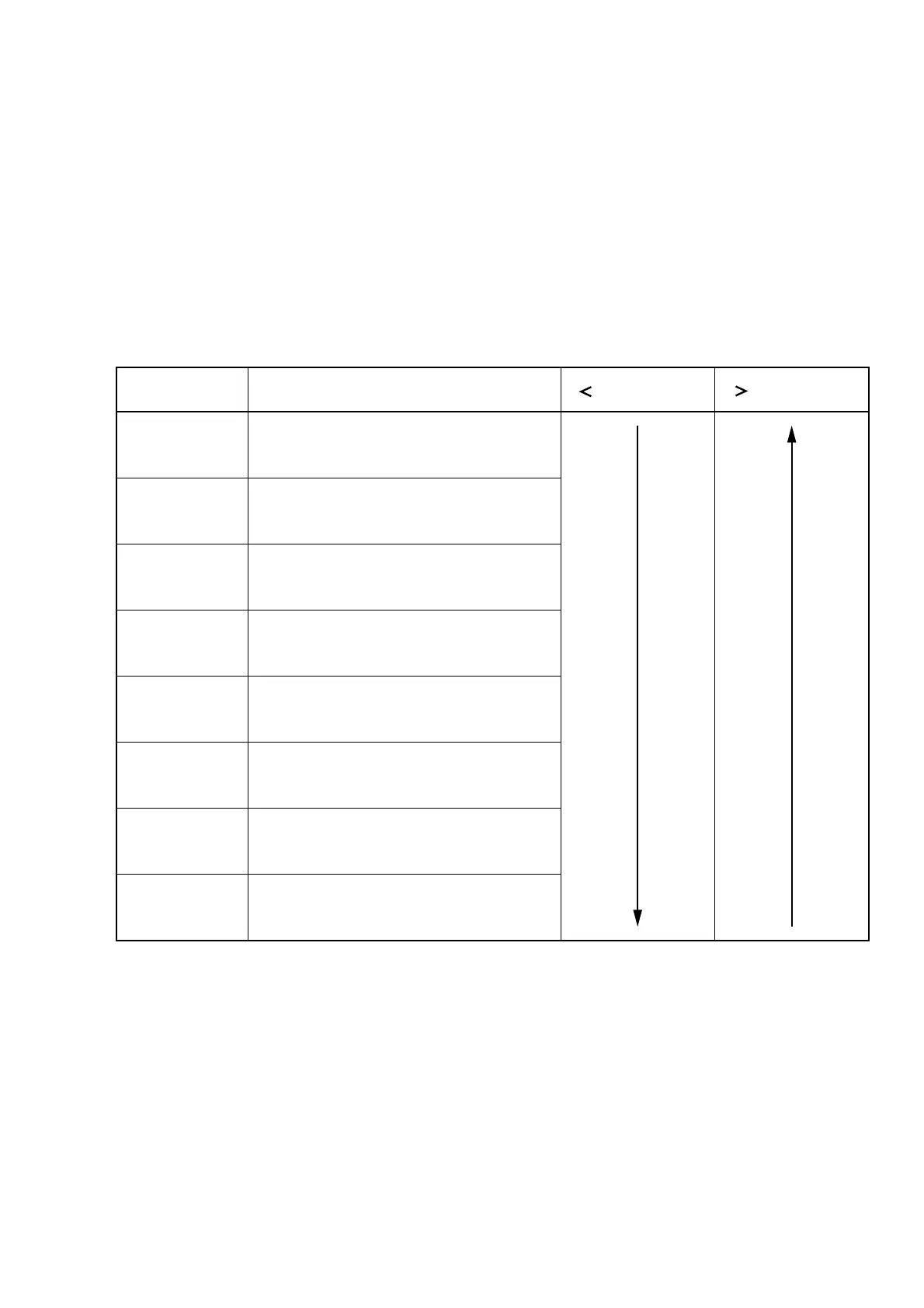

Consequently, the resolution you can set also varies. Fig 4-12 and 4-13 show the resolutions that you can set.
Input terminal : Input1 (50 Ω), Input2 (50 Ω)
Measurement
Resolution
0.1 Hz
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
[ ] Key Function
[ ] Key Function
20 000 000 000. 0
GHz MHz kHz Hz
20 000 000 000.
GHz MHz kHz Hz
20 000 000 00 0
GHz MHz kHz Hz
20 000 000 0 00
GHz MHz kHz Hz
20 000 000
GHz MHz kHz
20 000 00 0
GHz MHz kHz
20 000 0 00
GHz MHz kHz
20 000
GHz MHz
Display
Fig. 4-12 Frequency Display (Measured at an Input Impedance of 50 Ω)
