Anritsu MF2412B - Burst Wave Measurement Via Input1 Using Gating

Section 4 Unit Operation
4-48
4.4.8 Burst Wave measurement via Input1 Using Gating
The gating function enables you to measure the frequency at a specific position of a burst signal.
Gate end: On
Gate end: On
T
Signal to measure
Trig Delay
Gate Width
Level of signal to measure
Trigger signal (reference)
Trigger delay
Gate width
Frequency
measurement
interval

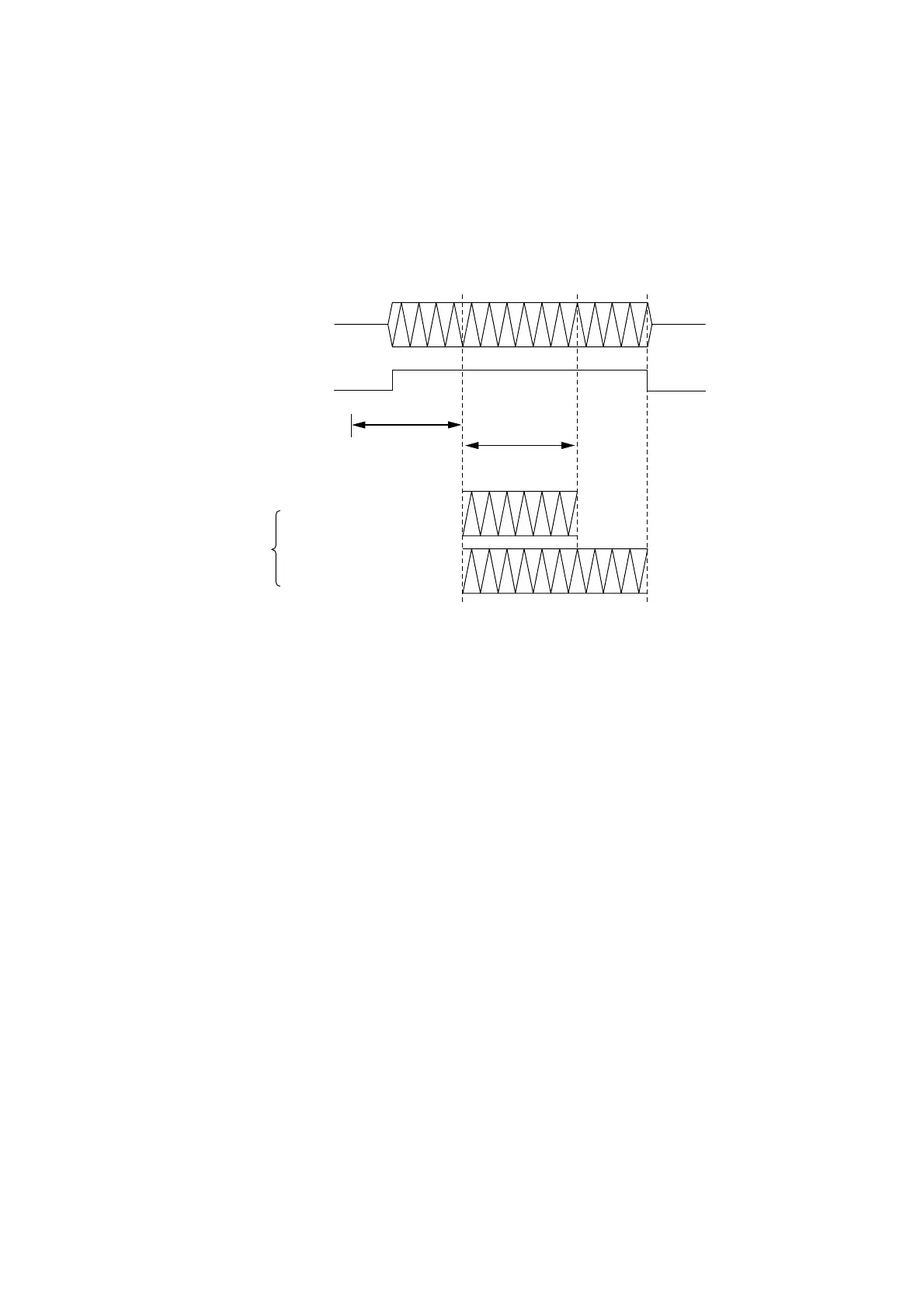

Fig. 4-53 Gating Function Overview
(1) Connecting the input signal
Connect the signal to measure to the Input1 connector on the front panel.
Note:
Do not connect a signal of +10 dBm or higher to the Input1 connector.
(2) Setup
1) Press the [Preset] key to preset this unit.
2) Select the Burst mode.
Press the [Meas Mode] key. The Burst LED lights up.
3) Select the frequency acquisition mode.
To select the Manual mode, follow the procedure discussed in Section 4.4.2. Note that the Auto mode was
previously set at presetting.
4) Select the level acquisition mode.
To select the Manual mode, follow the procedure discussed in Section 4.4.3. Note that the Auto mode was
previously set at presetting.
