(2) Menu F2 : Sets Overlap/Disc (Discrete) for the statistics processing extraction mode.
Selects one of two modes: Discrete mode that outputs statistics processing results for collected data and Overlap mode

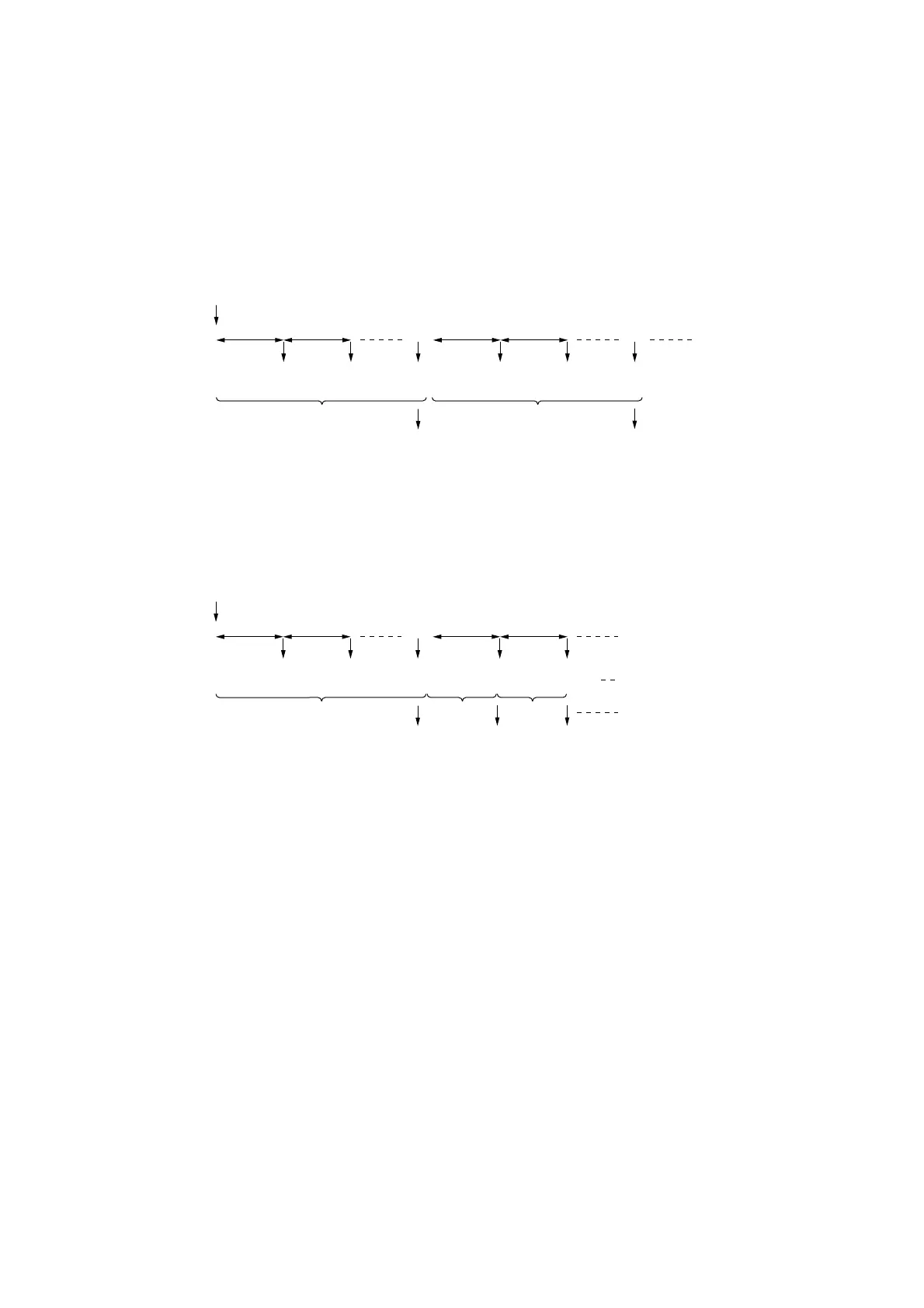

that outputs statistics processing results for each data sample. Fig. 4-29 shows the two modes.
Measurement
value
Statistics processing value
N: Number of samples
T
MEAS : Continuous measurement period = acquisition time*
1
+ measurement time*
2
+ sample rate
T
STA : Statistics processing time = number of samples N × TMEAS
(a) Statistics processing in Discrete mode
Restart
TMEAS TMEAS TMEAS TMEAS
D1
TSTA TSTA
D2 DN D1 D2 DN
1st
2nd
Restart
TMEAS TMEAS TMEAS TMEAS
D1
TSTA1TSTA2TSTA2
D
2 DN DN+1 DN+2
1st
2nd 3rd
Measurement value
Statistical processing value
N: Number of samples
T
MEAS : Continuous measurement period = acquisition time*
1
+ measurement time*
2
+ sample rate
T
STA1: Statistics processing time 1 : TMEAS × N
T
STA2: Statistics processing time 2 : TMEAS
(b) Statistics processing in Overlap mode
*1
The acquisition time is generated outside of the acquisition when acquisition processing Auto is set (max : 50 ms).
*2 The measurement time is determined from the frequency of the input signal and the measurement resolution.
Fig. 4-29 Statistics Processing Extraction Mode
