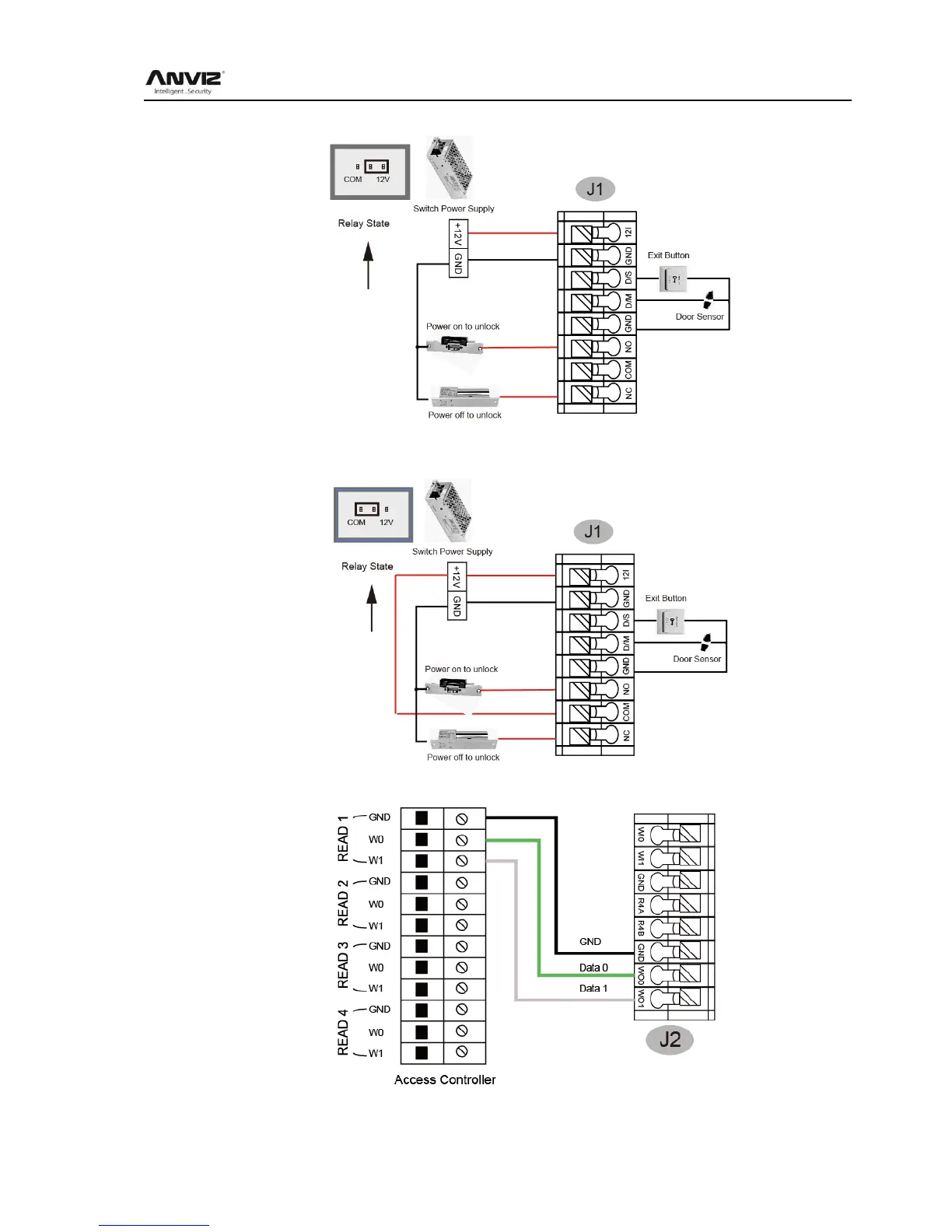

3．Connecting E-Lock with Switching Power
Use the following wiring is recommended to prevent damage to the access control when load is
large.
4．Connecting Wiegand Output to External Controller
5．Wiegand Card Reader Connection
