PU-4010 4-3

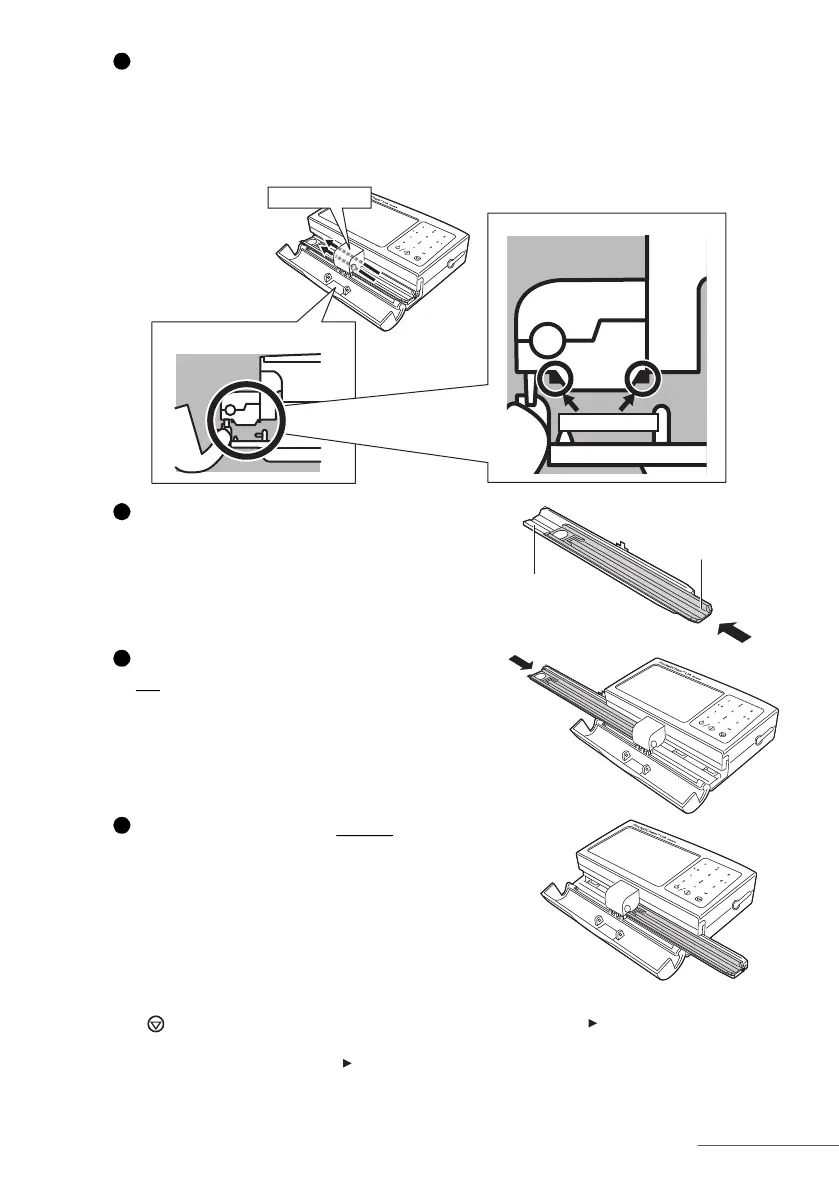

Wipe dirt off the sliding areas.
• Wipe off dirt on the sliding areas (black areas in the enlarged view below) of the reading
unit using a swab moistened with diluted nuetral detergent. Move the swab in the direction
of arrows as shown below.
• Blot the areas with a dry swab
Attach the test strip holder to the test strip
holder base.
• As shown at the right, place the holder on the
holder base. Slide the holder to the left to lock
it into place.
Insert the test strip holder base from the
left side of the instrument until it stops.
• Make sure the grooves on the rear of the
holder base are aligned with the guide rails.
While lightly pressing the left end of the
test strip holder base to the right with a
finger, turn on the power.
• Make sure the power turns on and the holder
base is automatically drawn to the position to
the right as shown in the figure and release
the holder base.
REFERENCE: If the holder base is not drawn and the error code “E001” appears, press the
button to clear the error. While pressing and holding the button, lightly press the
left end of the holder base to the right. The holder base will then be drawn into the
instrument. Release the button when the metallic protrusion is completely hidden
inside the instrument. The holder will be automatically positioned in place when the next
measurement takes place.
9
Side view of the reading unit
Enlarged
Cleaning parts
Reading unit
Test strip
holder base
Test strip
holder
10
11
12
[
6
( )
]
[
6
( )
]
