1.5 Installation Dimensions and Guide

Dimensions of SH-300 (L*W*H): 171.8×98.8×38.6 (Unit: mm)

Dimensions of the installation hole: 165×85 (Unit: mm)

Method 1： Embedded installation

The installment surface must be up to Standard Type 4, being applicable for indoor or the

switchboard box on coequal condition.

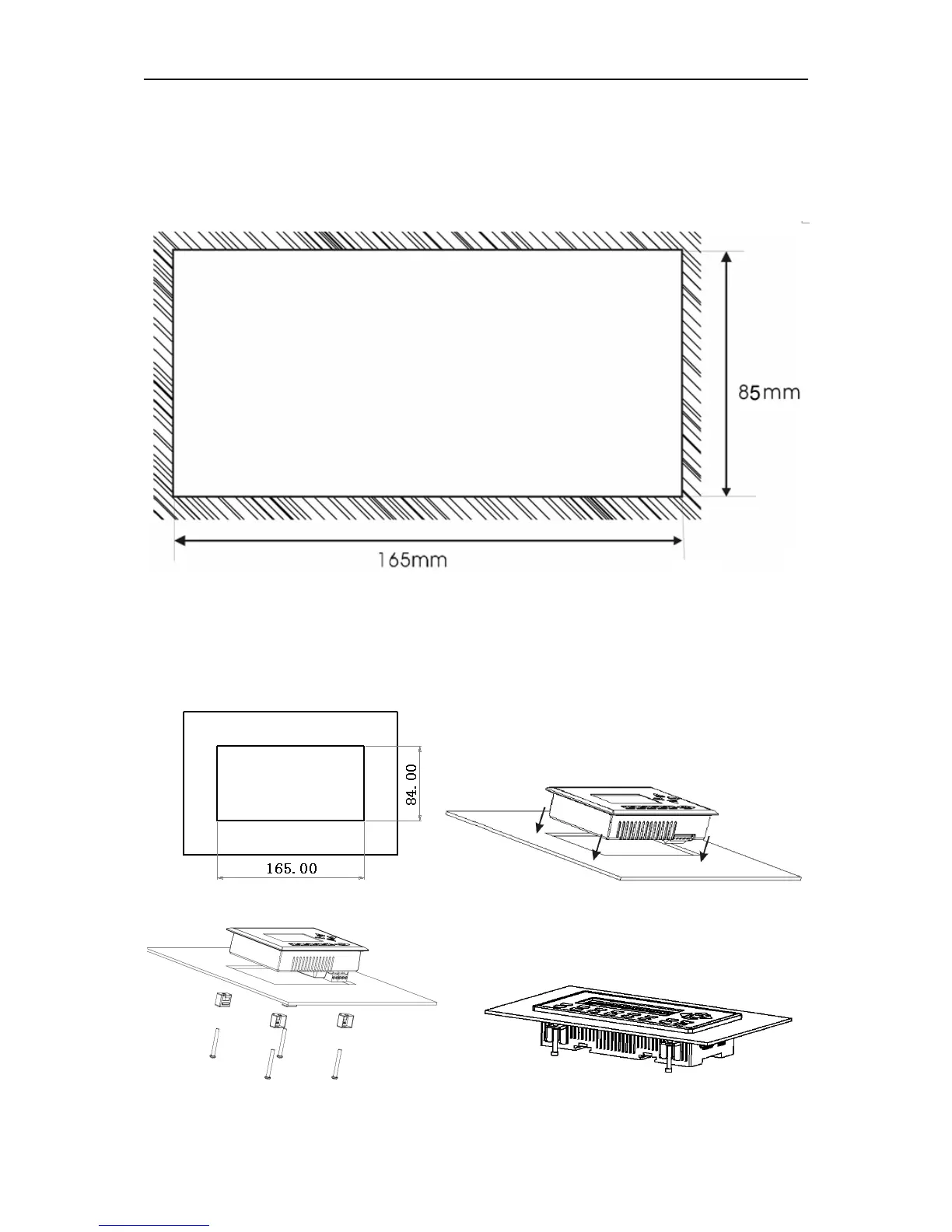

Thickness of Clapboard: 0.5-0.9 mm.Dimensions of the installation holes are shown as follows:
