4.9 FATEK FBs Series
SH-300 can communicate with FATEK FBs series PLC the communication port is the port 0 of
PLC
SH-300 software configuration:
Item
Content
SH-300 COM port
9 pin COM port
PLC COM port
Programming port
Default parameter
9600bps、7bits、1stop、Even
Station No.
1-254 ,1 is Windows default
Distance (Max.)
15m
Communication mode
RS232
Cable type
Special cable
Inner relay address
M0000-M2001
Register address
R0000- R3839.R5000-R8071

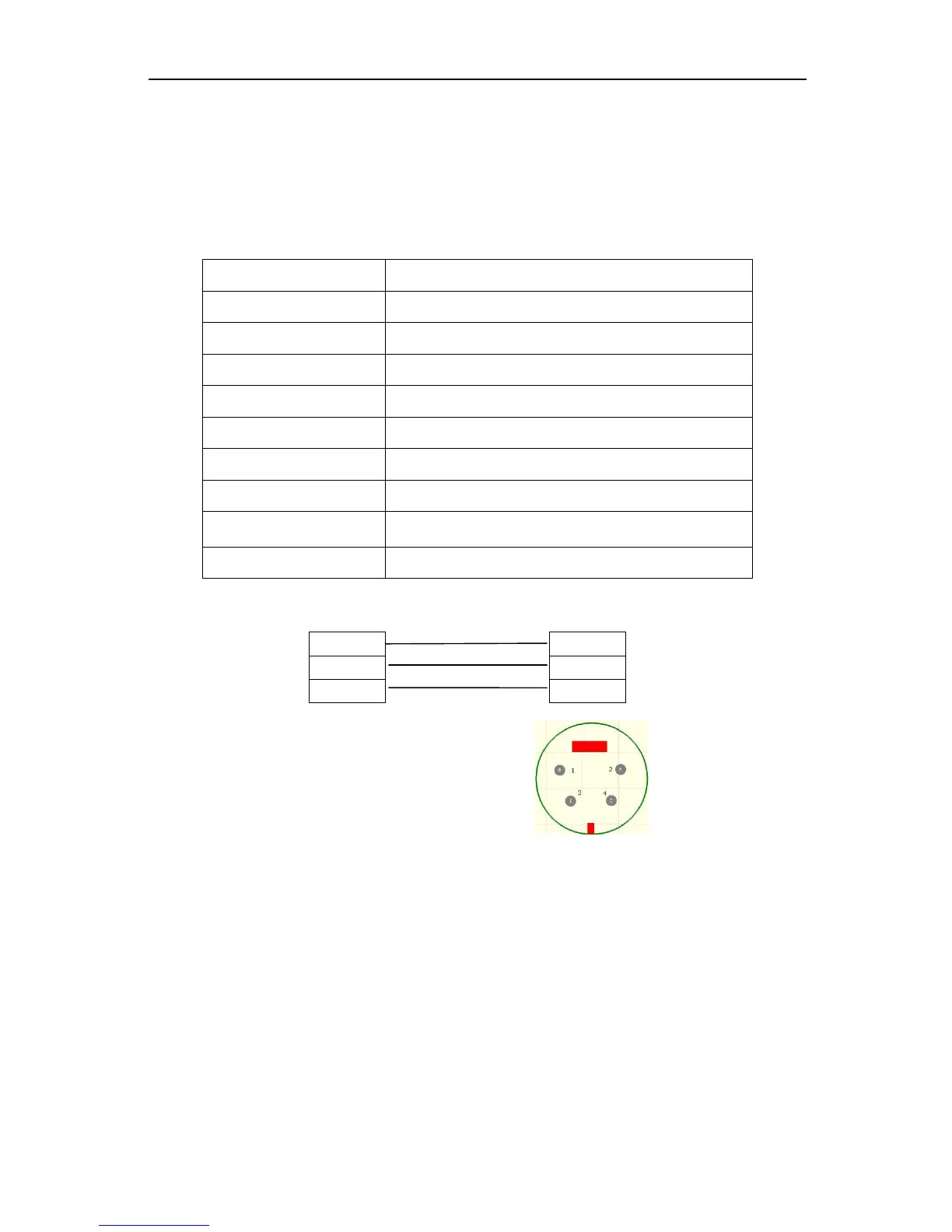

Connection guidance of Special cable
SH-300 side
2 RXD
3 TXD
PLC side
9 pin D shape
3 TXD
1 RXD
4 pin round shape
Female plug
5 GND
2 GND
Male plug
(when SH-300 communicates with FATEK series PLC you are recommended to use the
programming cable )
