Array electronic SH-300 User Manual

SH-300 Text Panel
Page 58 of 103
Manipulation 3

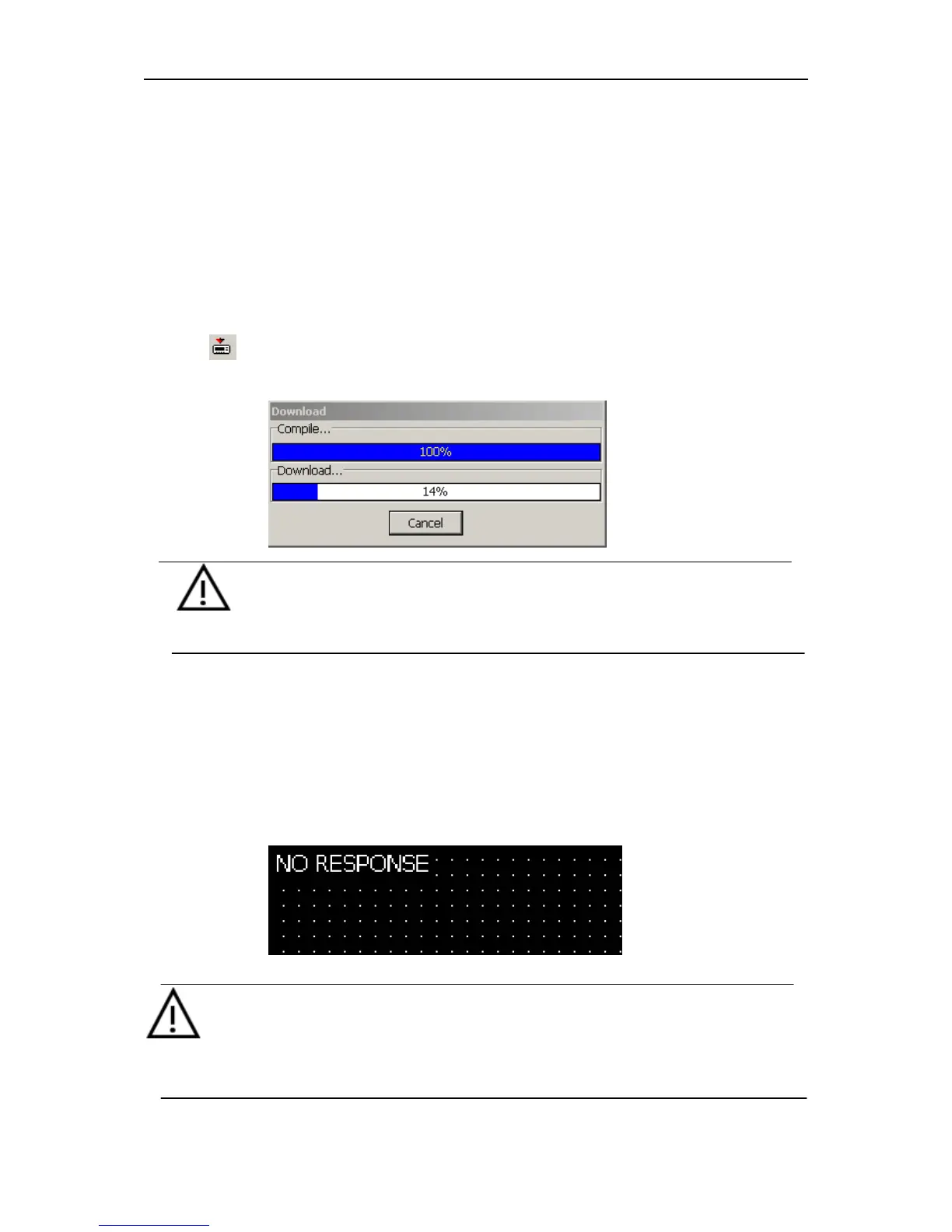

3.1 Download Window
1. Connect the operating unit interface to the configuration computer using a SH-PC cable.
2. Confirmed SH-300 has added on the DC24V power source.
3. Press and start to download the date, the screen appears the downloading picture prompt
frame.
Note : Don’t cut off the power supply when SH-300 is receiving data from the
configuration computer.
3.2 Communication
When you finished the downloading of the project data file, cut off the power supply and remove the
communication cable SH-PC. Connect SH-300 to PLC with a communication cable and check the
setting of PLC communication parameters. Meanwhile add the DC24V power to PLC and
SH-300.Then SH-300 will enters the normal operation condition.
Note: when SH-300 communicates with PLC, the initial window appears as shown above.
Please press “∧”key or “∨”key the system will be normal. If the system isn’t normal you
should check the communication of SH-300 and PLC.
