SH-300 User’s Manual Connection with PLC
Page 65 of 103
Connection with PLC 4
4.1 Mitsubishi FX Series
SH-300 can communicate with the programming port of all types of Mitsubishi FX series PLC or
the FX2N-422BD module of the FX2N series.
SH-300 software configuration:
Item
Content
SH-300 COM port
9 pin COM port
PLC COM port
Programming port/ FX2N-422BD
Default parameter
9600bps、7bits、1stop、Even
Station No.
1(1 is fixed and can’t be changed)
Distance (Max.)
70m
Communication mode
RS422/ Programming port
Cable type
Special cable/SC09
PLC series
FX0S
FX0N
FX2N
Inner relay address
M000-M511
M000-M511
M0000-M3071
Register address
D00-D31
D000-D255
D0000-D7999

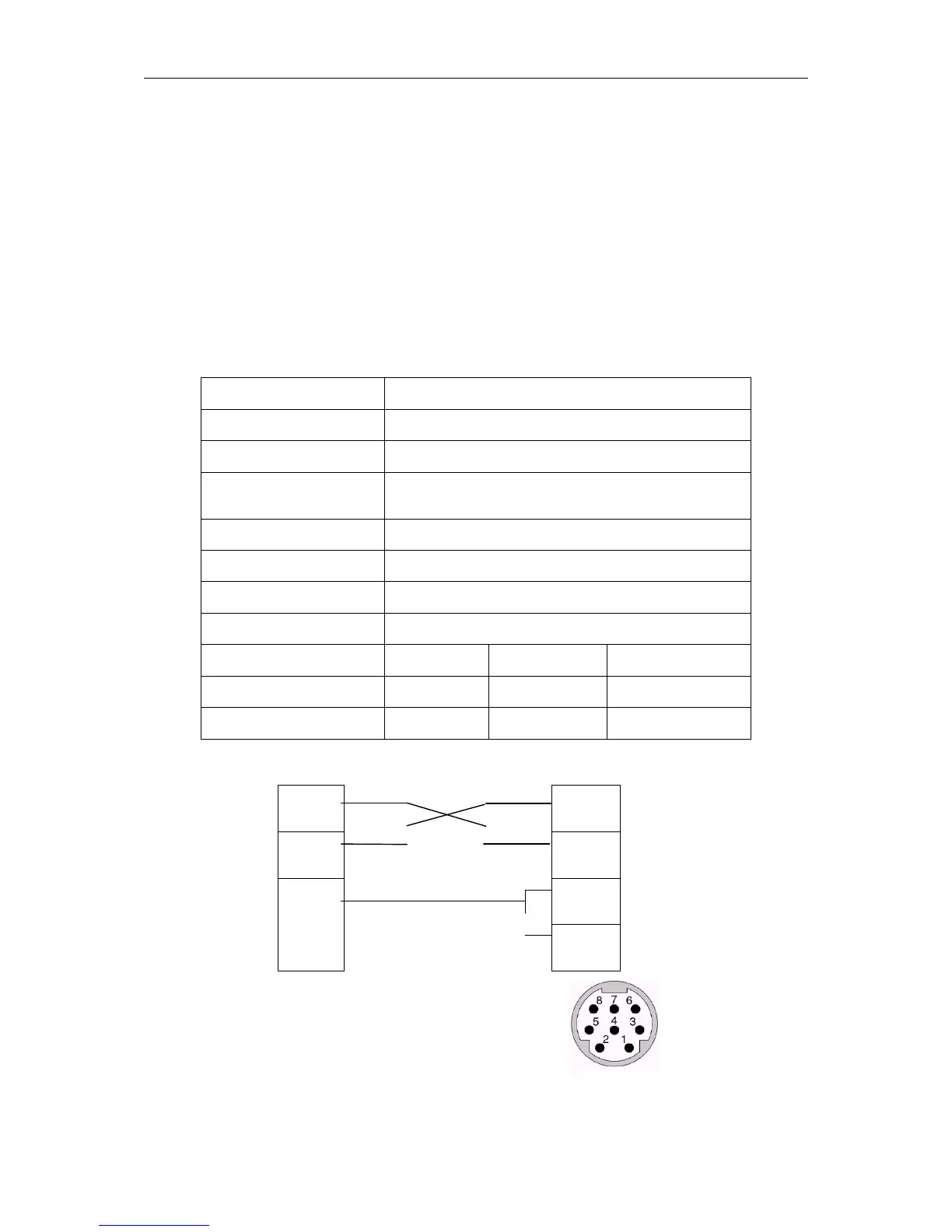

Connection guidance of Special cable
SH-300 side
2 RXD
2 RXD
PLC side
9 pin D shape
3 TXD
4 TXD
8pinRound shape
Female plug
5 GND
1 GND
male plug
7 GND
\]
The picture for 8 pin Round shape
Female plug
