SH-300 User’s Manual Connection with PLC
Page 79 of 103
4.12 THINGET XC Series
SH-300 can communicate with THINGET XC series PLC, the communication port is the
programming port of PLC
SH-300 software configuration:
Item
Content
SH-300 COM port
9 pin COM port
PLC COM port
Programming port
Default parameter
19200bps、8bits、1stop、Even
Station No.
0－255，1 is Windows default
Distance (Max.)
15m
Communication mode
RS232
Cable type
Special cable
Inner relay address
M0-M7999
Register address
R0-R7999

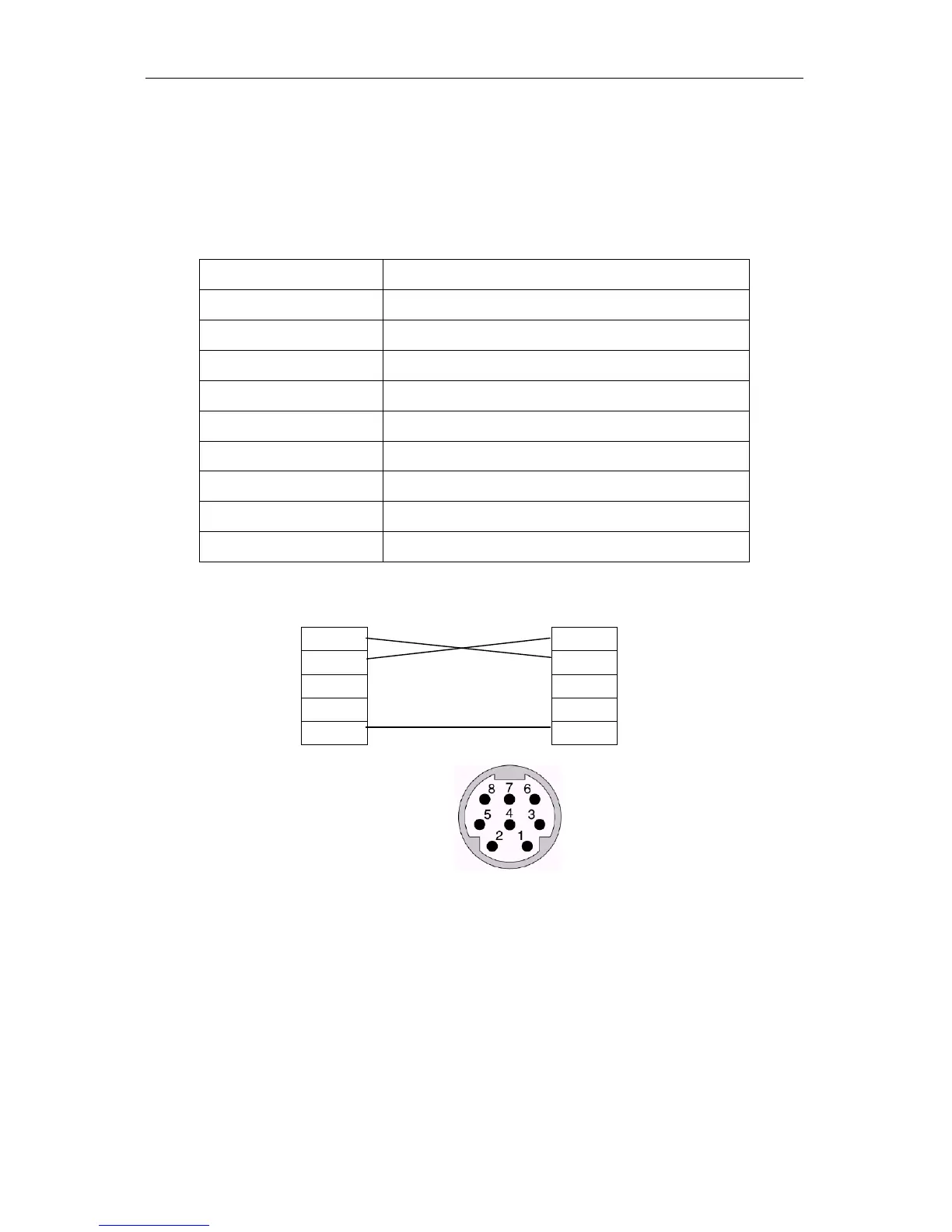

Connection guidance of Special cable
2 RXD
4 RXD
SH-300 side
3 TXD
5 TXD
PLC side
9 pin D shape
8pin Round shape
Female plug
male plug
5 GND
8 GND
(when SH-300 communicates with THINGET series PLC you are recommended to use the
programming cable )
The picture for 8 pin Round shape
Female plug
