Screen-Jumping: Action of the key is defined as screen-jumping function.
Register Set: Action of the key is defined as register parameter setup function.
▲Coil
The number, type and address correspond to the definition of PLC inner relay.
ON: to set the designated relay to be ON.
OFF: to set the designated relay to be OFF.
Reverse: Press this key, the value of the designated relay will be reversed.
▲ Style
Double: The displaying picture of the indicator will be double.
Reverse: The function and the background color will be reversely displayed.

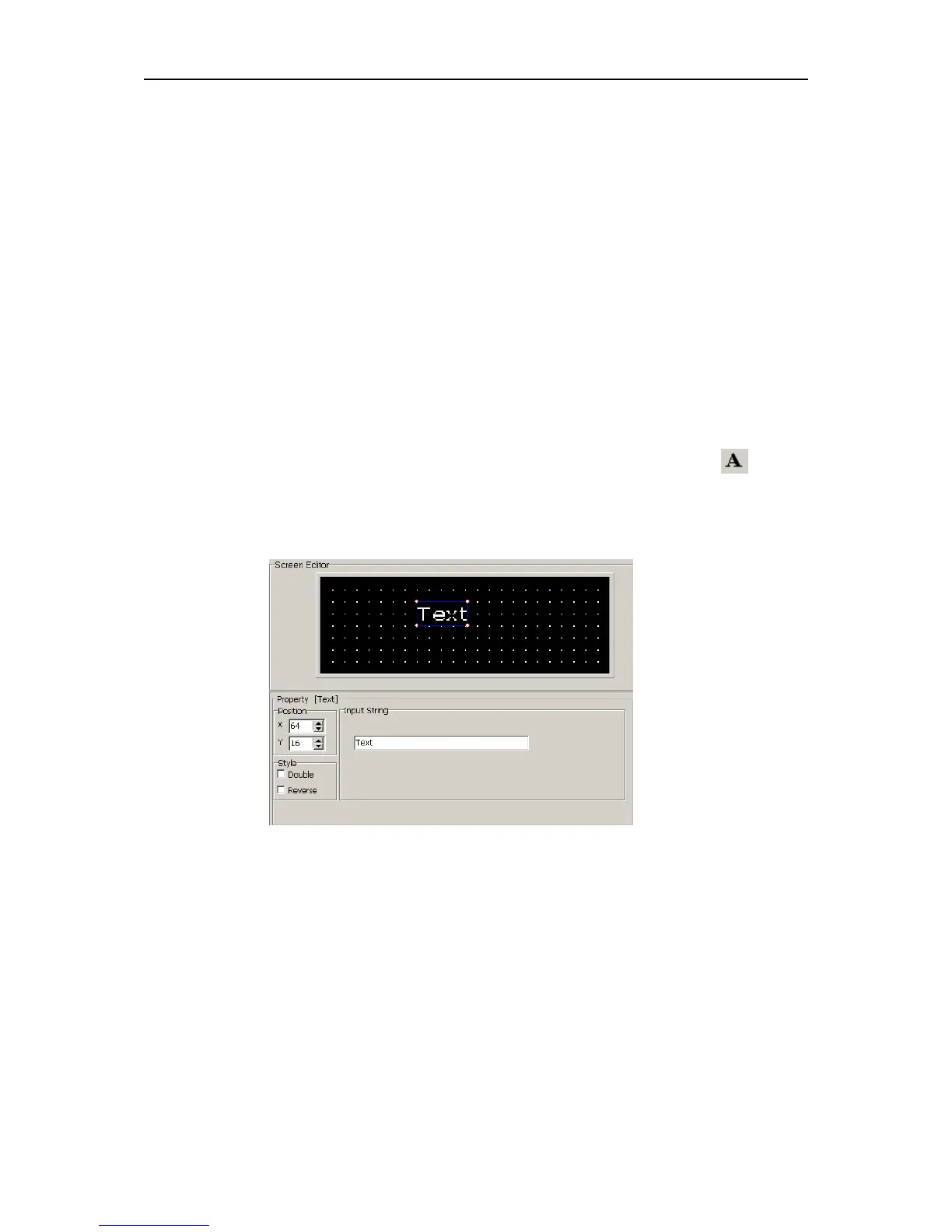

2.5.3 Static text
Click “Static Text” option once with left button of mouse of menu “Object”, or click once in
toolbar, there will be a dashed rectangular frame following and moving together with the mouse.
Move the mouse to the proper position in the edit section and then click once the left button of the
mouse to confirm, and there will be one indicator in the edit section.
▲ Position Property:
X Position: specifying the horizontal position of the component
Y Position: specifying the vertical position of the component
Note: The grid origin is at the top left corner of the screen.
▲ Input String:
To input relevant text explanation, which can be input 24 English characters*4 rows or 12
Chinese characters*4 rows
▲ Style
Double: The static textbox will be double relatively.
Reverse: The static textbox and the background color will be reversely displayed.
