Array electronic SH-300 User Manual

SH-300 Text Panel
Page 30 of 103

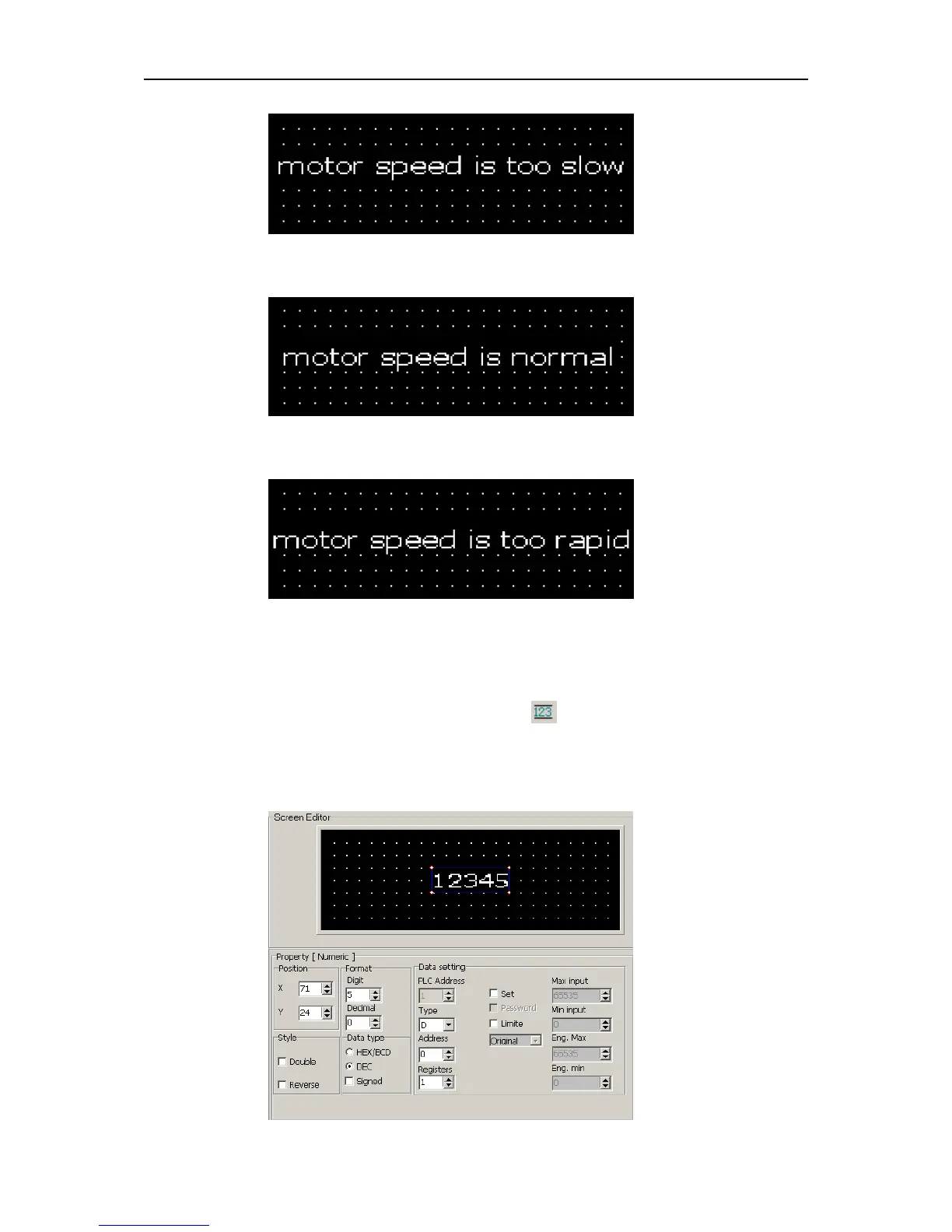

If the value of D100 is 60, the “motor speed is normal” will be displayed as follows:
If the value of D100 is 80, the “motor speed is too rapid” will be displayed as follows:
2.5.5 Register
Click “Register” option under “Object” menu, or click in toolbar, there will be a dashed
rectangular frame following and moving together with the mouse. Move the mouse to the proper
position in the edit section and then click the left button of the mouse to confirm, and there will be
one indicator in the edit section.

Array electronic SH-300 Specifications

General

Brand	Array electronic
Model	SH-300
Category	Controller
Language	English
