Caution!
The maximal number of the screen is 256.
2.4.5 Object

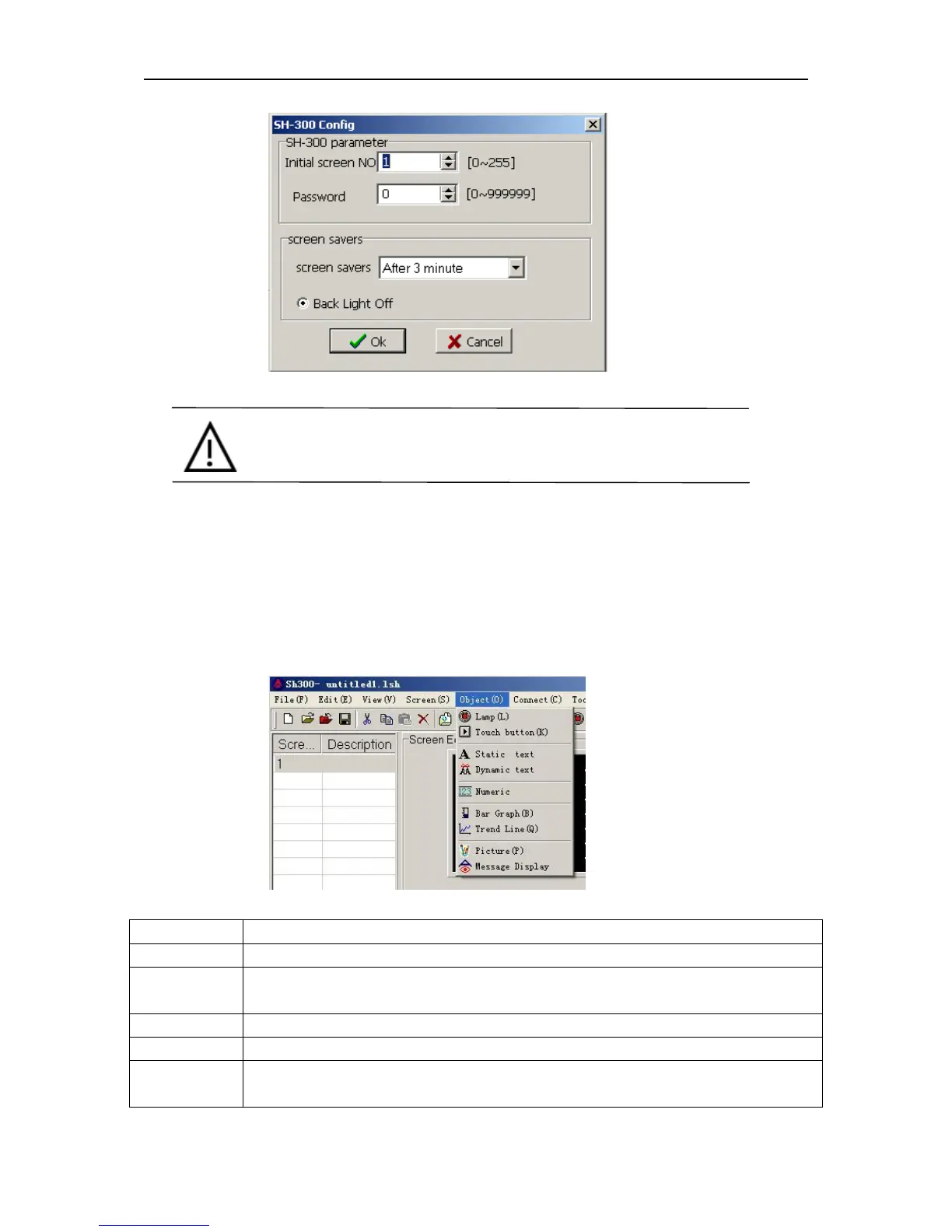

The instruction mainly includes Lamp, Touch Key, Static Text, Dynamic Text, Numeric, Process
Bar, Trend Line, Picture and Message Display.
Menu Name
Function
Lamp
Displaying on/off status of PLC inner middle relay
Touch button
14 keys defined as function keys, which being used to realize the screen-jumping,
switch control and so on functions.
Static text
Including Chinese characters, English characters and characters from other system
Dynamic text
Text contents can be controlled and changed by PLC register
Numeric
Register, placing the data-setting and data-setting components
(The operated object is the data register in PLC.)
