SH-300 User’s Manual Manipulation
Page 59 of 103
3.3 Shifting the windows

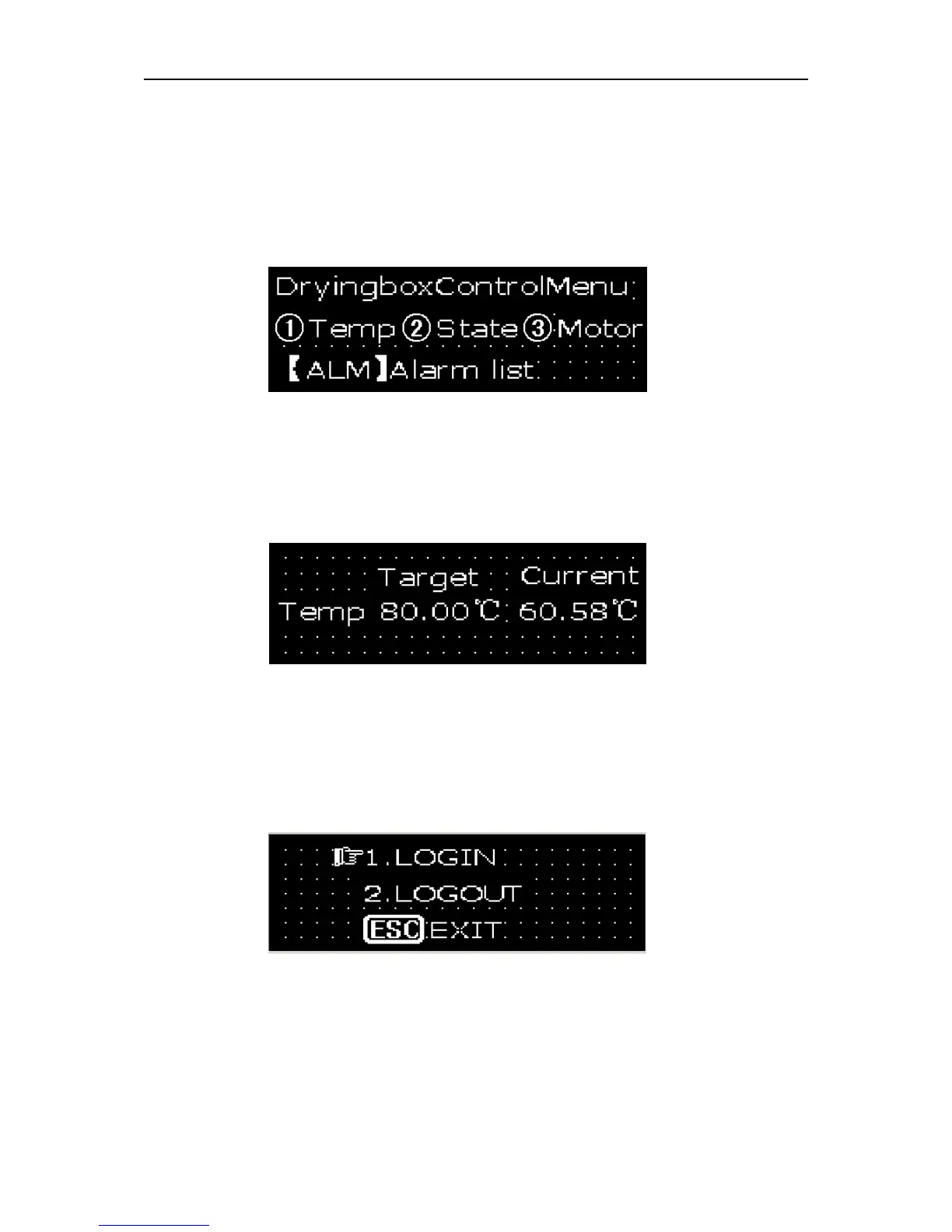

Take the project windows of the drying boxes as an example to introduce the manipulation of
SH-300.
SH-300 displays window No.1 at first (the initial window is No.1).
Window No.1 is a main menu window. Pressing ① switch to the window of temperature
setting(No.2) that is shown as follows:
3.4 System Password
After setting system password, you must input the password before you change the data. Then
press “SET” key ,it will appear the picture as follows :
Select “1 ,LOGIN” “2.LOGOUT” or “EXIT” with Up, Down keys and then press “ENT”
Select “1 ,LOGIN” the window will display as follows:
(select 2 to logout, select 3 to exit the window.)
