SH-300 User’s Manual Connection with PLC
Page 69 of 103

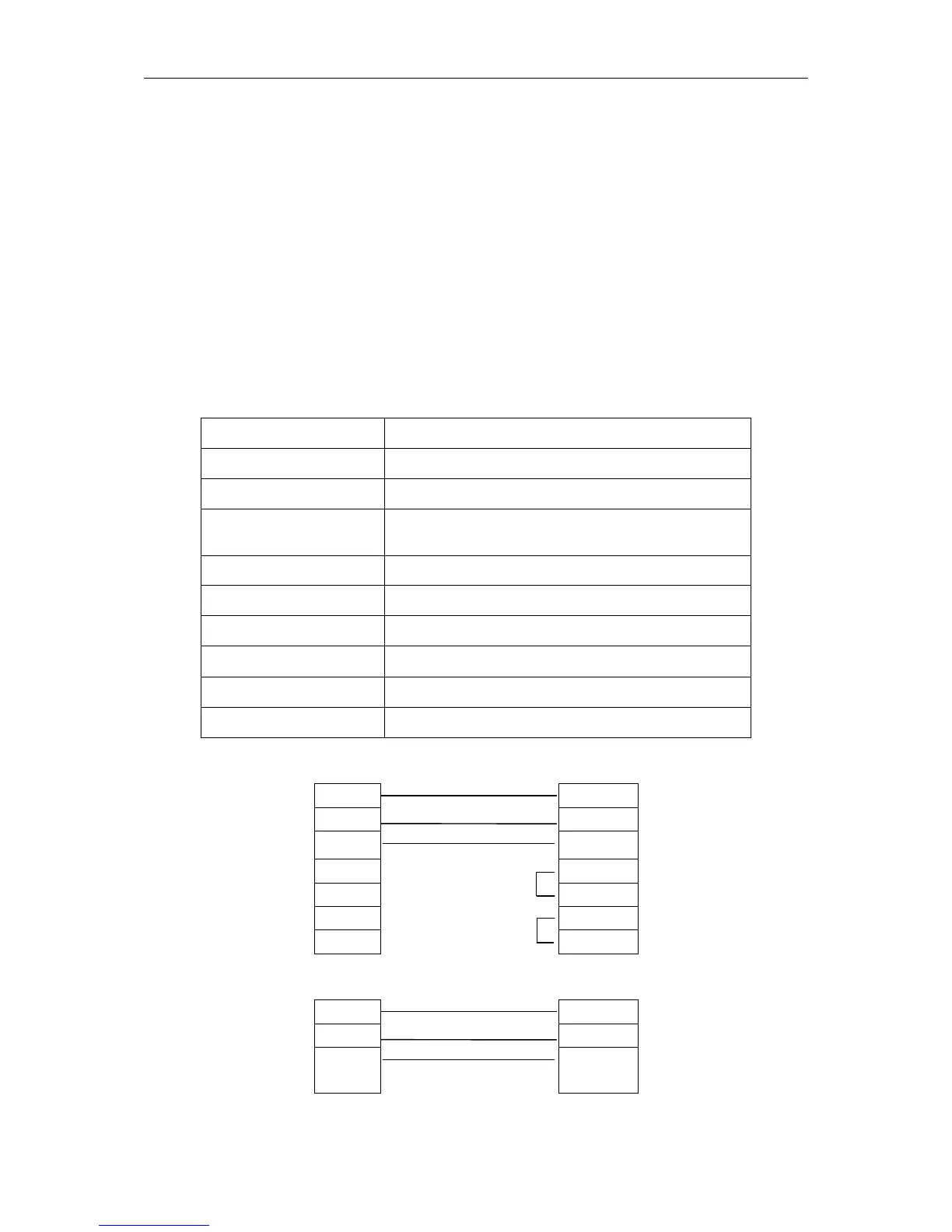

4.5 Panasonic FP Series
SH-300 can communicate with Panasonic FP series PLC, the communication port is the
programming port of PLC or external communication port.
SH-300 software configuration:
Item
Content
SH-300 COM port
9 pin COM port
PLC COM port
Programming port
Default parameter
9600bps、8bits、1stop、0dd
Station No.
1-32 ,1 is Windows default
Distance (Max.)
15m
Communication mode
RS232
Cable type
Special cable
Inner relay address
R0000-R875F
Register address
DT0000-DT6134
Connection guidance of SH-CAB-FP0 :
2 RXD
2 TXD
SH-300 side
3 TXD
3 RXD
PLC side
9 pin D shape
5 GND
7 GND
9 pin D shape
Female plug
4
Male plug
5
8
9
Connection guidance of SH-CAB-FP1 :
SH-300 side
2 RXD
2 TXD
PLC side
9 pin D shape
3 TXD
3 RXD
5 pin D shape
Female plug
5 GND
１GND
Male plug
