2.4.4 Screen

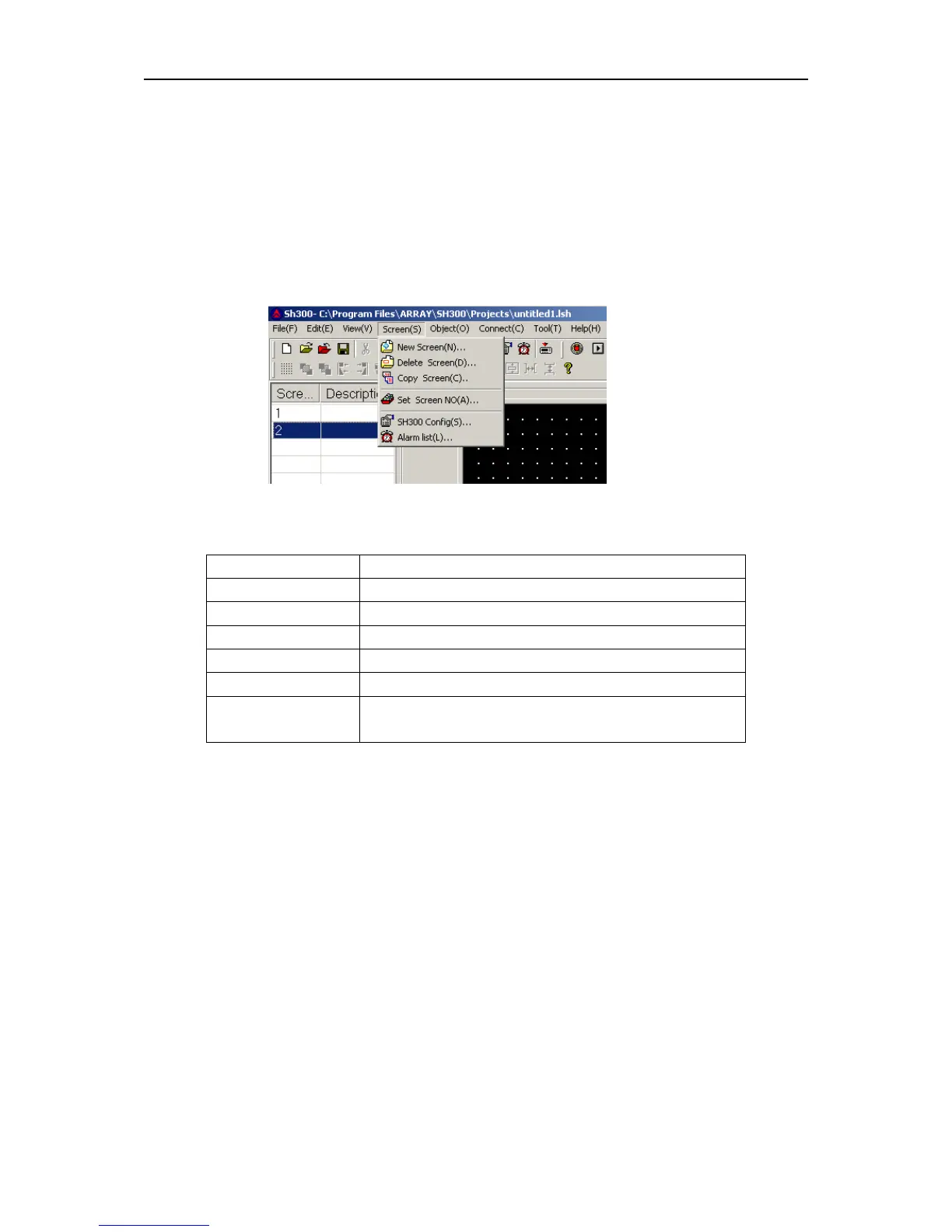

This instruction mainly includes new screen, delete screen, copy screen, set screen No., SH300
config and alarm list.
Menu Name
Function
New screen
Create a new screen
Delete screen
Delete the current screen
Copy screen
Copy the current screen
Set screen No.
Reset the screen number
SH300 Config
Set relative parameter of SH-300
Alarm list
Login the alarm list information; each piece of the
information corresponds to a status of a middle relay
The “SH300 Config(S)…” option is used to set relative parameter of SH-300, such as set the boot
screen number (the default screen number is 1.), password protection (the password will be
number from 0 to 99999.) and screen save.
Screen Save
The duration time of the background light can be set freely.
When “Never” is selected, the background light will be on all the time;
When “After 3 minute ” is selected, the background light will be off 3 minutes later, if there is no
operation on the key.
Notes: Pressing on any key will wake up the screen background light.
