SH-300 User’s Manual Connection with PLC
Page 72 of 103
4.6 Vigor VH Series
SH-300 can communicate with Vigor VH series PLC, the communication port is the Programme
device assistant port of PLC
SH-300 software configuration:
Item
Content
SH-300 COM port
9 pin COM port
PLC COM port
Programming port
Default parameter
19200bps、7bits、1stop、Even
Station No.
0-255 ,0 is Windows default
Distance (Max.)
15m
Communication mode
RS232
Cable type
special cable
Inner relay address
M0-M5119
Register address
D0-D8191

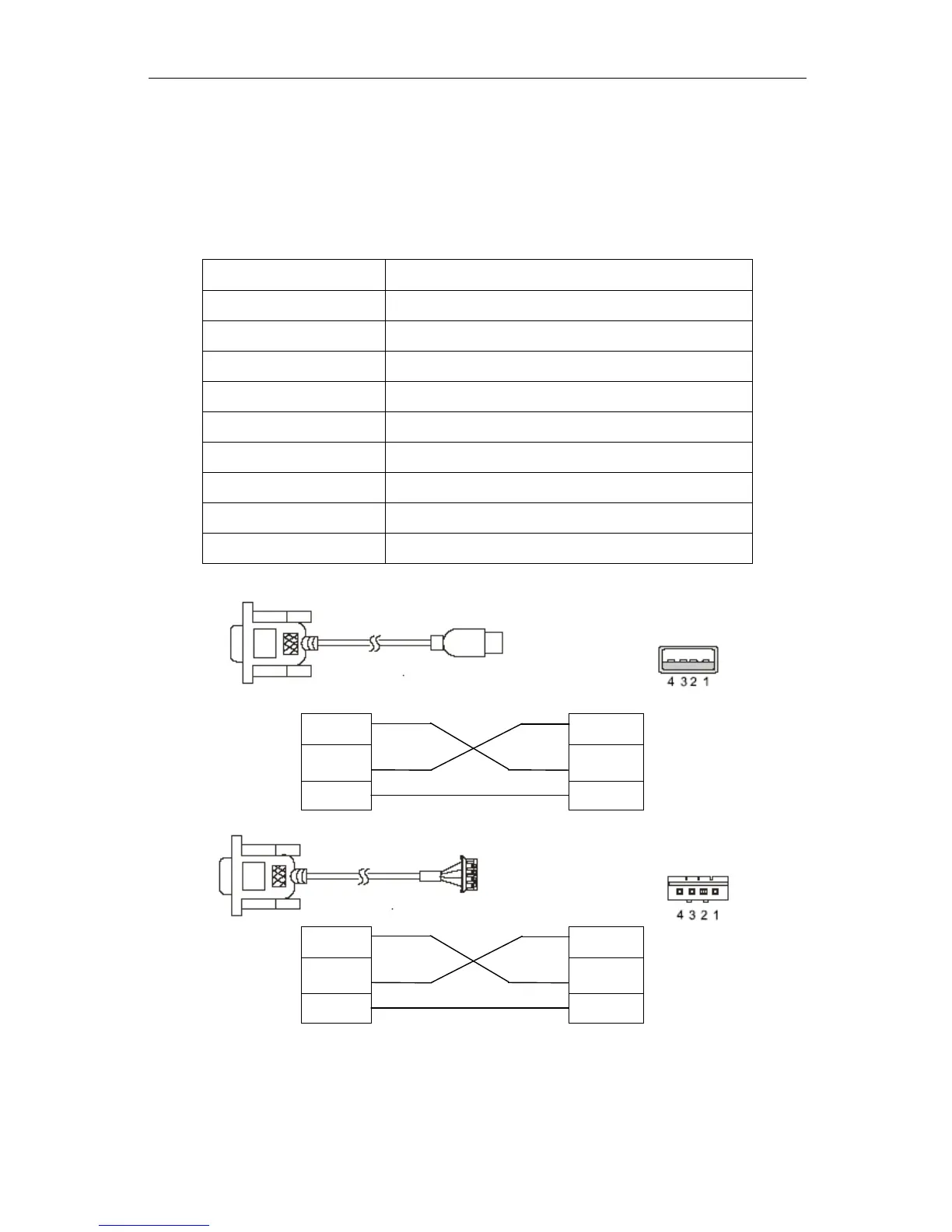

Connection guidance of special cable
SH-300 side
2 RXD
2 RXD
PLC side
9 pin D shape
Female plug
3 TXD
3 TXD
USB male plug
5 GND
4 GND
SH-300 side
2 RXD
2 RXD
PLC side
9 pin D shape
Female plug
3 TXD
3 TXD
JST 4P 4pin
Female plug
5 GND
4 GND
( when SH-300 communicates with Vigor VH series PLC you are recommended to use the
programming cable )
