SH-300

User’s Manual Connection with PLC

Page 75 of 103

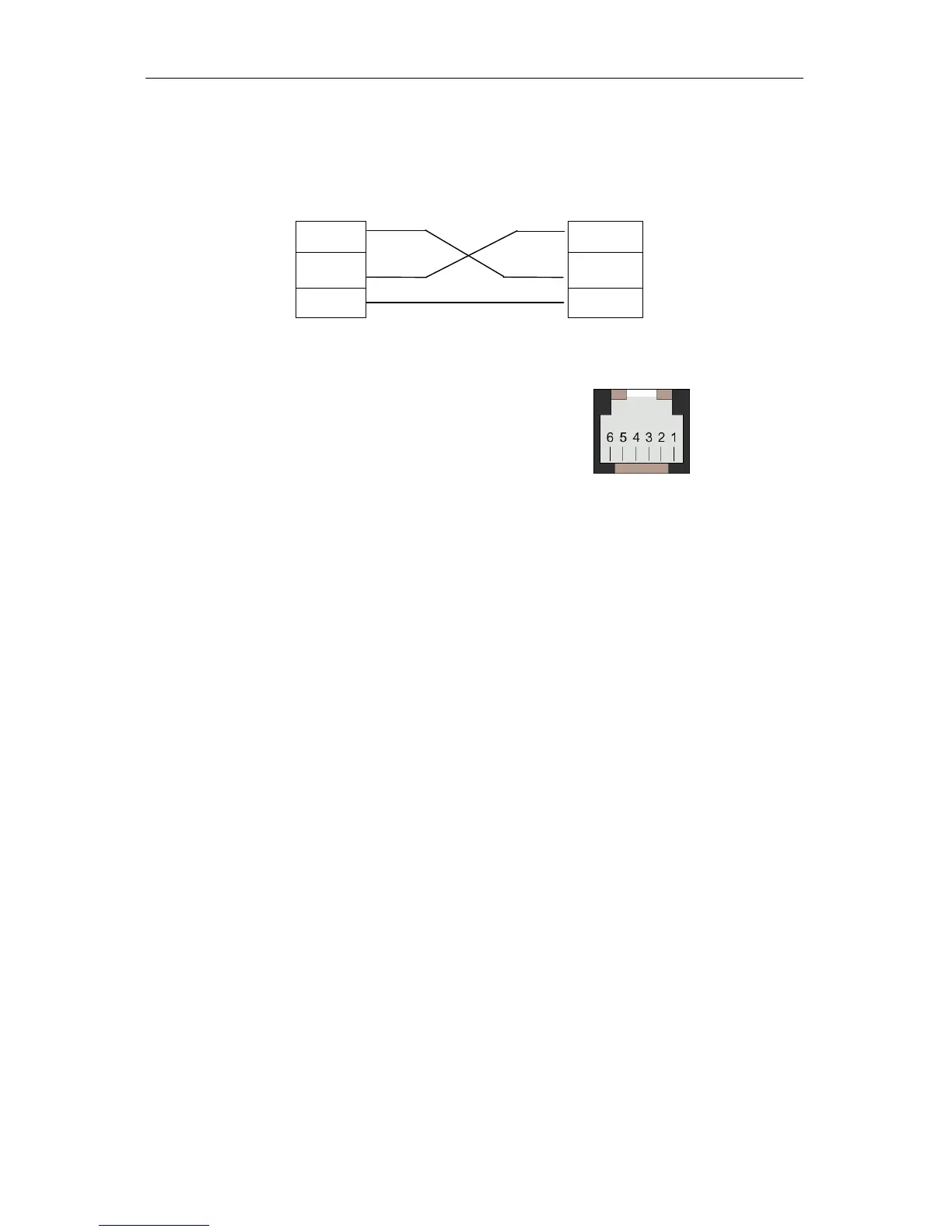

Connection guidance of port 1 special cable：

SH-300 side

2 RXD

3 RXD

9 pin D shape

Female plug

3 TXD

4 TXD

PLC side

5 GND

1 GND

（6PIN port1）

( when SH-300 communicates with ADC DL05 series PLC you are recommended to use the the

programming cable )
