SH-300
User’s Manual Connection with PLC
Page 89 of 103

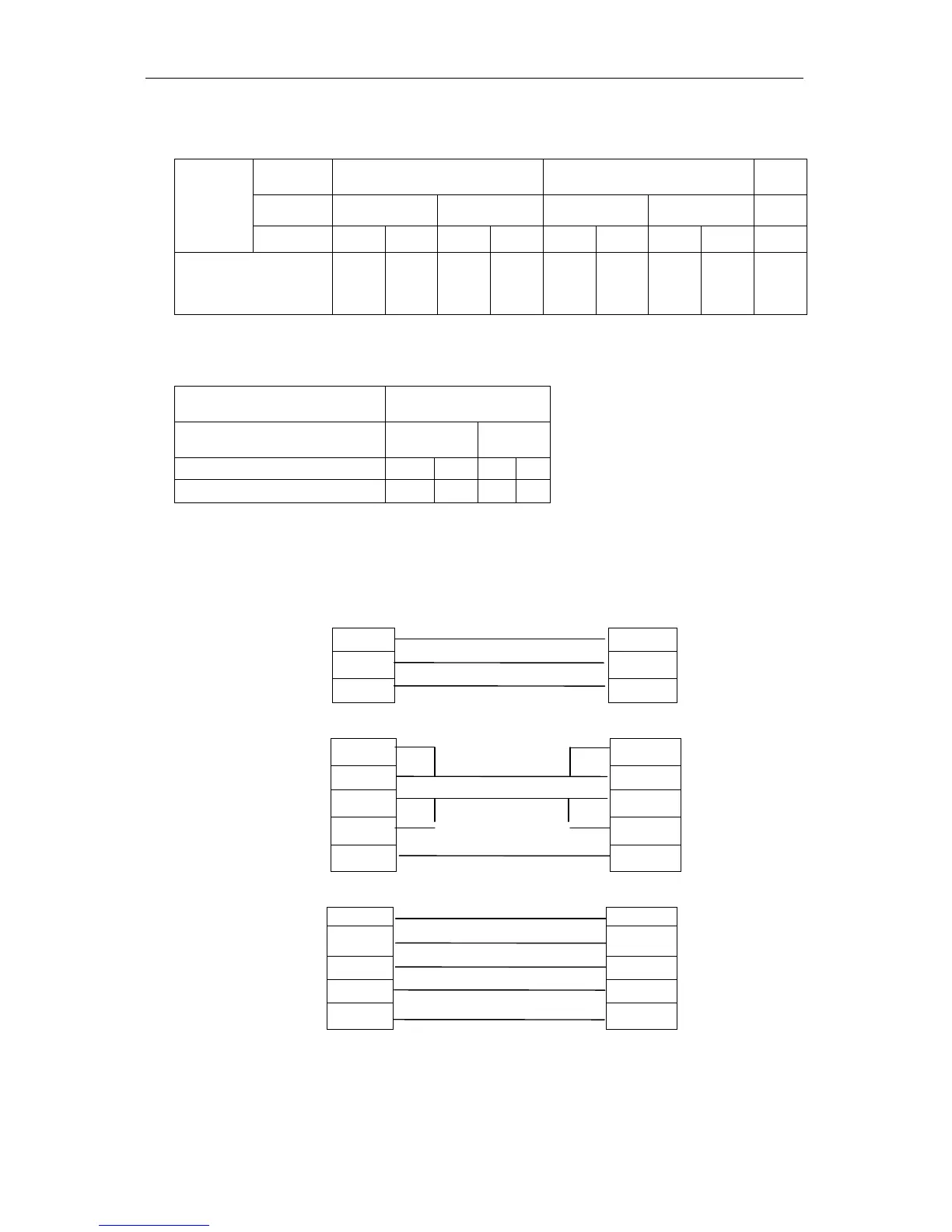

If Registers are addressed starting at B1, W1,DW1. Allocation map of memory address is shown
as following:
Example: Write the double word values of 075BCD15 into Register DW0, the value of per byte is
distributed as following:
The value of DW0 is 075BCD15
when Register is addressed as double word. The value of W0 is CD15, W2 is 075B when
Register is addressed as word. The value of B0 is 15, B1 is CD, B2 is 5B, B3 is 07 when Register
is addressed as byte.
2. Connection guidance of special cable
FREE-RS232
To Next Page
