UPAC- Unite Packet for Messaging and Alarm
17

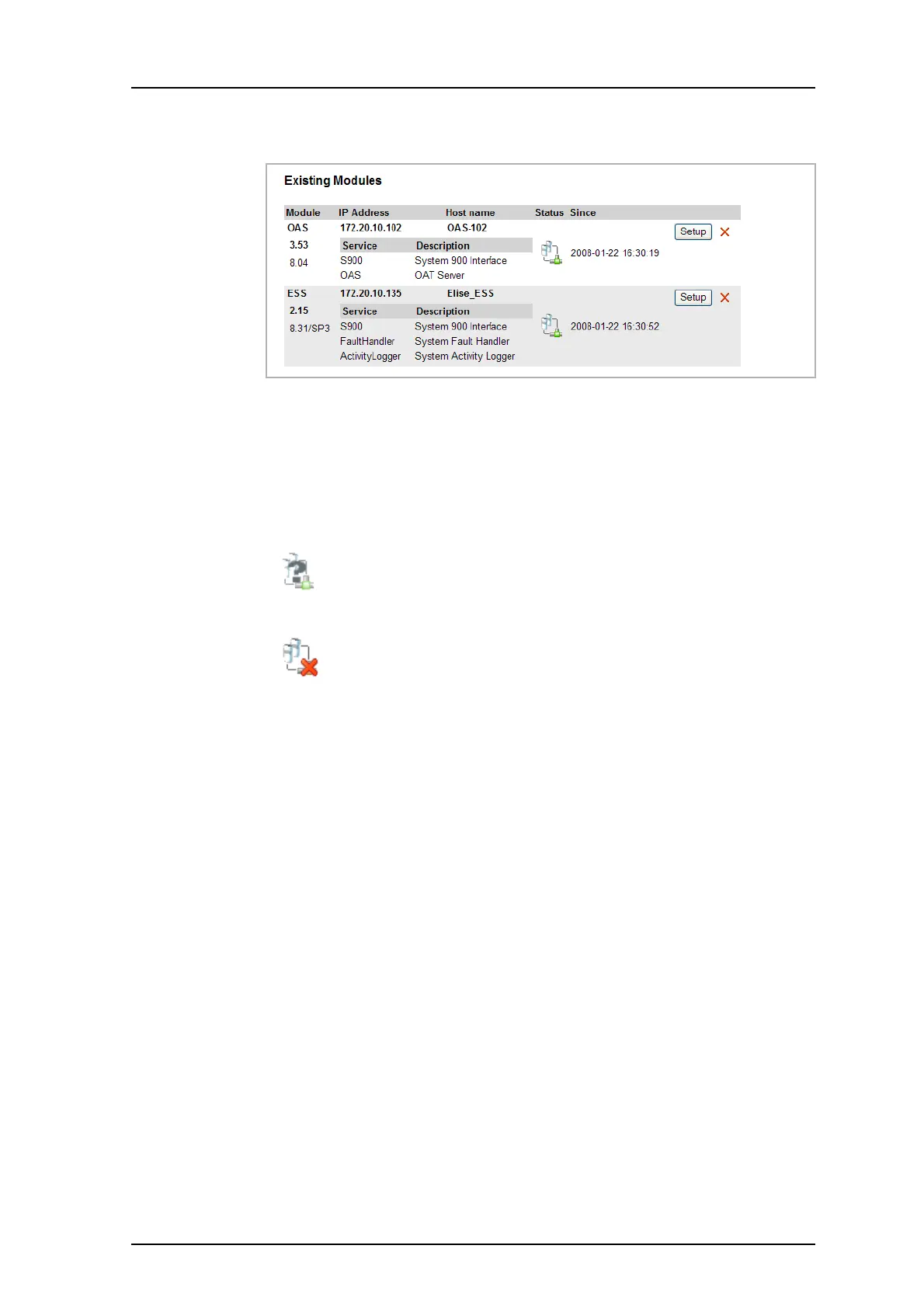

Figure 13. List of existing modules at a definite time
4.4.1 System Survey Status Symbols
When a system or module is surveyed, but not supervised, the status symbol for each
module will show Module not supervised, see below.
4.4.2 Unite Module Overview
When all modules have been set up for survey, the Unite Module overview page gives a
snapshot of the system at the time stated uppermost on the page.
If a new system survey is wanted, click the “Survey System” button again. If any new
modules have been added to the system since the last survey, they will be shown in the
“New modules” list and can be set up to be supervised.
4.4.3 Remove Unite Modules from the Overview
If a module is physically removed from the system and a new survey is made, the module
is not automatically removed from the Unite Module overview page. The result of the
survey for that module will be “Module lost”.
To remove the module from the Unite Module overview page, click the “Delete” symbol.
A dialogue window opens, click “OK” to remove the module.
Figure 25.
Symbol Description
Module not supervised
Module lost
