ASCOM UPAC Series User Manual

TD 92483GB
2008-06-05/ Ver. B
Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
21
4.6 Alarm Handling
The alarm handling included in UPAC makes it possible to trigger on alarms and data from
handsets in the Cordless Telephone System. Activated inputs on UPAC, or a module
connected to the A-bus, can also be used as a trigger. As a reaction to the incoming
information, messages can be sent to handsets and it is also possible to activate outputs
on the UPAC or modules connected to the A-bus.

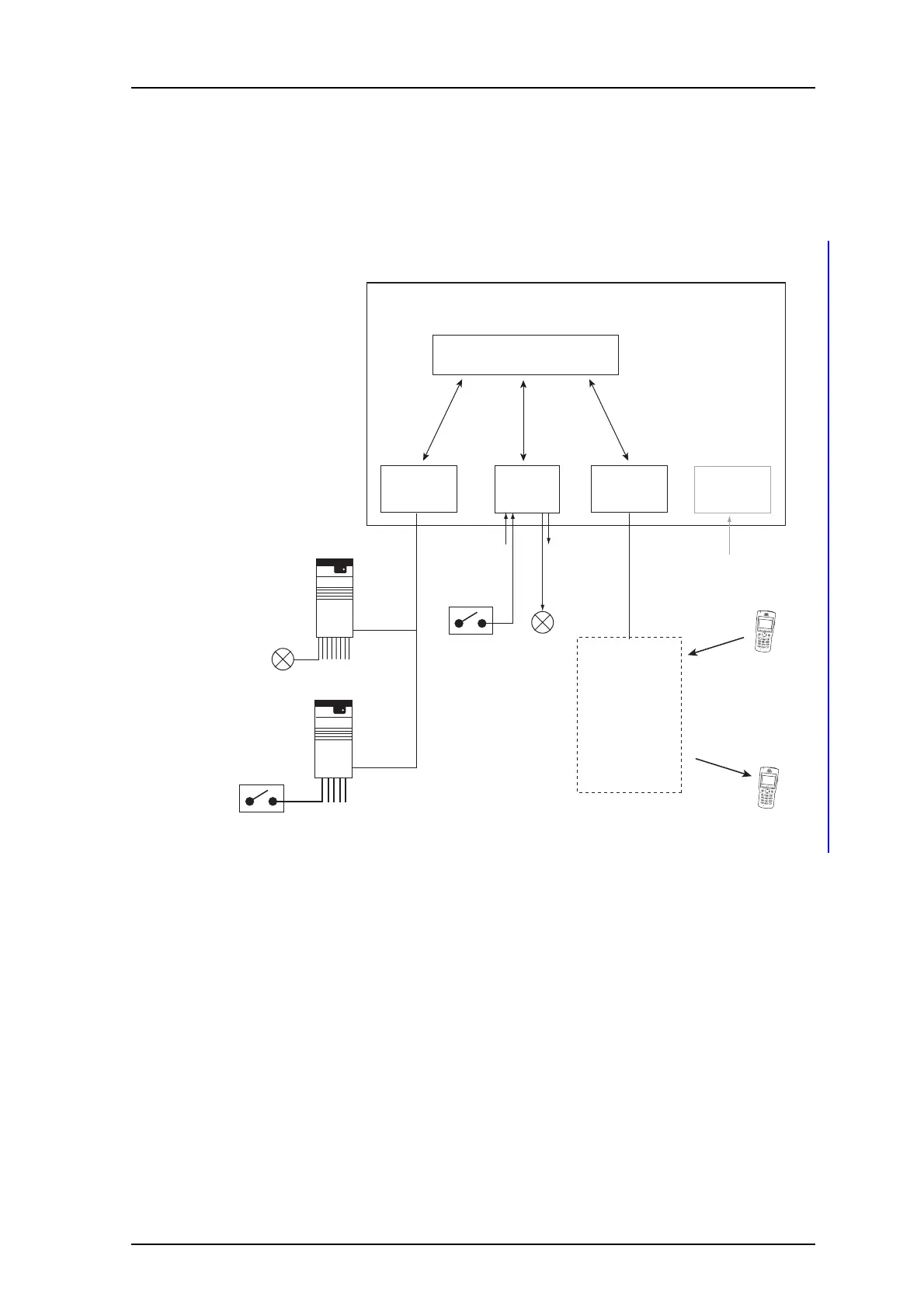

Figure 15. Communication flow for the Alarm Handling and external systems.
Figure 30.
900
Interface
DECT
Interface
Alarm Handling
I/O
Handler
Cordless
Telephone
System
UPAC
Alarm
Mobile Data
Message
Input
Activity
Input Activity
Activate
Output
Activate
Output
A-bus
027
UPac Inputs UPac Outputs
Output module
Alarm module
Serial
Interface
External equipment
