Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
3
• For settings included in UPAC Off-site Pack - LOP licence.
Refer to chapters:
- as in UPAC Basic - M1/L1 licence.
- chapter 11 SMS via GSM Modem on page 63
A summary of extended configuration can be found in chapter 2.9 Optional Settings on
page 10.
Daily Operation
• For the daily operation i.e. creating and sending messages, refer to chapter 13
Operation on page 76.
1.3 Included in Delivery
• ELISE2 hardware
• “Getting started” instructions leaflet
• Ferrite bead
• Instructions leaflet for attaching the ferrite bead to a power supply cable
• Ordinary RJ45 (straight through pinouts) network cable for connection to the LAN
• Licence certificate
1.4 Technical Solution

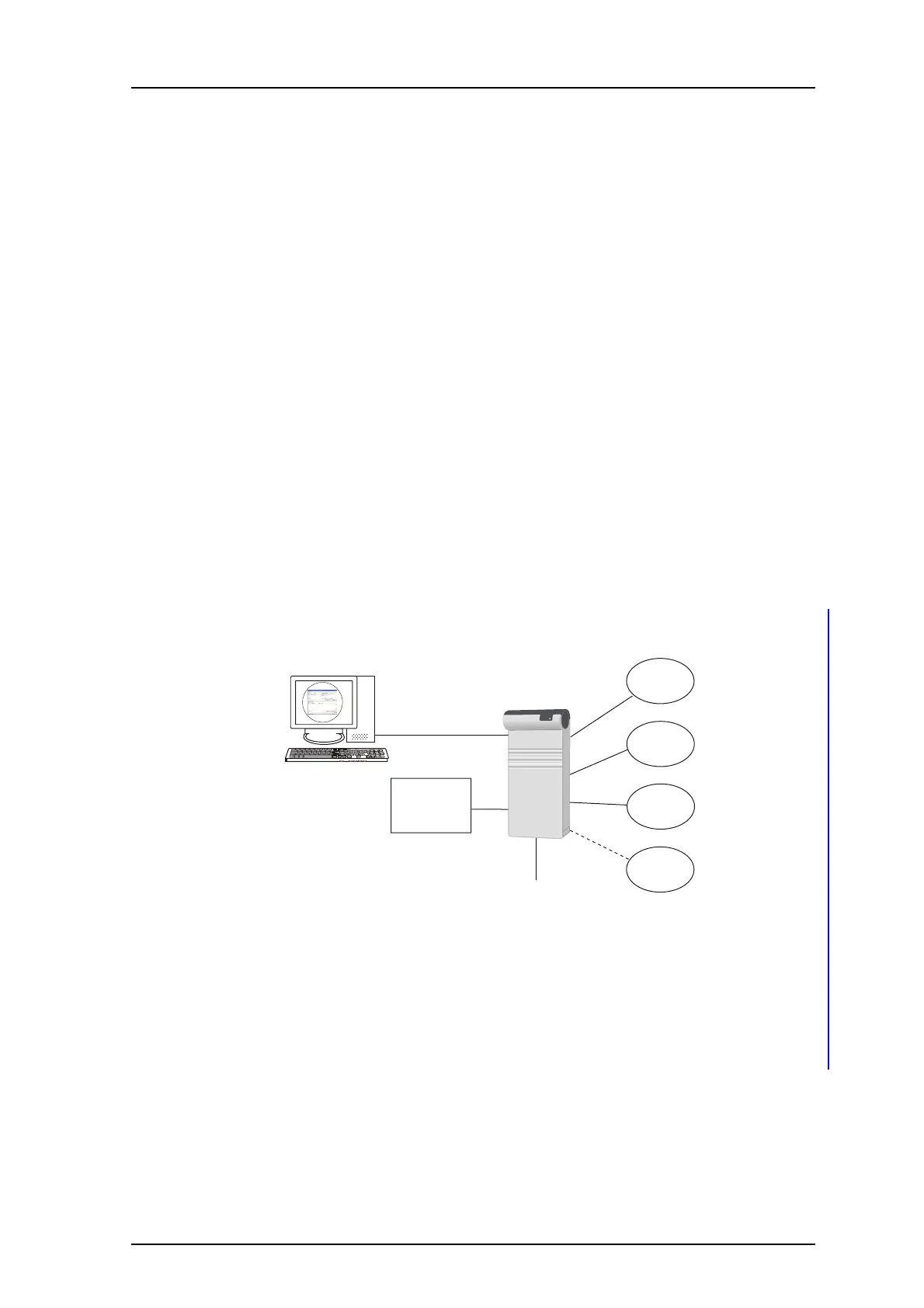

Figure 1. Solution overview
Besides the possibility to connect to GSM, Paging system, IP- DECT system and via Unite to
WiFi system, the UPAC can be connected to and receive pagings from external equipment.
Note: It is not possible to combine a GSM modem and a DECT system that needs to be
connected via the serial port (for example the DECT system DCT-1800) because the same
serial port (J11) on UPAC is used. A separate GSM connection product is then required.
1.5 Requirements
Refer to the Data Sheet UPAC – Unite Packet for Messaging and Alarm TD 92482GB.
Figure 1.
104
Web based application
Paging
IP-DECT
GSM
WiFi
UPAC
Customer
system
External equipment
