Appendix C: Fault Handling Configuration Example

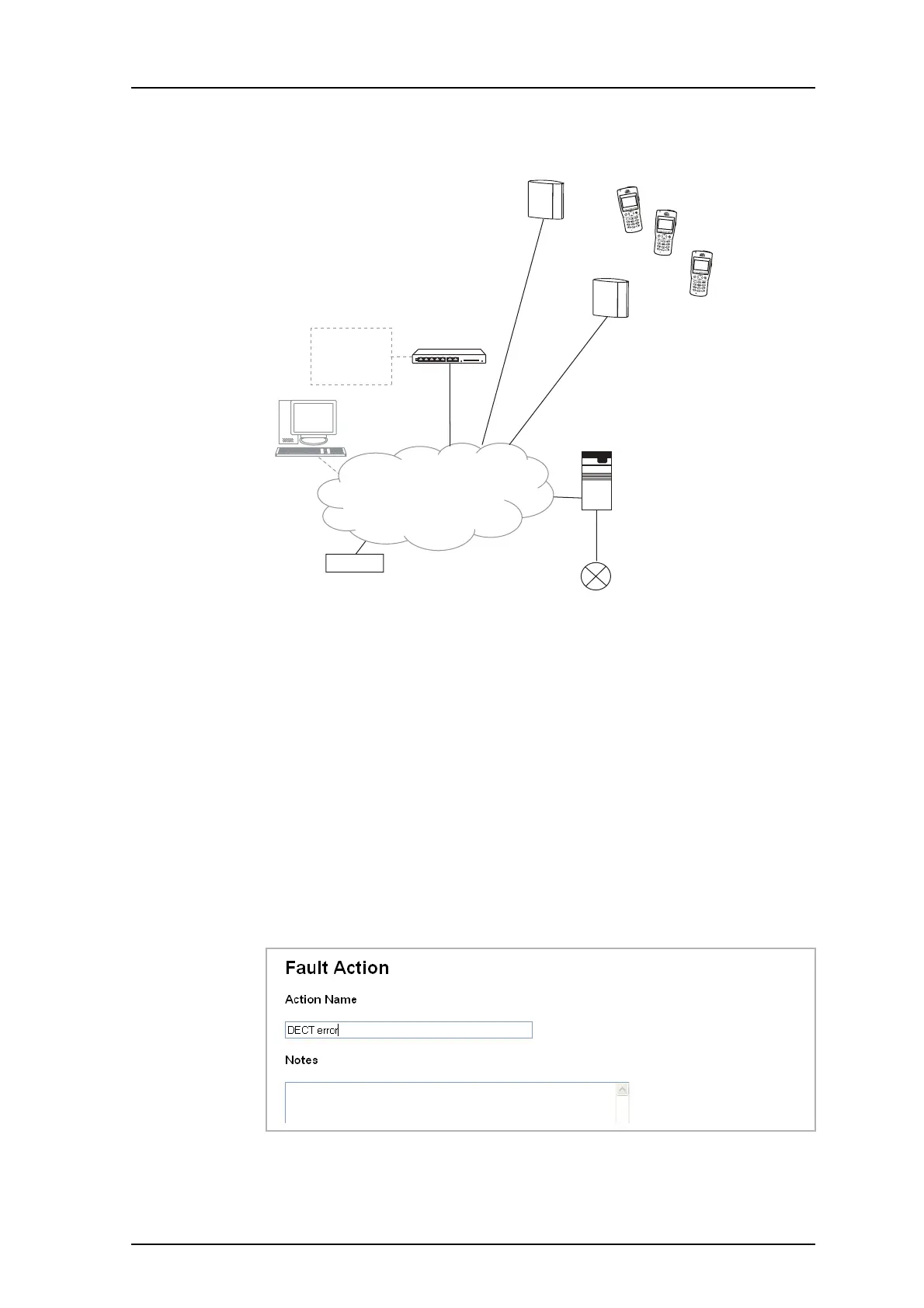

Figure 48. UPAC fault handling in an IP-DECT system installation.
This example shows a UPAC connected to an IP-DECT System. A lamp is connected to the
UPAC error relay and the UPAC is configured to activate the error relay and light the lamp
for 60 seconds when a DECT error is reported. For extra security, UPAC is also configured
to send an e-mail to a user in the system.
Note: Requires UPAC Security Pack licence (UPAC-LSP) and that the IP address of the mail
server has been set in the wizard.
Settings
The actions are set up to trigger when UPAC detects an error on the connection to the IP-
DECT system. The actions on the triggers are to light a lamp and to send an e-mail.
1 Select Fault Handling > Fault Actions on the UPAC Configuration page.
2 Enter a name for the fault action, in this example DECT error.
Figure 111.
Figure 112.
