TD 92483GB
2008-06-05/ Ver. B
Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
43
10.1.2 Supervision of Auxiliary Equipment
The UPAC can be configured to generate a Status Log when receiving an Input Activity.
This can be used by equipment that indicates faults via a physical output to send faults to
the Unite system. For each input that is monitored, equipment name, fault level and event
description can be configured. It is also possible to set that the sent Status Log should be
persistent. The persistent fault will be cleared when the input is deactivated. The inputs
are defined on the I/O Setup page.
When monitoring is started/ended, an Activity Log with information about the changes
will be sent.
1 Click “Configuration” on the start page.
2 Select Supervision > Auxiliary Equipment in the left menu on UPAC Configuration
page.

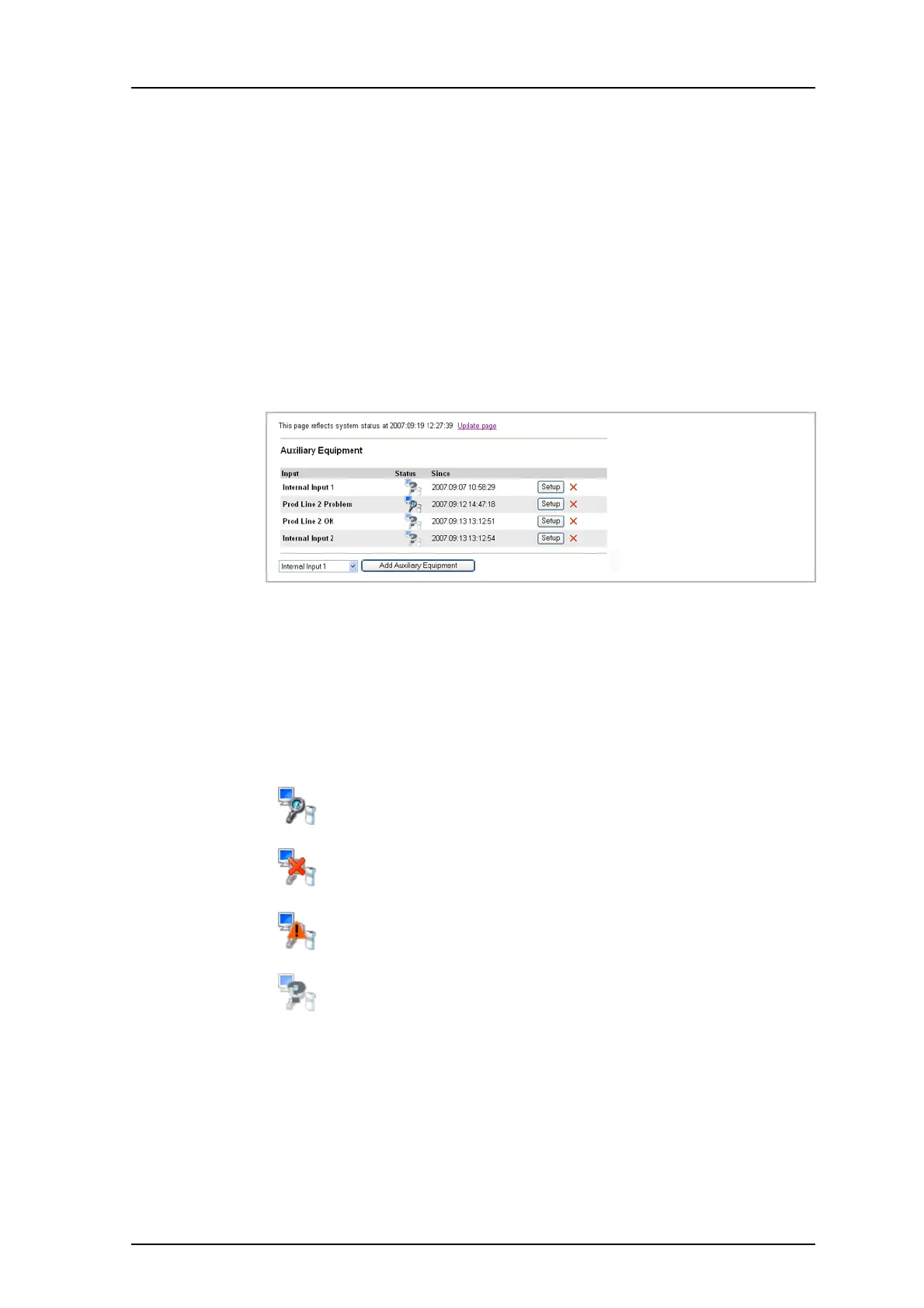

Adding Auxiliary Equipment
1 Select an Input from the drop-down list that contain all inputs configured on the I/O
Setup page.
2 Click “Add Auxiliary Equipment” to add selected input.
Status Symbols
Figure 58.
Symbol Description
Monitored
The input is not defined in the I/O setup.
The auxiliary equipment has activated the input,
i.e. signals a fault.
Not monitored
