ASCOM UPAC Series - Changing Supervision Settings; Removing IP Equipment

TD 92483GB
2008-06-05/ Ver. B
Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
42
Changing Supervision Settings

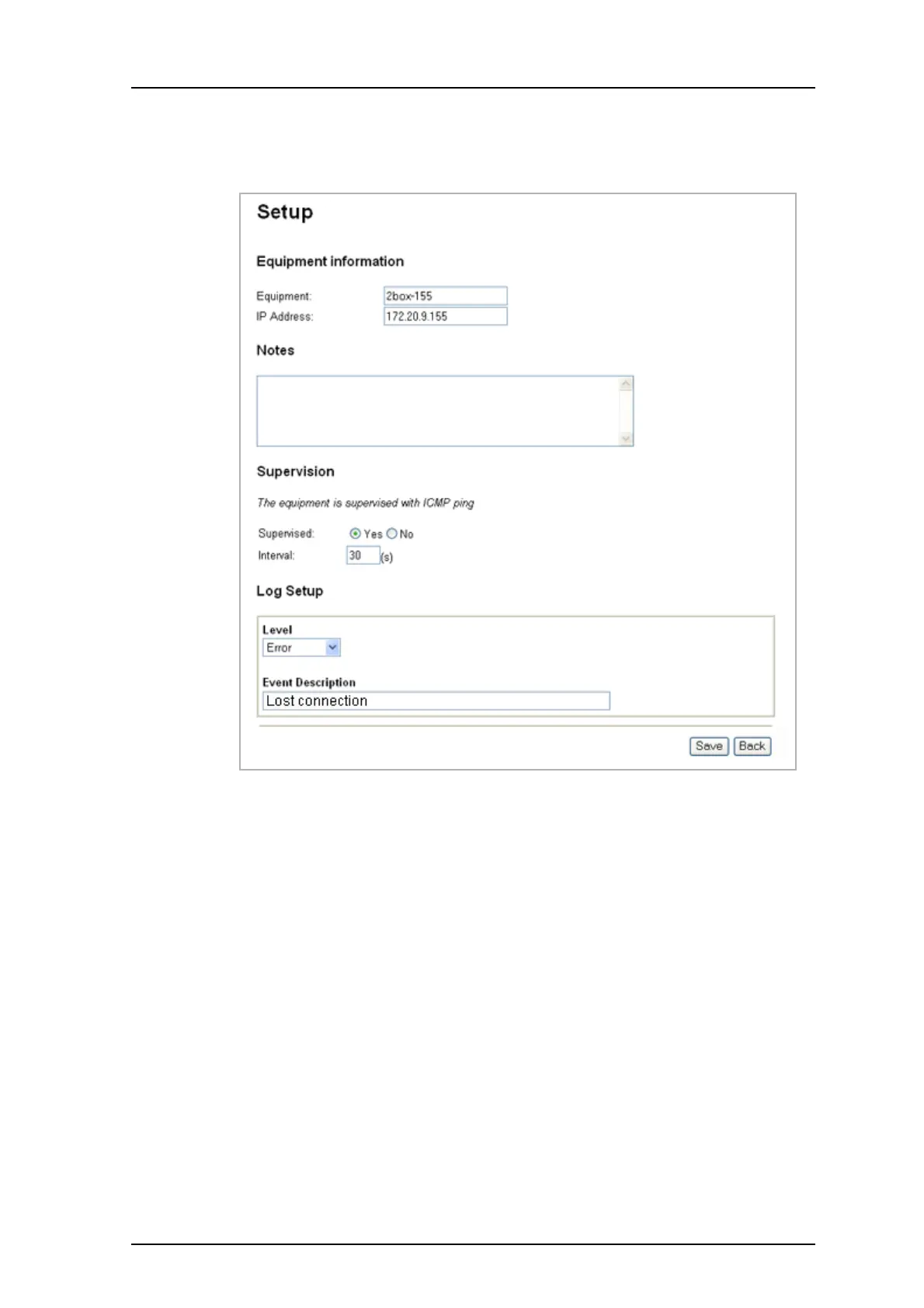

1 Click “Setup” to set up supervision parameters for the equipment.
2 Enter a descriptive text in the Equipment field. Equipment is shown as Module in
the Status Log.
3 Change IP address or host name if the address of the equipment has changed.
4 Select if the equipment should be supervised or not.
5 Enter the time between supervision requests.
6 Select fault level from the drop-down list to use in the transmitted Status Log.
7 Enter a description of the event.
8 Click “Save”.
Removing IP Equipment
Remove IP equipment by clicking the “Delete” symbol. A dialogue window opens, click
“OK” to remove the IP equipment.
Figure 57.
