Supervision of the IP Equipment
The UPAC can supervise IP Equipment by sending ICMP ping requests. If the equipment
does not answer on the sent request, a persistent Status Log will be generated. It includes
the configured Equipment name and IP address or host name. The default level is “Error”,
but can be changed on the setup page. The persistent fault will be cleared when the
equipment responds again.
The UPAC can send a supervision request (either to a Unite module or an ICMP ping) every
2 seconds, i.e. if the interval is set to 30 seconds up to 15 modules (Unite or IP Equipment)
can be supervised. If this limit is exceeded, the interval will automatically be increased.
When supervision is started/ended and when the supervision interval is changed, an
Activity Log with information about the changes will be sent.
1 Click “Configuration” on the start page.
2 Select Supervision > IP Equipment in the left menu on UPAC Configuration page.
Adding IP Equipment
1 Enter IP address or host name.
2 Click “Add IP Equipment” to add equipment to the survey.
Status Symbols

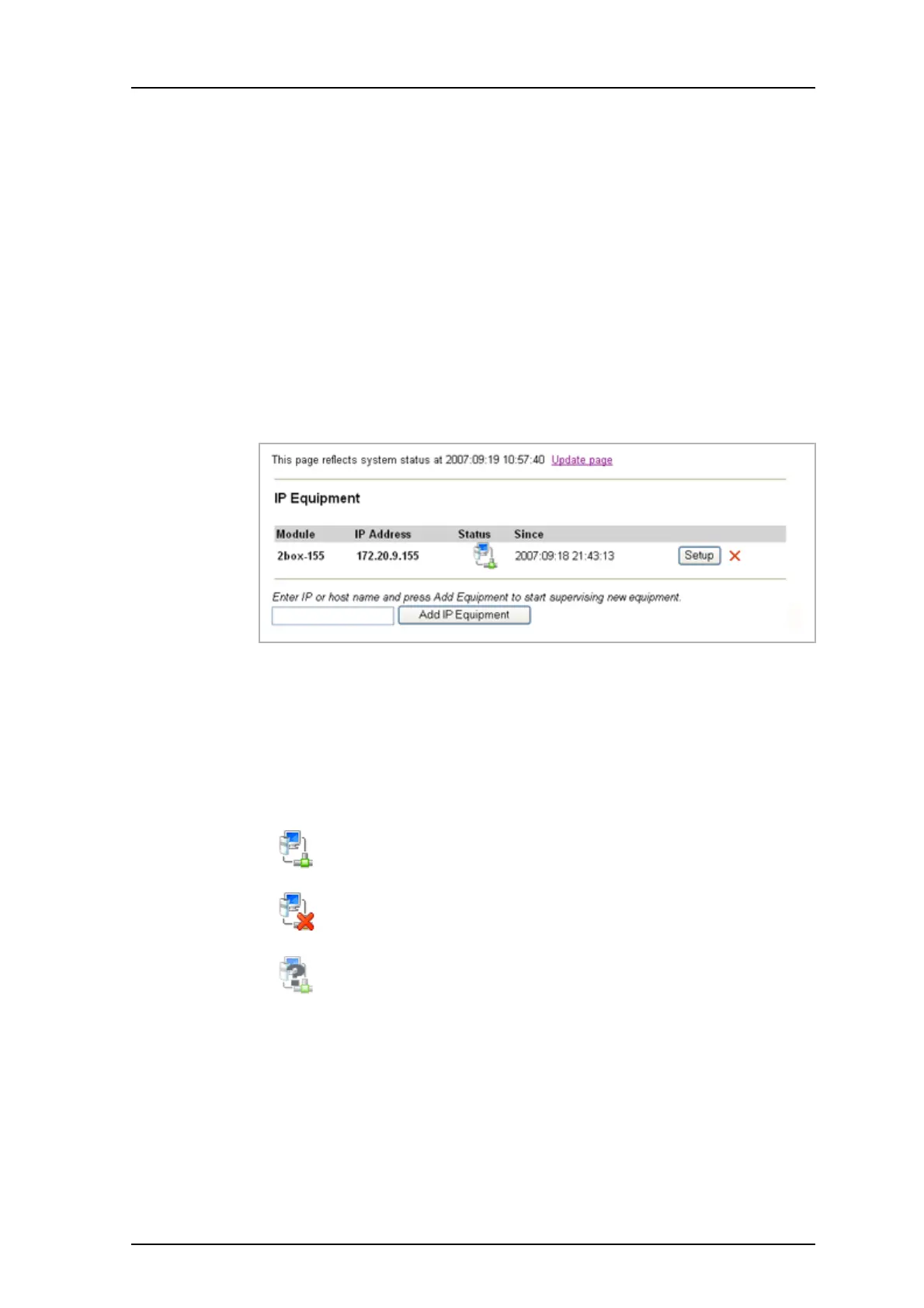

Figure 56.
Symbol Description
Supervision OK
Equipment lost
Not Supervised
