TD 92483GB
2008-06-05/ Ver. B
Installation and Operation Manual
UPAC- Unite Packet for Messaging and Alarm
89
Example 1
A push-button alarm (double press) is received from 1440. A message is sent to the other
Portable Devices and a siren starts to sound. The alarm is cancelled by sending the data
1440 and then the siren stops.
Two alarm actions are created. One that handles the push-button alarm called “Push-
button alarm from 1440” and one that handles the cancellation called “Alarm
cancellation”.
Push-button alarm from 1440
Select Alarm handling, Alarm Actions and set Alarm Trigger “Push-button double press”

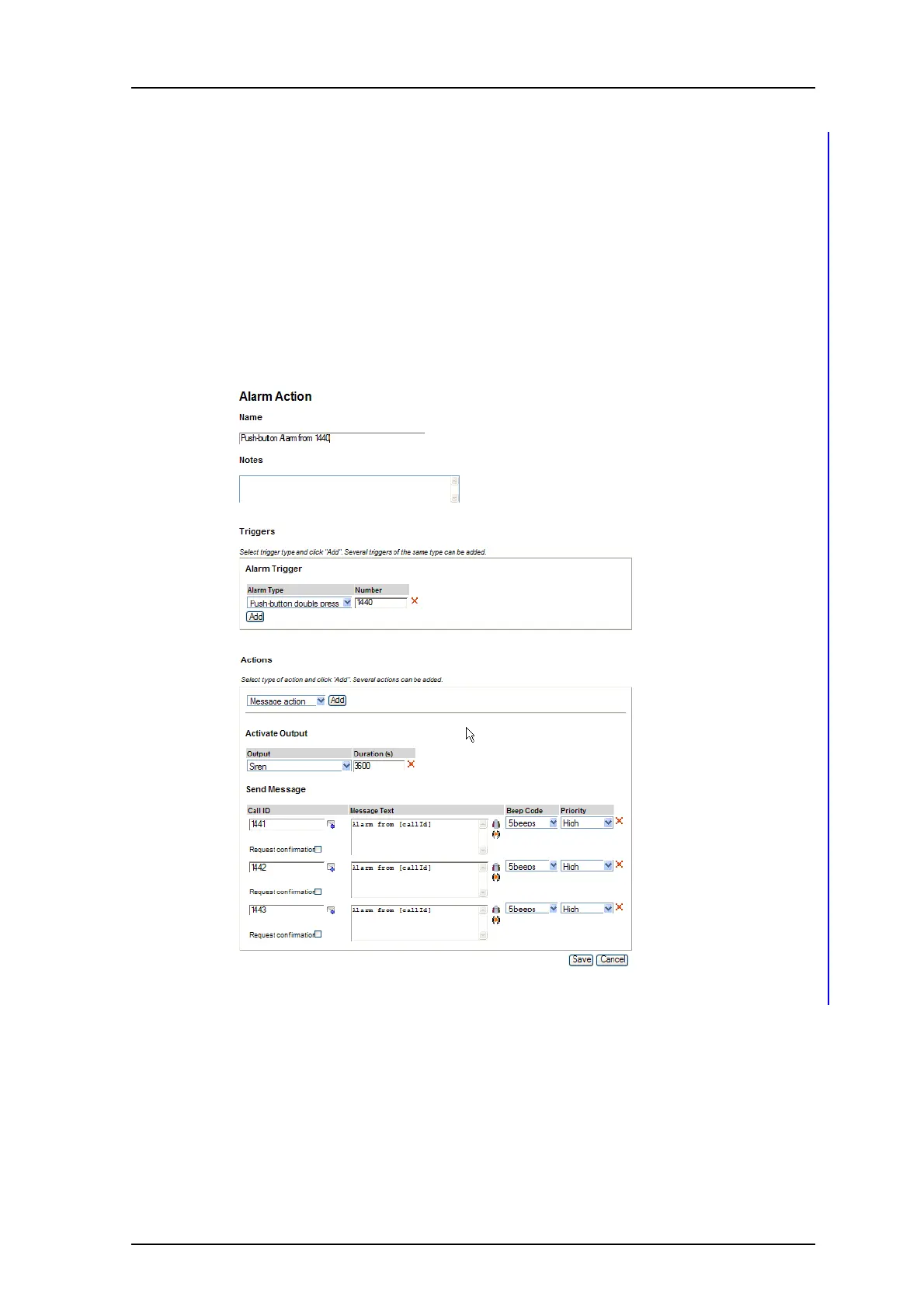

Figure 51. Alarm trigger setup.
Figure 118.
