Installation and Operation Manual

UPAC- Unite Packet for Messaging and Alarm

Cold-storage room door closed

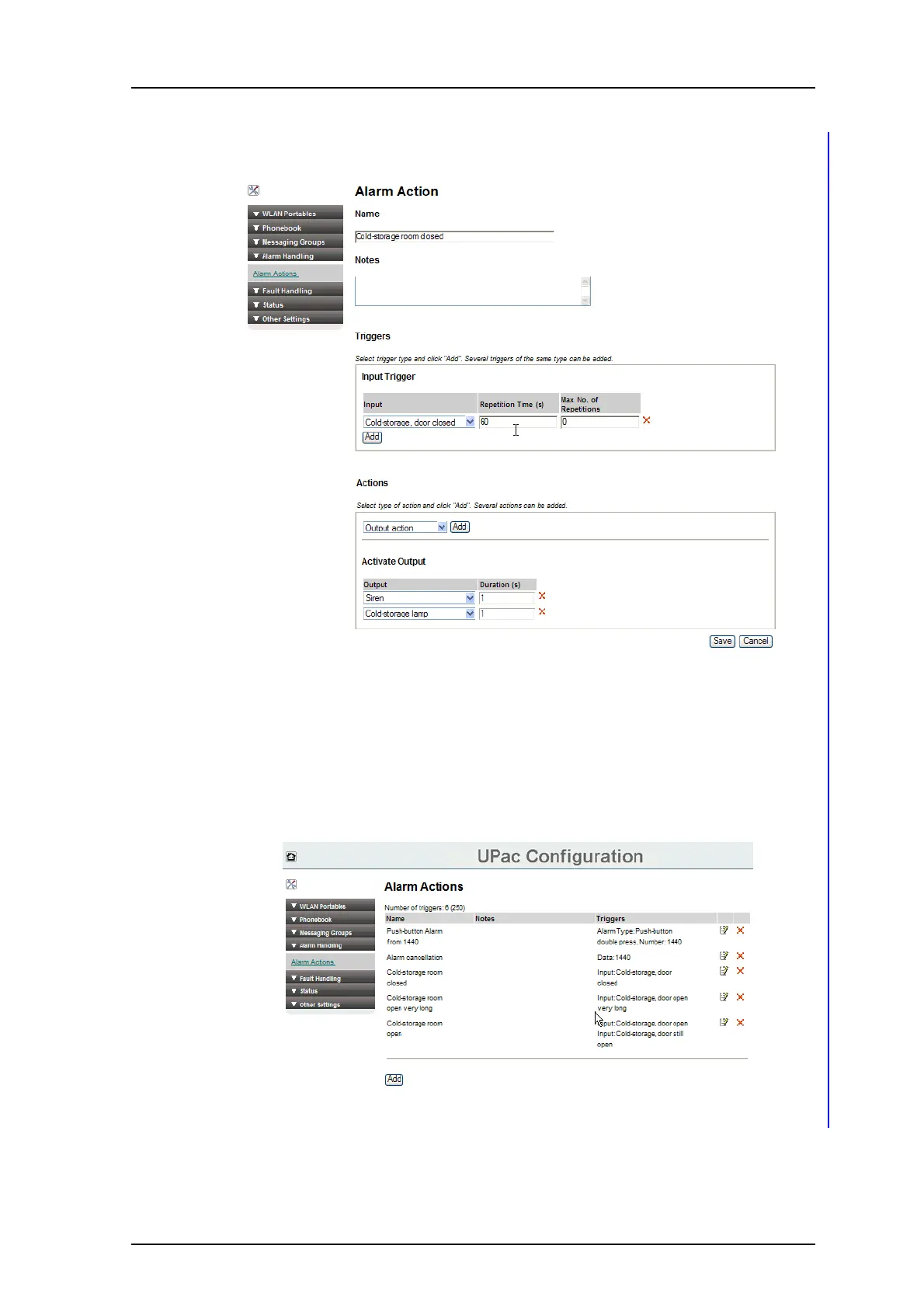

Figure 56. Cold-storage room door closed

For Input Trigger “Cold-storage, door closed”: When the door closes the actions are

started. The output is set to the initial state again (after 1 second).

Summary of alarm actions

This figure shows a list of the Alarm Action setup in the examples.

Figure 57. Summary of Alarm Actions

Figure 123.

Figure 124.

Default Chapter2
- Table of Contents2
1 Introduction6
- Abbreviation and Glossary6
- How to Use this Document7
- Included in Delivery8
- Technical Solution8
- Requirements8
2 Installation and Configuration9
- Cables and Adapters9
- Mounting9
- Connection of AUX Inputs and AUX Outputs11
- Error Relay Output11
- Function LED Indications12
- Information Required for the Setup12
- Accessing the UPAC13
  - Getting Started13
  - Connect Cables13
- Basic Configuration Steps14
- Optional Settings15
- Power down and Restart15
  - Power down15
  - Restart15
3 Authentication Levels and Default Passwords16
- UPAC Configuration Page16
4 Basic Configuration17
- Add Users17
- Create Groups18
- Configure the Phonebook19
- System Survey of Unite Modules21
- Input/Output Setup23
- Alarm Handling26
- Status32
- Backup the Configuration36
- Restore the Configuration36
5 Serial Interface37
- Serial Protocol Settings37
  - ESPA Protocol37
  - Ascom Line Protocol39
6 Remote Management40
7 Absence Handling in DECT42
- Absence List42
- Clear Absence List42
8 Base Station Conversion43
- Background43
- Configuration43
9 Open Access Protocol (OAP)43
10 System Supervision and Security44
- System Supervision44
- Fault Handling53
- Activity Logging58
11 SMS Via GSM Modem68
- Add GSM User to UPAC68
- Send Message from UPAC to GSM User69
- Send SMS from GSM Phone to a Handset in the System69
12 Language and User Interface70
- Customize the Language70
- Customize the User Interface (GUI)73
- Password Protected Access to Netpage80
- Test the New User Interface80
- Update the User Interface after a New UPAC Release80
13 Operation81
- Create and Send Messages81
- Predefined Messages81
  - Create a Predefined Message82
  - Edit a Predefined Message82
- Message History Status82
- My Groups83
  - Create Groups83
  - Editing Groups83
14 Troubleshooting84
- Built-In Tools in UPAC84
- Advanced Troubleshooting85
- What to Consider When Replacing a Module85
- Technical Support85
15 Related Documents86
16 Document History87
Appendix A: Used IP Ports88
Appendix B: RJ45 Connections89
- Cables for DCT1800 and DCT190089
- Cables for Businessphone89
- Cables for ESPA Protocol and the Ascom Line Protocol90
Appendix C: Fault Handling Configuration Example91
Appendix D: Alarm Action Configuration Examples93
Appendix E: Getting Started100
Appendix F: Protocol Limitations102
- ESPA Limitations102
- Limitations in the Ascom Line Protocol103
