12.1.3 Display and Control Layout

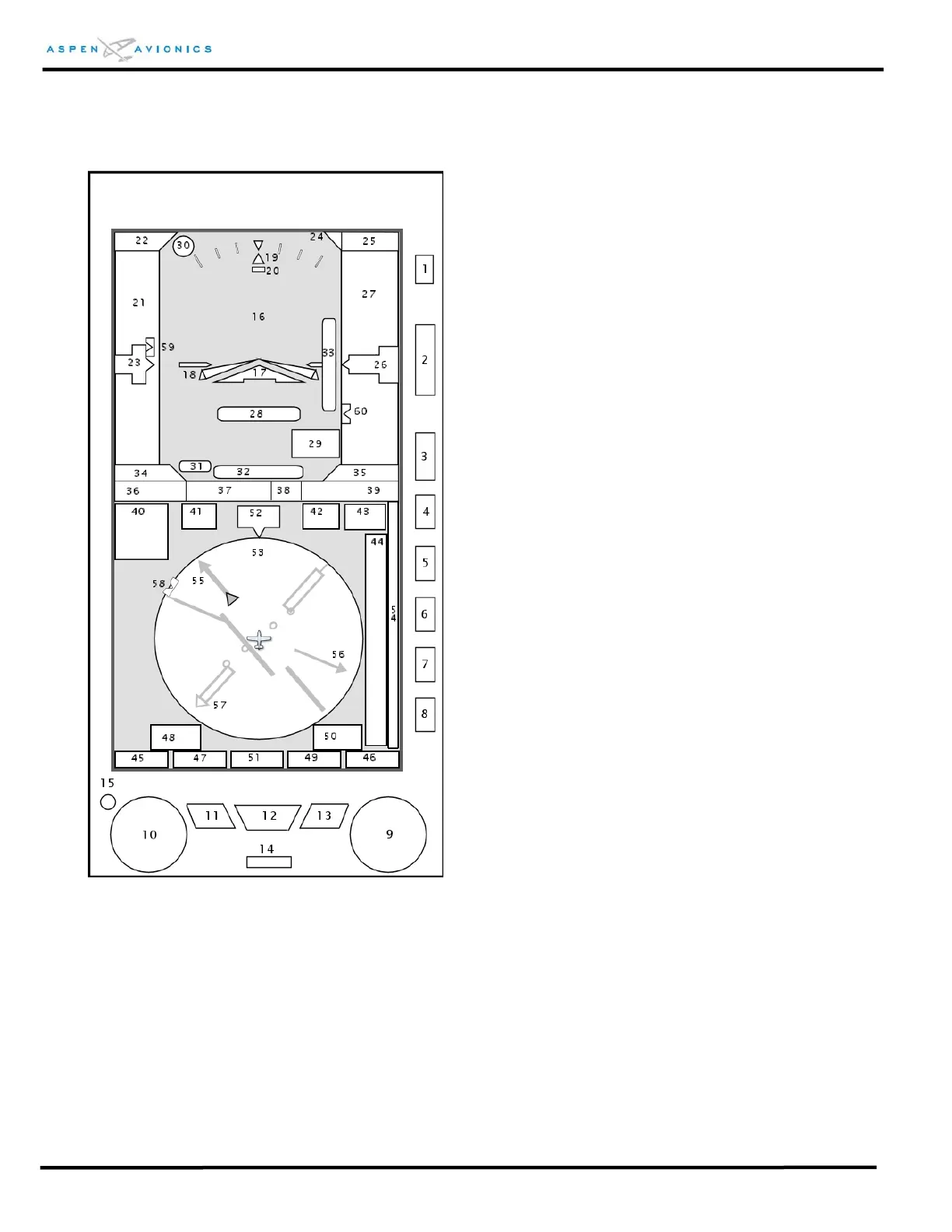

Figure 12.1 – Bezel and Display Features
1) Reversion Control
2) Range Control
3) Menu Control
4) “TPS” Tapes ON/OFF Control
5) “MIN” Minimums ON/OFF Control
6) “360/ARC” HSI View Control
7) “MAP” Map declutter logic Control
8) “GPSS” GPS Steering ON/OFF Control
9) Right Control Knob
10) Left Control Knob
11) Single-Line Bearing Pointer Source Select
12) CDI Source Control
13) Dual-Line Bearing Pointer Source Select
14) Micro SD Card slot
15) Automatic Dimming Photocell
16) Attitude Indicator
17) Aircraft Symbol
18) Single Cue Flight Director (optional
– compatible autopilot required)
19) Roll Pointer
20) Slip / Skid Indicator
21) Airspeed Indicator Tape
22) Selected Airspeed Field
23) Airspeed Drum/Pointer
24) Altitude Alert
25) Selected Altitude Field
26) Altitude Drum/Pointer
27) Altitude Tape
28) MINIMUMS annunciation
29) Selected Minimums Field
30) Decision Height “DH” Annunciation
31) LDI Navigation Source Indication
32) Lateral Deviation Indicator
33) Vertical Deviation Indicator
34) True Airspeed
35) Barometric Pressure Setting Field
36) Ground Speed
37) OAT
38) Wind Direction Arrow
39) Wind Direction and Speed
40) Selected Source Information Field
41 Selected Course (CRS)Field
42) Selected Heading Field
43) Vertical Speed Digital Value
44) Vertical Speed Tape
45) Left Control Knob state
46) Right Control Knob state
47) Single-Needle Bearing Pointer Source
48) Single-Needle Source Info Block
49) Dual-Needle Bearing Pointer Source
50) Dual-Needle Source Info Block
51) CDI Navigation Source
52) Magnetic Heading
53) Compass Scale
54) Hot Key legend
55) CRS Pointer
56) Single-Needle Bearing Pointer
57) Double-Needle Bearing Pointer
58) Heading Bug
59) Airspeed Bug
60) Altitude Bug
