Aspen Avionics EFD1000 - Configuration Module Pin Out; ACU Pin Out

EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 85-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
8.5 Configuration Module Pin Out
Pin Number Name Input / Output Function
1 Config_A - CM Connection
2 Config_B - CM Connection
3 Config_D - CM Connection
4 Config_C - CM Connection
5 Config_S - Shield Ground

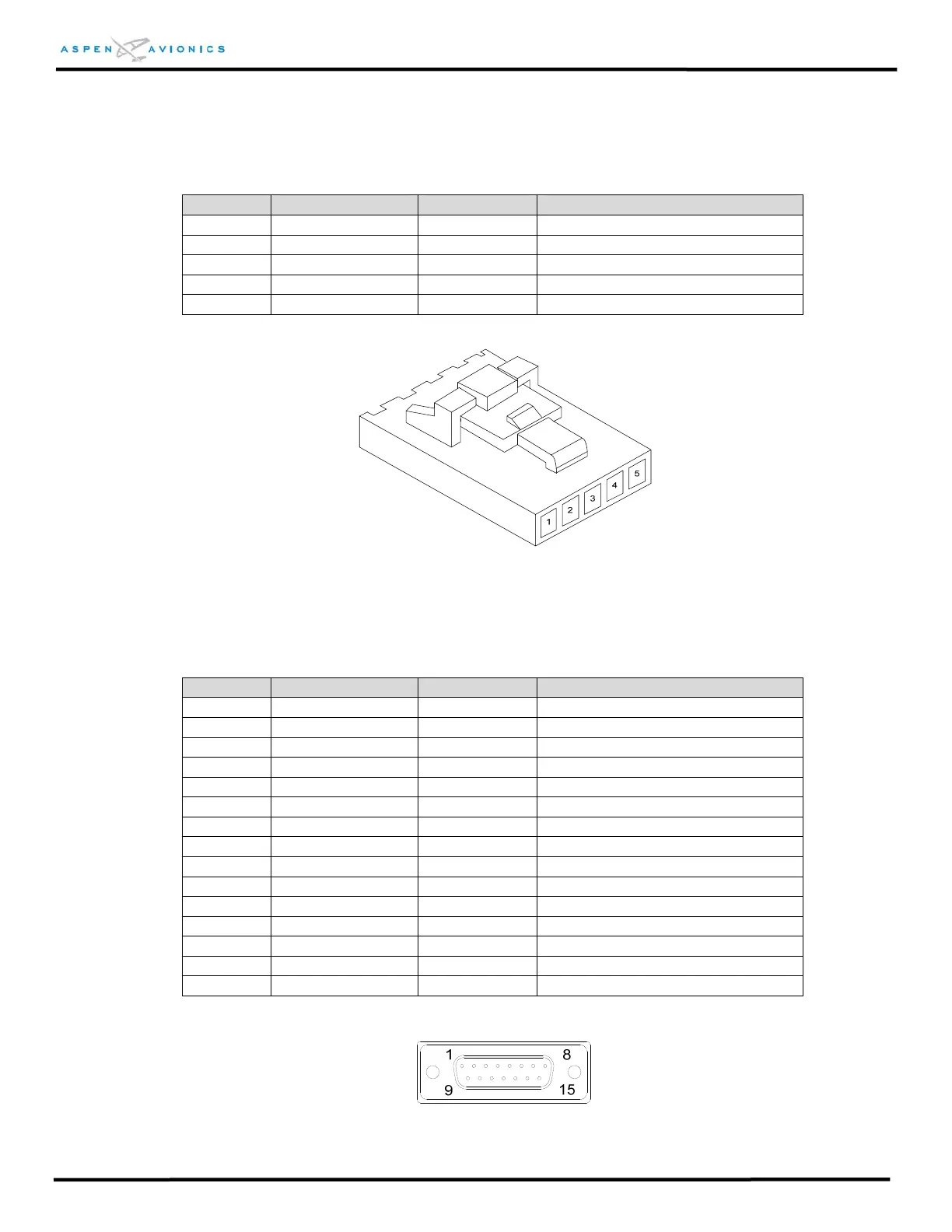

Figure 8.3 - Configuration Module Connector (Install side)
8.6 ACU Pin Out
Pin Number Name Input / Output Function
J1-1 429RX2A INPUT ARINC 429 Port 2 Receive A
J1-2 429RX2B INPUT ARINC 429 Port 2 Receive B
J1-3 PWR-COM - Power Common
J1-4 GPS+LT INPUT GPS Lateral Dev Input (-)
J1-5 GPS-LATFLG INPUT GPS Lateral Flag Input (-)
J1-6 GPS+DN INPUT GPS Vertical Dev Input (-)
J1-7 GPS+FR INPUT GPS TO/FROM Input
J1-8 GPS-VERTFLG INPUT GPS Vertical Dev Flag (-)
J1-9 Reserved - Reserved
J1-10 +11 to 32Vdc - Aircraft Primary Power
J1-11 GPS+RT INPUT GPS Lateral Dev Input (+)
J1-12 GPS+LATFLG INPUT GPS Lateral Flag Input (+)
J1-13 GPS+UP INPUT GPS Vertical Dev Input (+)
J1-14 GPS+TO INPUT GPS TO/FROM Input
J1-15 GPS+VERTFLG INPUT GPS Vertical Flag (+)
Figure 8.4 - J1 Connector (as viewed from front of unit)
