EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 25-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
4 Supported Installed Configurations
The following diagrams show the different options for integrating with existing avionics in the
installed fleet. Most common digital VLOC radios (such as the Garmin 4xx/5xx series), and
“analog” VLOC radios are supported. The following diagrams show common installation
configurations, but do not represent all possible combinations.
4.1 Pilot Configurations
The following configurations show a basic Pilot installation. The Pilot model does not support
the display of VLOC or GPS navigation deviation, only the GPS flight plan and position is
received and displayed. The Pilot model does not support the ACU and therefore autopilot
interfaces are not available.

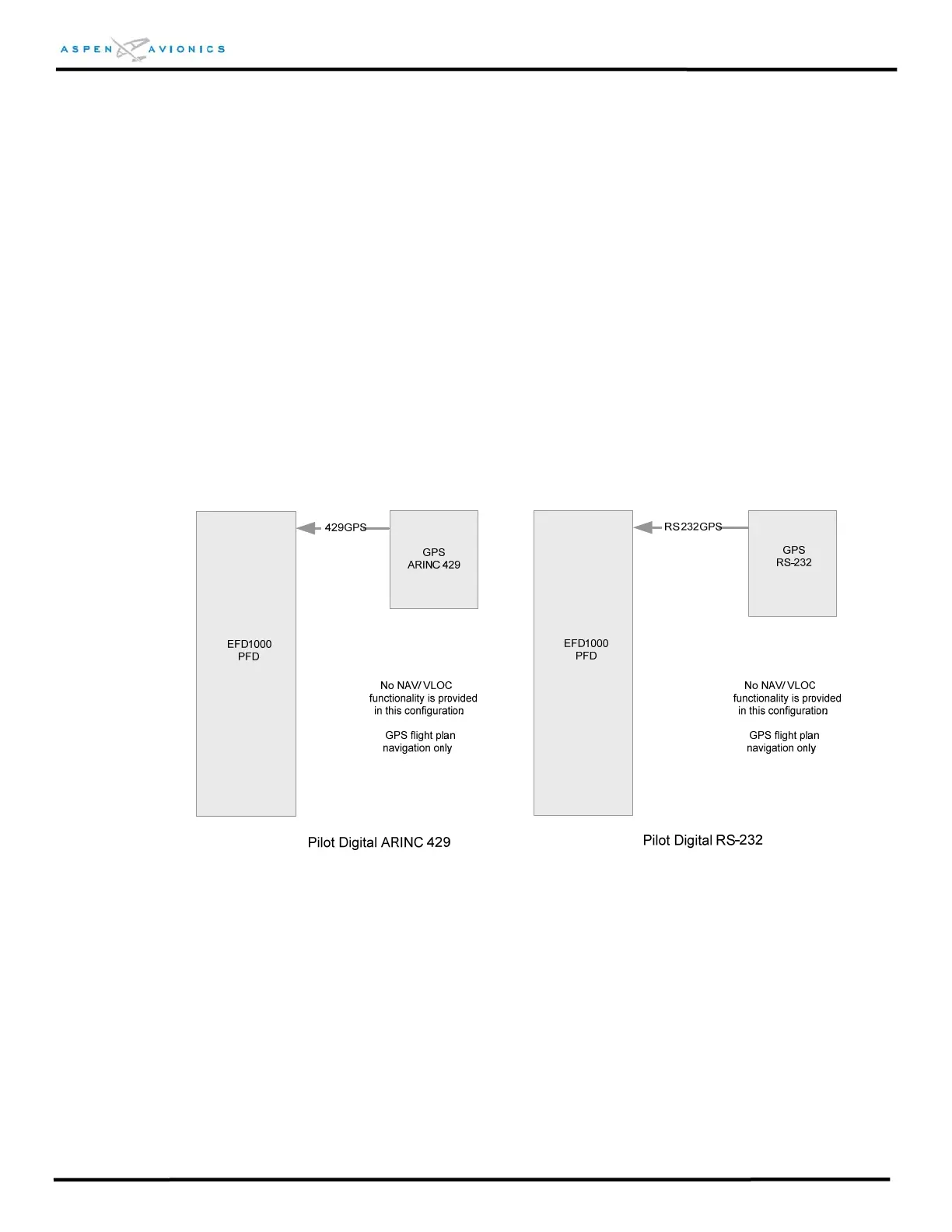

Figure 4.1 - Pilot Configurations
