EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 18-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
Max Humidity ............................ 95% at 50°C
Input Voltage............................. Provided by PFD
Nominal Current........................ Included in PFD Current
2.2.3 I/O Specifications:
Magnetometer ........................... Proprietary Digital
OAT........................................... Proprietary Digital
GPS ........................................... Proprietary Digital
2.2.4 Certification Specifications:
The RSM is certified as a component of the EFD1000 system
Environmental:
RTCA DO-160E.......................... See Environmental Qualification Form Section 13
2.2.5 Outline Drawing:

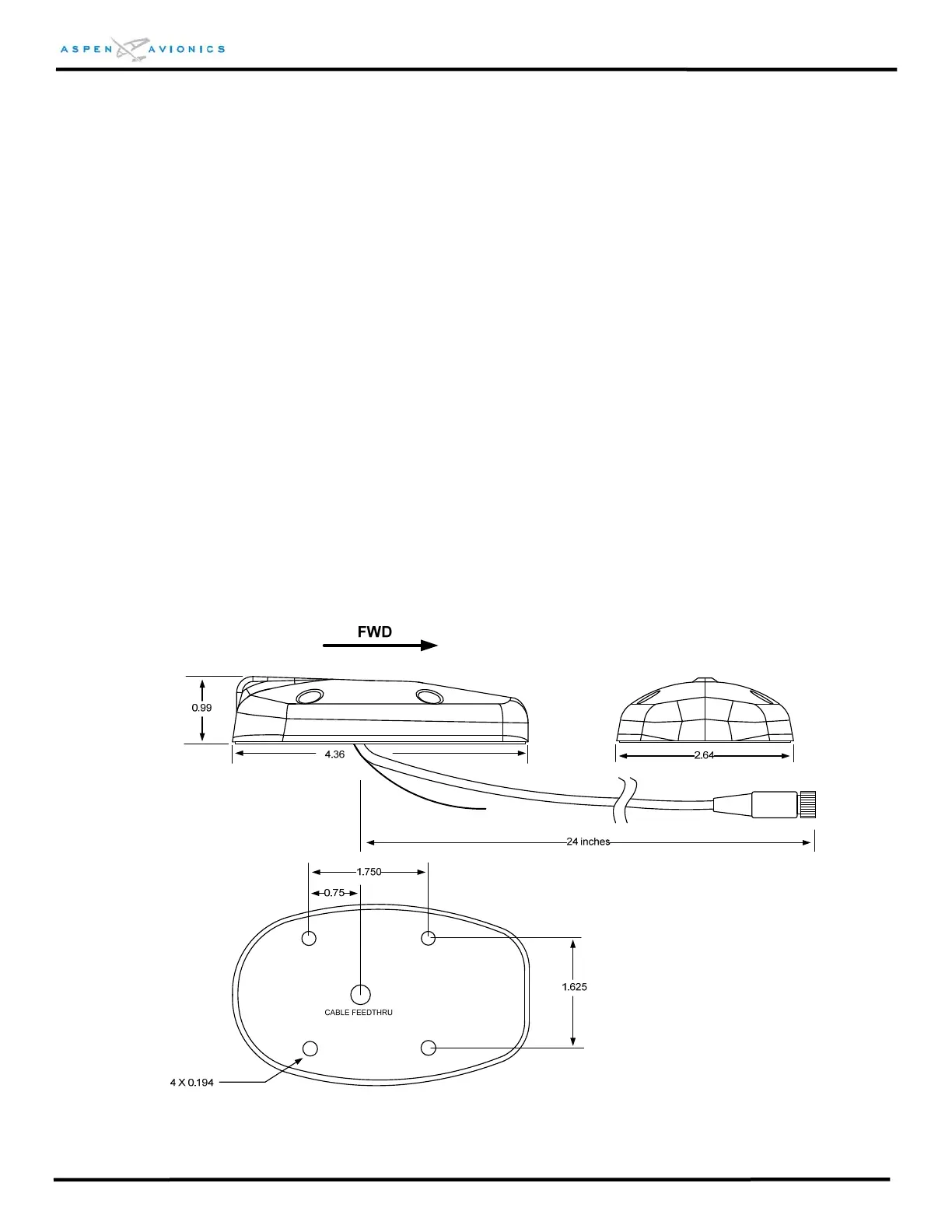

Figure 2.2 - RSM Outline Drawing (inches)
