EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 64-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
6.10 ACU Installation
The ACU has no user interface, and therefore can be remote mounted. The optimum
mounting location is an area that minimizes wire runs to interfacing equipment. This typically
means near the autopilot computer if installed.
When mounting the ACU find a location in the aircraft of known load carrying capabilities such
as:
• Existing Avionics Shelf
• Baggage compartment
• Radio Rack
• Cockpit Floor

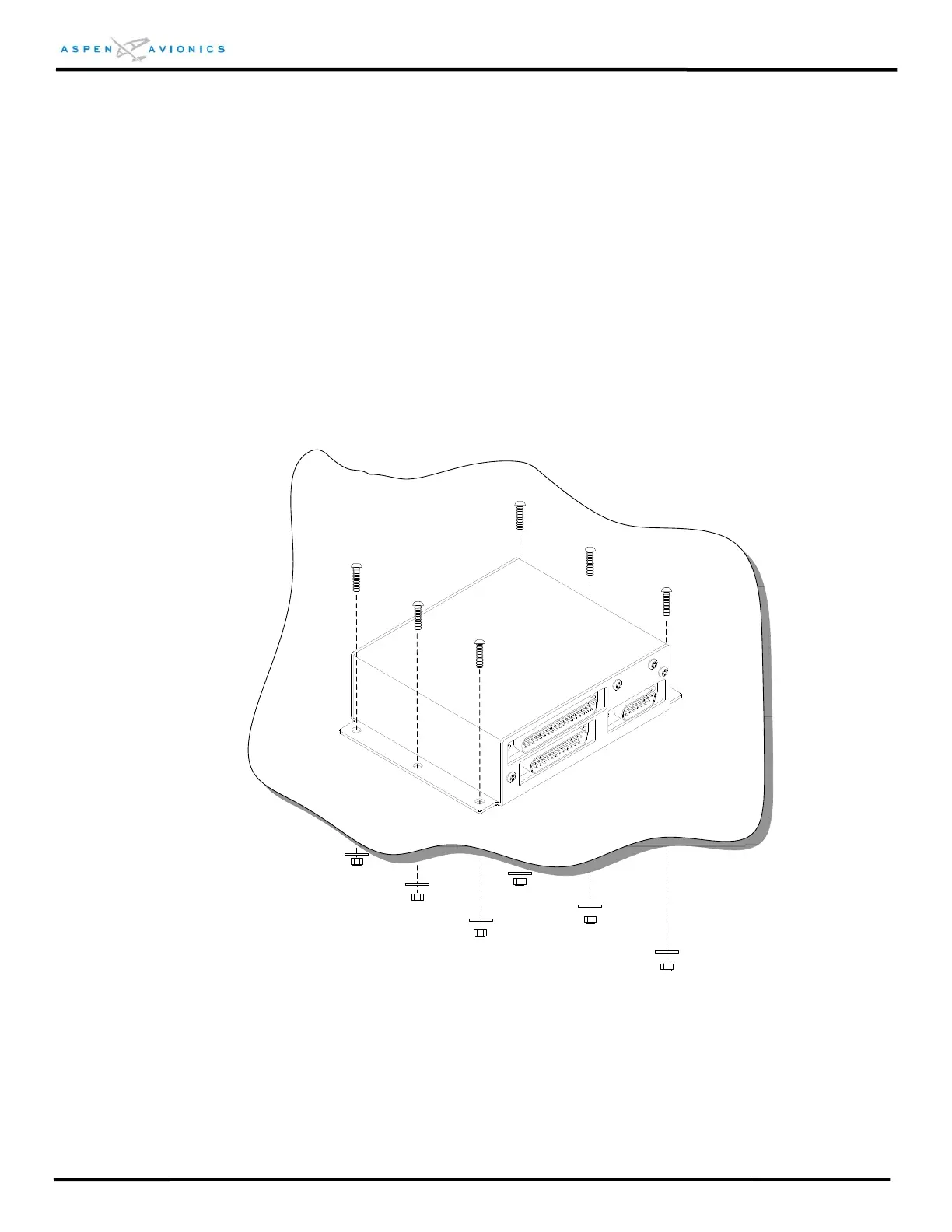

Figure 6.18 – ACU Mount to Flat Metal Shelf
6.10.1 ACU Mounting
Mount ACU to existing shelf in any orientation using six (6) MS3506-X #6-32 screws,
six (6) NAS1149FN632P washers, and six (6) MS21044N06 #6-32 self locking nuts or
equivalent. Tighten nuts to 12 in-lbs.
