3.5 System Architecture
The system architecture in Figure 3.2 shows the relationships of the PFD, RSM, Configuration
Module and ACU.

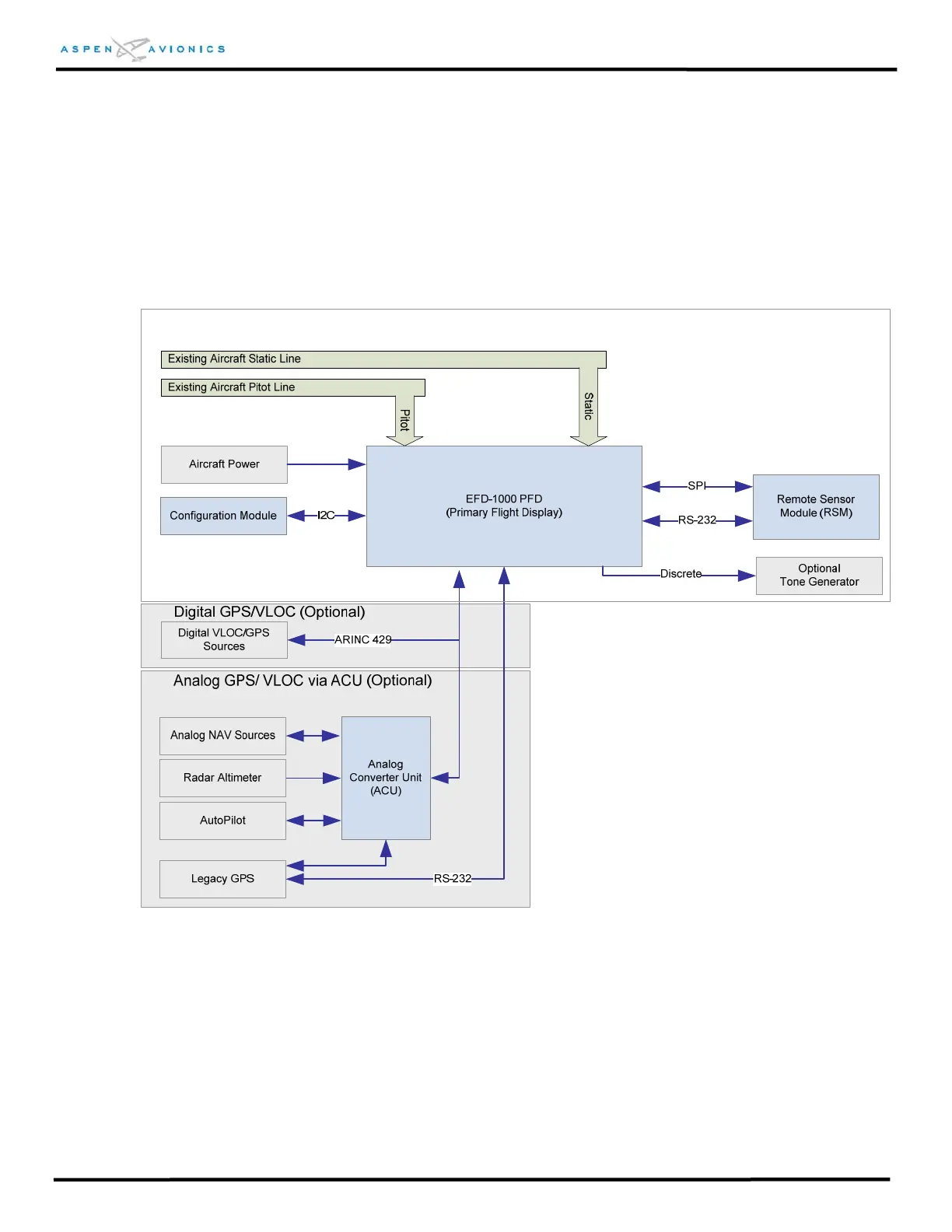

Figure 3.2 - EFD1000 System Architecture
