EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 27-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
4.3 Pro Configurations with Autopilot
The following configurations show Pro installations with autopilot integration, but without
analog VLOC interfaces. A backup Navigation indicator is required in installations that do not
have an integral CDI display on the GPS receiver or VLOC receiver. There must be one
navigation indicator available to the pilot in the event of a PFD or ACU failure.

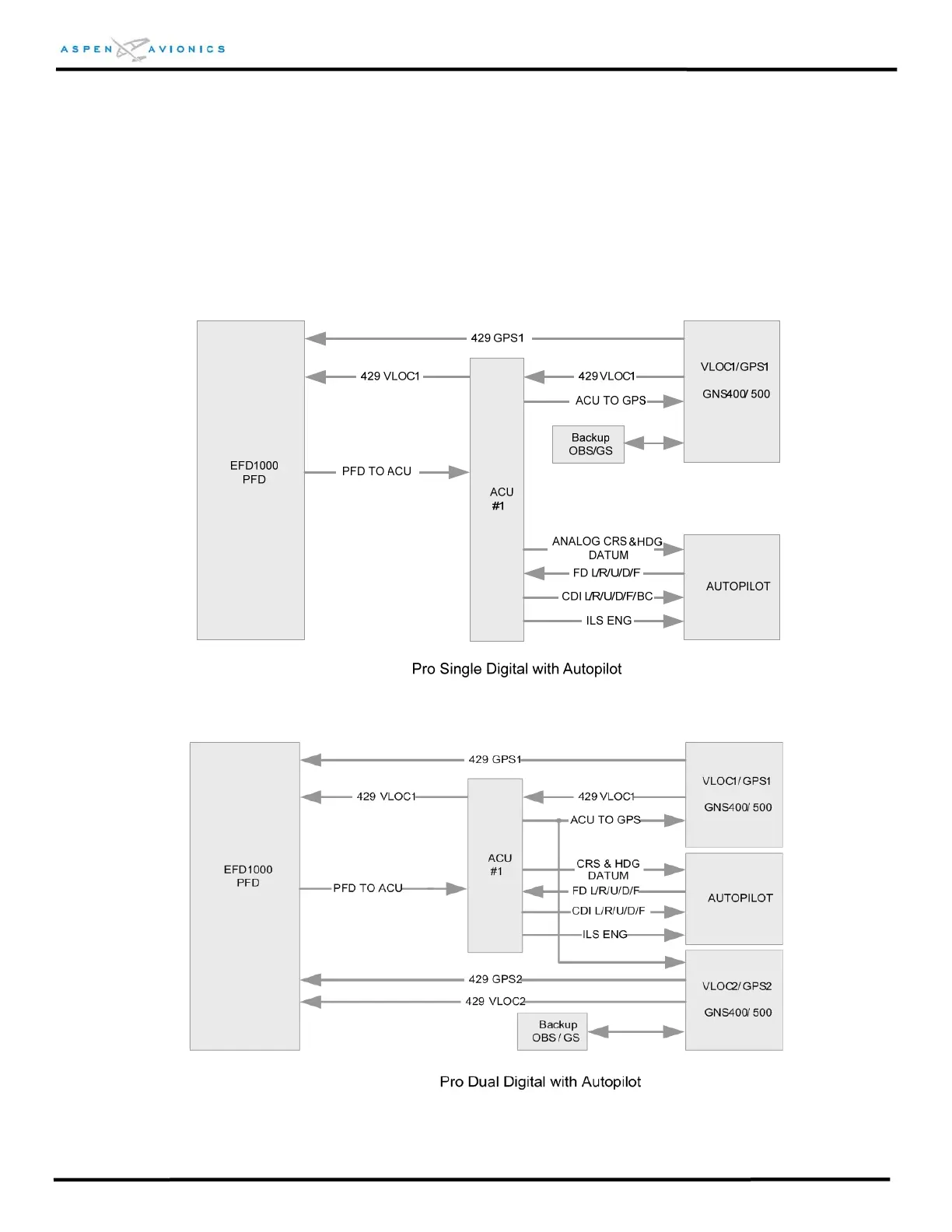

Figure 4.3 – Pro Configurations with Autopilot
