EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 29-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
4.5 Pro Configuration with Autopilot and Dual Analog VLOC
The following configuration shows a Pro installation with autopilot integration and dual analog
VLOC interfaces. Two ACUs are required for this installation. A backup Navigation indicator is
required in installations that do not have an integral CDI display on the GPS receiver or VLOC
receiver. There must be one navigation indicator available to the pilot in the event of a PFD or
ACU failure.

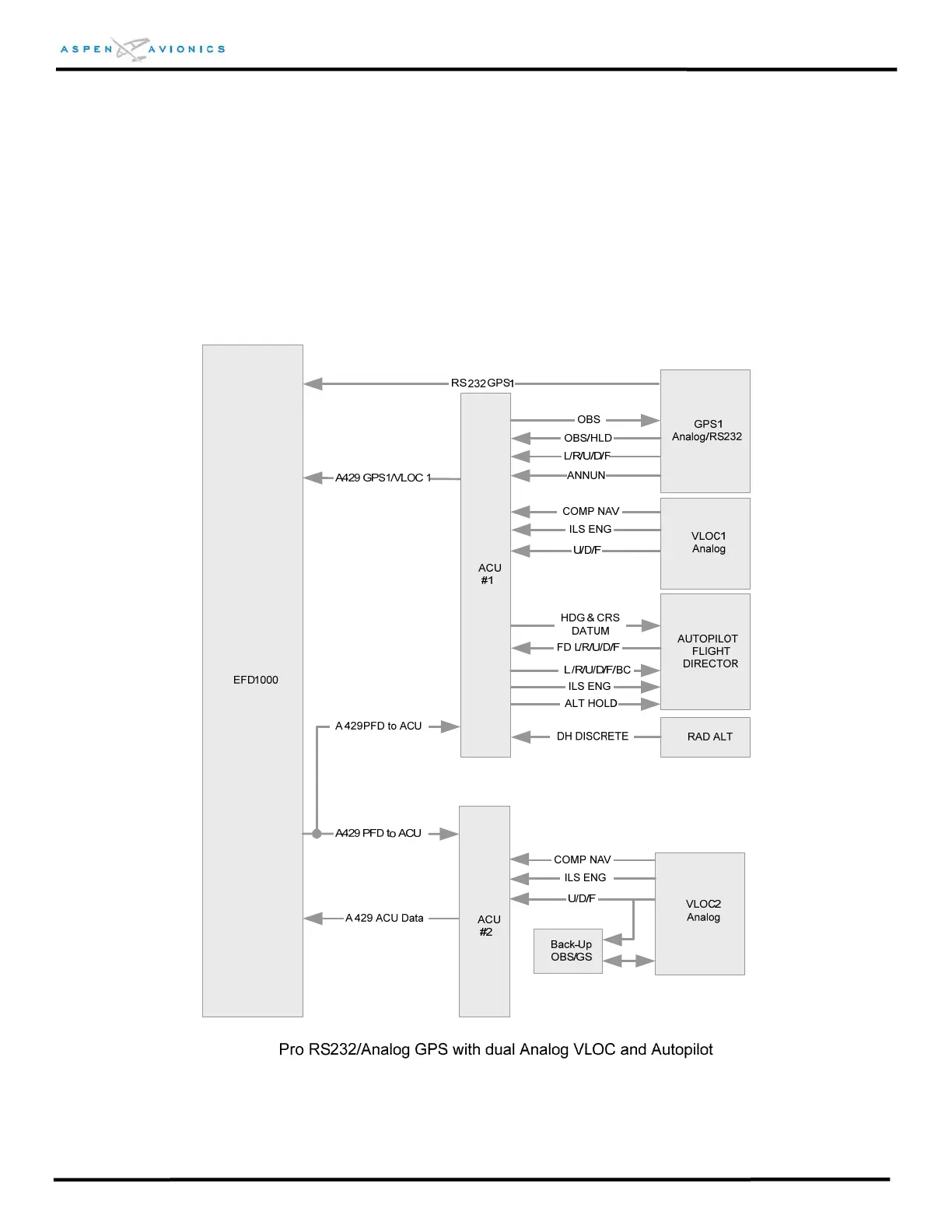

Figure 4.5 - Pro Configuration with AP and Dual VLOC
