Aspen Avionics EFD1000 - Remote Sensor Unit (RSM)

EFD1000 Installation Manual
DOCUMENT # A-01-126-00 PAGE 17-225 Revision H
© Copyright 2009 Aspen Avionics Inc.
2.1.6 Outline Drawing:

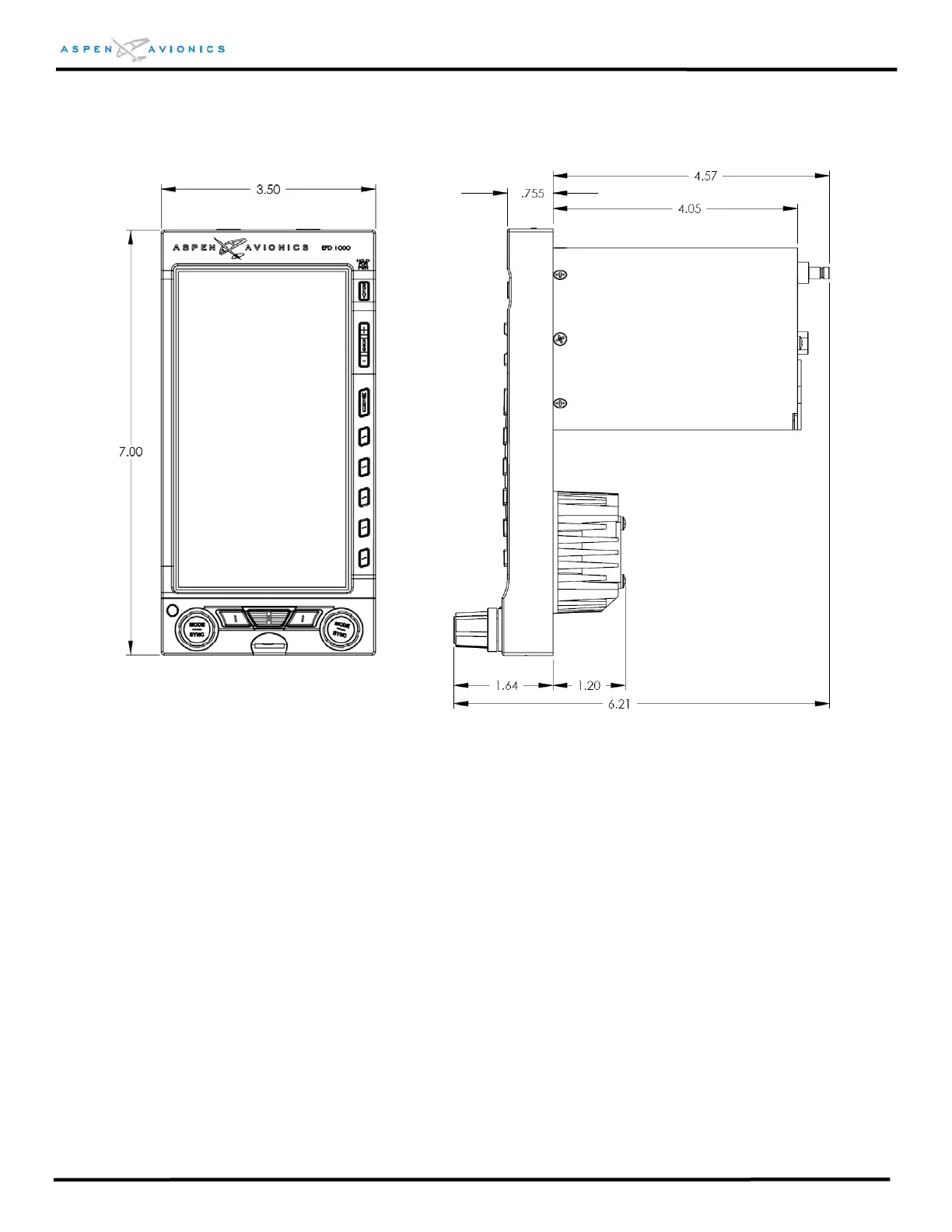

Figure 2.1 - PFD Outline Drawing (inches)
2.2 Remote Sensor Unit (RSM):
2.2.1 General Specifications
Part Number .............................. A-05-111-00
Width ........................................ 2.65 in. (Measured at Base)
Height ....................................... 1.00 in. (Measured from Base)
Length....................................... 4.40 in. (Front to Rear)
Weight....................................... 0.2 lbs
2.2.2 Operational Specifications:
Operating Temp ....................... -55°C to +70°C
Storage Temp ........................... -55°C to +85°C
Max Operating Altitude.............. 55,000 ft Unpressurized
Cooling ..................................... None Required
