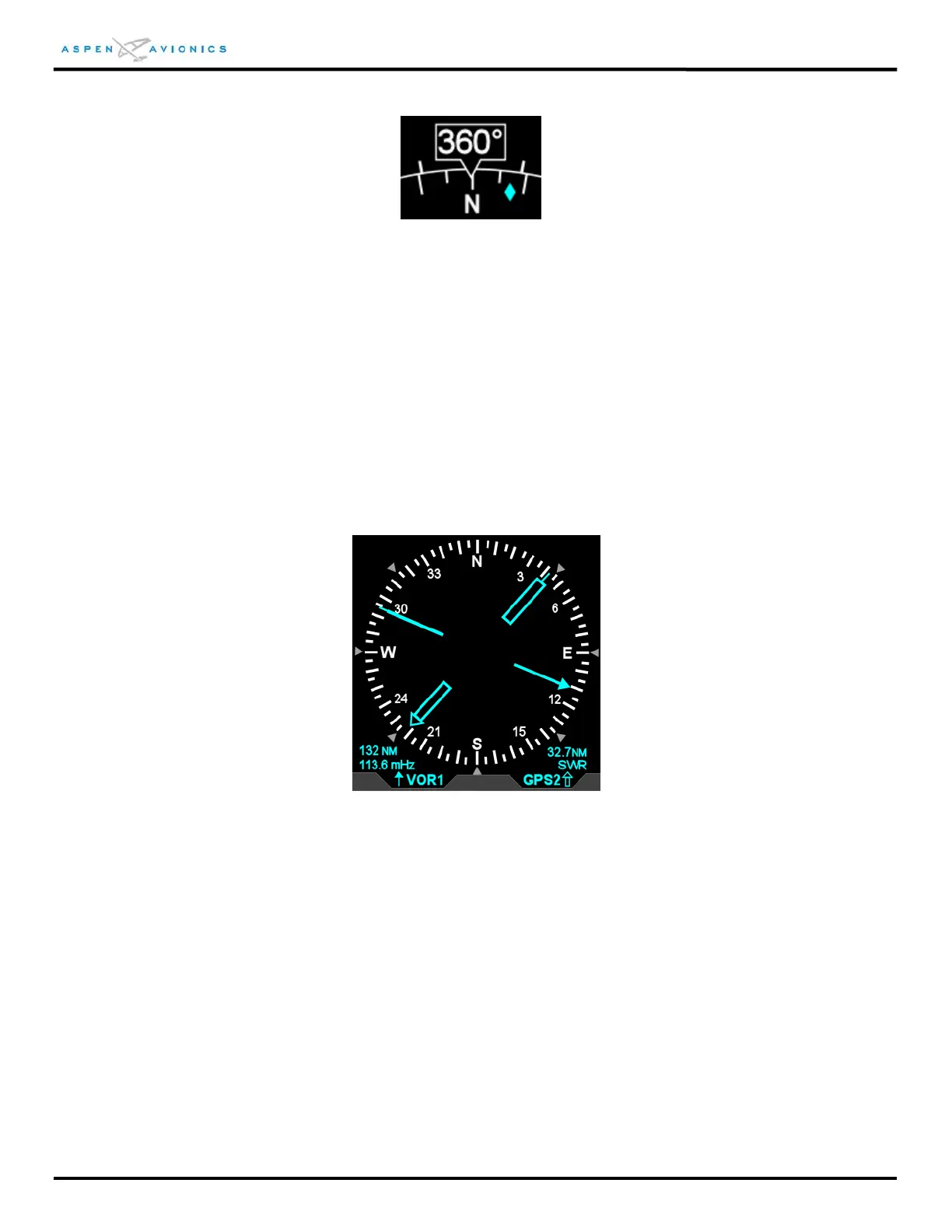

Figure 12.28 – GPS Track Diamond
12.9.8 Bearing Pointers
General
Two bearing pointers that show the radial of a VOR station or the bearing to a GPS
waypoint are provided. Bearing Pointers are only available in the 360 Compass mode.
Any available navigation source may be connected to either bearing pointer. If
connected to a source that does not provide angular bearing data, such as a localizer,
the bearing pointer is not presented and the source is flagged as invalid.
Figure 12.29 – Bearing Pointers
Bearing Pointer Source Information Block
Each bearing pointer has an associated source information block that displays
information about the source of bearing pointer data (when available). Information that
can be displayed includes distance to station and either the station identifier or the
tuned frequency.
12.10 Situational Awareness Map Display
Basemap
The basemap presents map symbols for nearby navaids, intersections, airports, GPS
flight plan waypoints, including curved and straight flight legs. Basemap data is
presented whenever the EFD1000 system is connected to a compatible GPS system. The
