4.4 Pro Configuration with Autopilot and Digital/Analog VLOC
The following configuration shows a Pro installation with autopilot integration, a single digital
VLOC/GPS, a single analog VLOC, and a single RS-232/ analog GPS. A backup Navigation
indicator is required in installations that do not have an integral CDI display on the GPS
receiver or VLOC receiver. There must be one navigation indicator available to the pilot in the
event of a PFD or ACU failure.

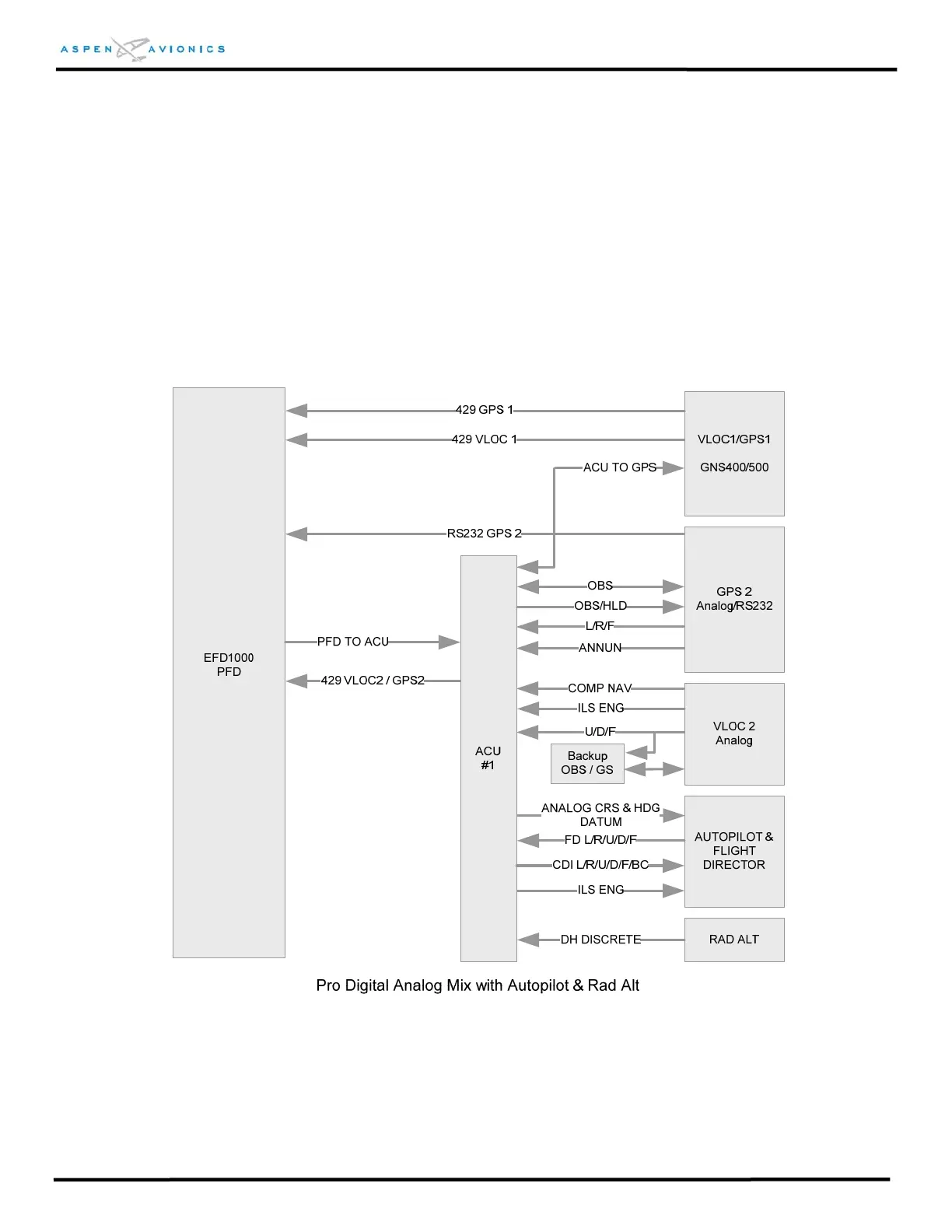

Figure 4.4 - Pro Configuration with AP and VLOC
